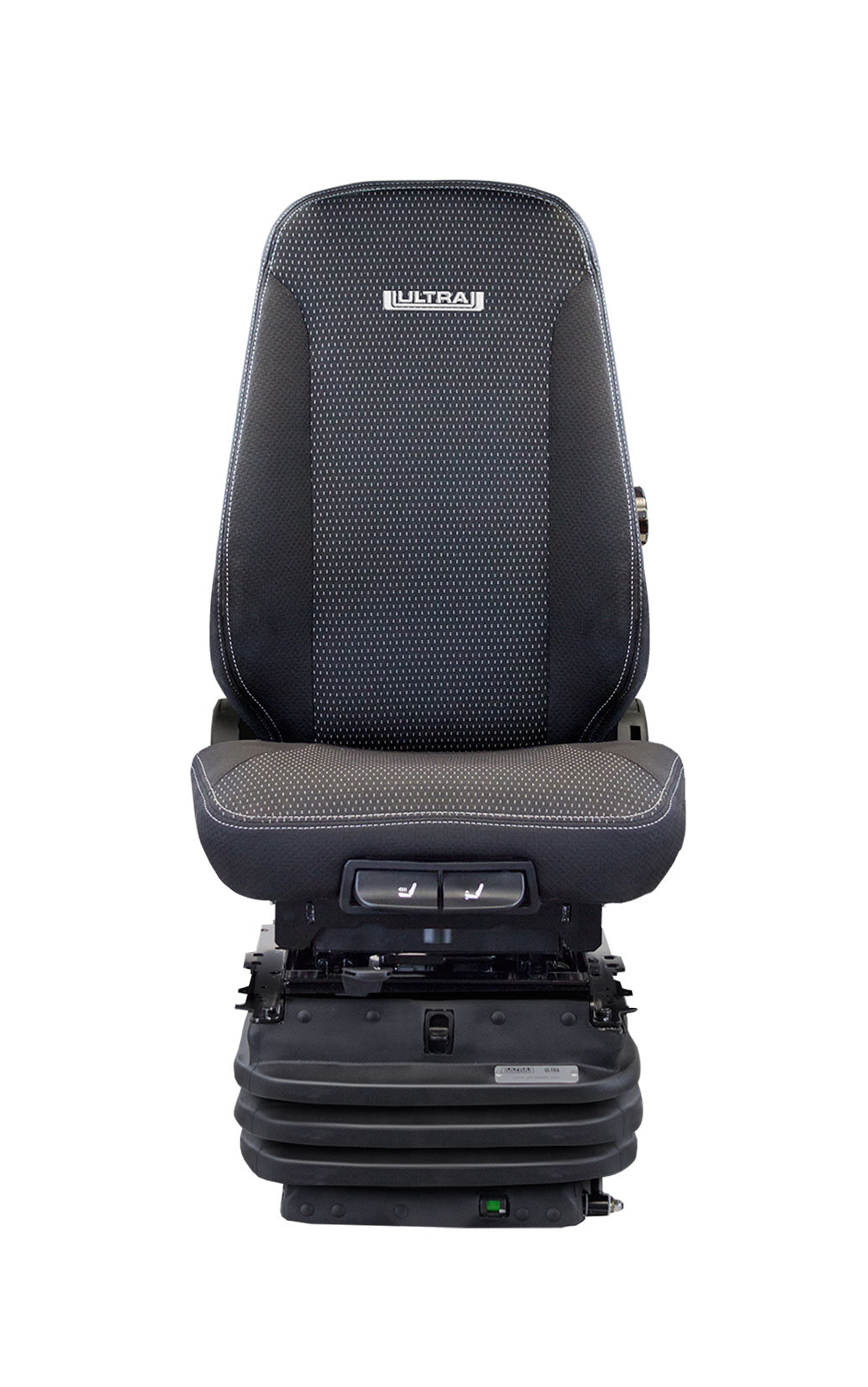

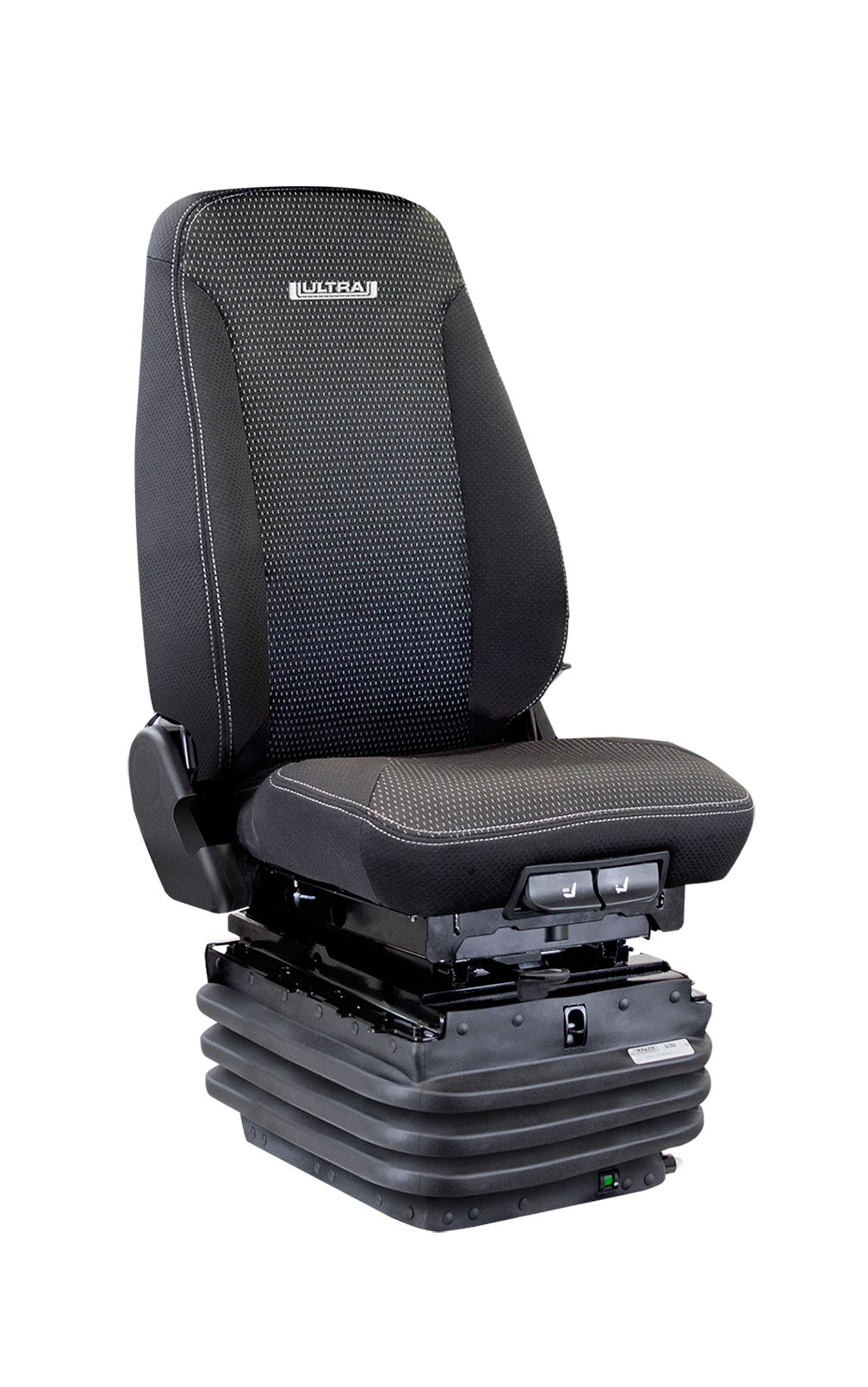

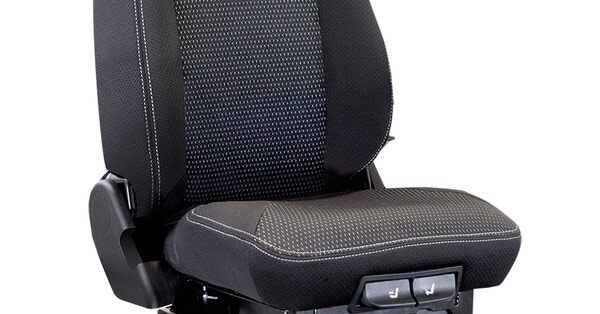

J978CHD Air Suspension Seat

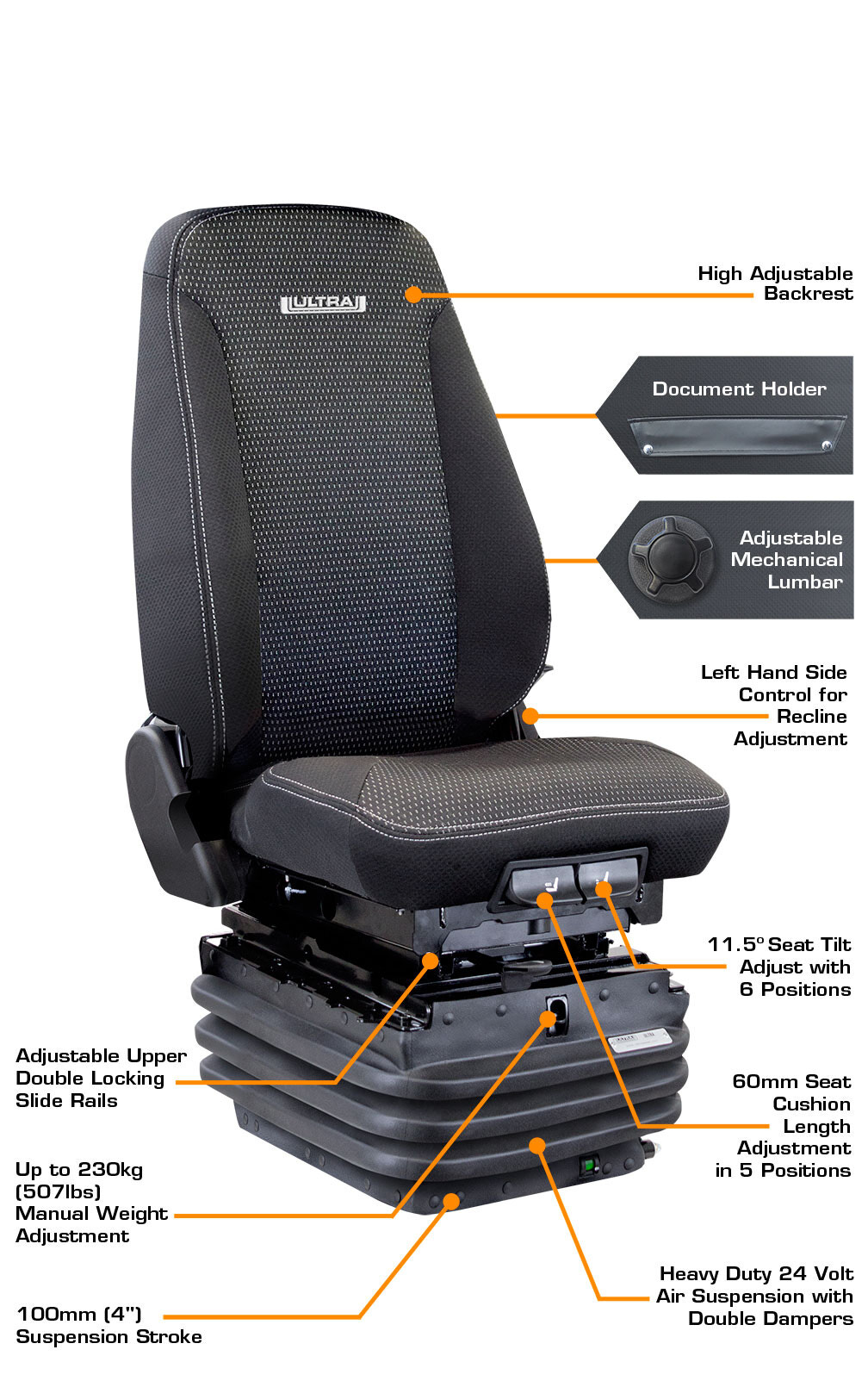

Features
- High Adjustable Backrest
- Left-hand side Control for Recline Adjustment
- Adjustable Mechanical Lumbar
- Document Holder
- 11.5° Seat Tilt Adjustment in 6 Positions
- 60mm Seat Cushion Length Adjustment in 5 Positions

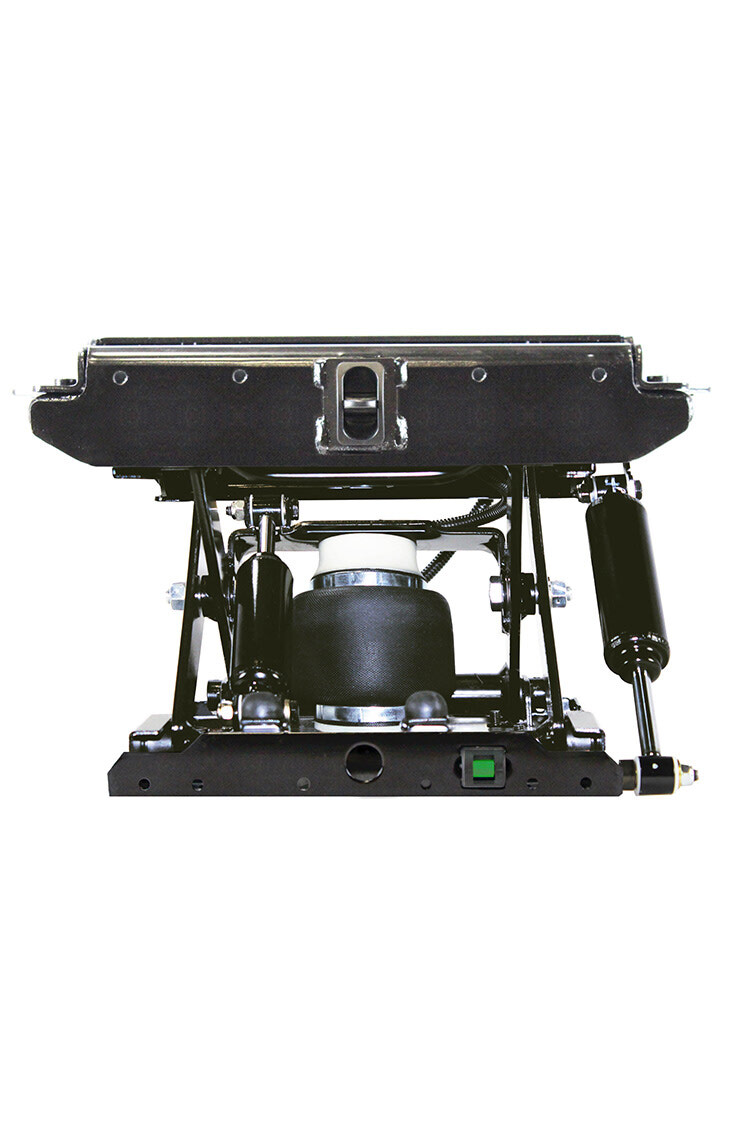

- Heavy Duty 24 Volt Air Suspension with Double Dampers
- Up to 230kg (507lbs) Manual Weight Adjustment
- 100mm (4") Suspension Stroke
- Adjustable Upper Double Locking Slide Rails

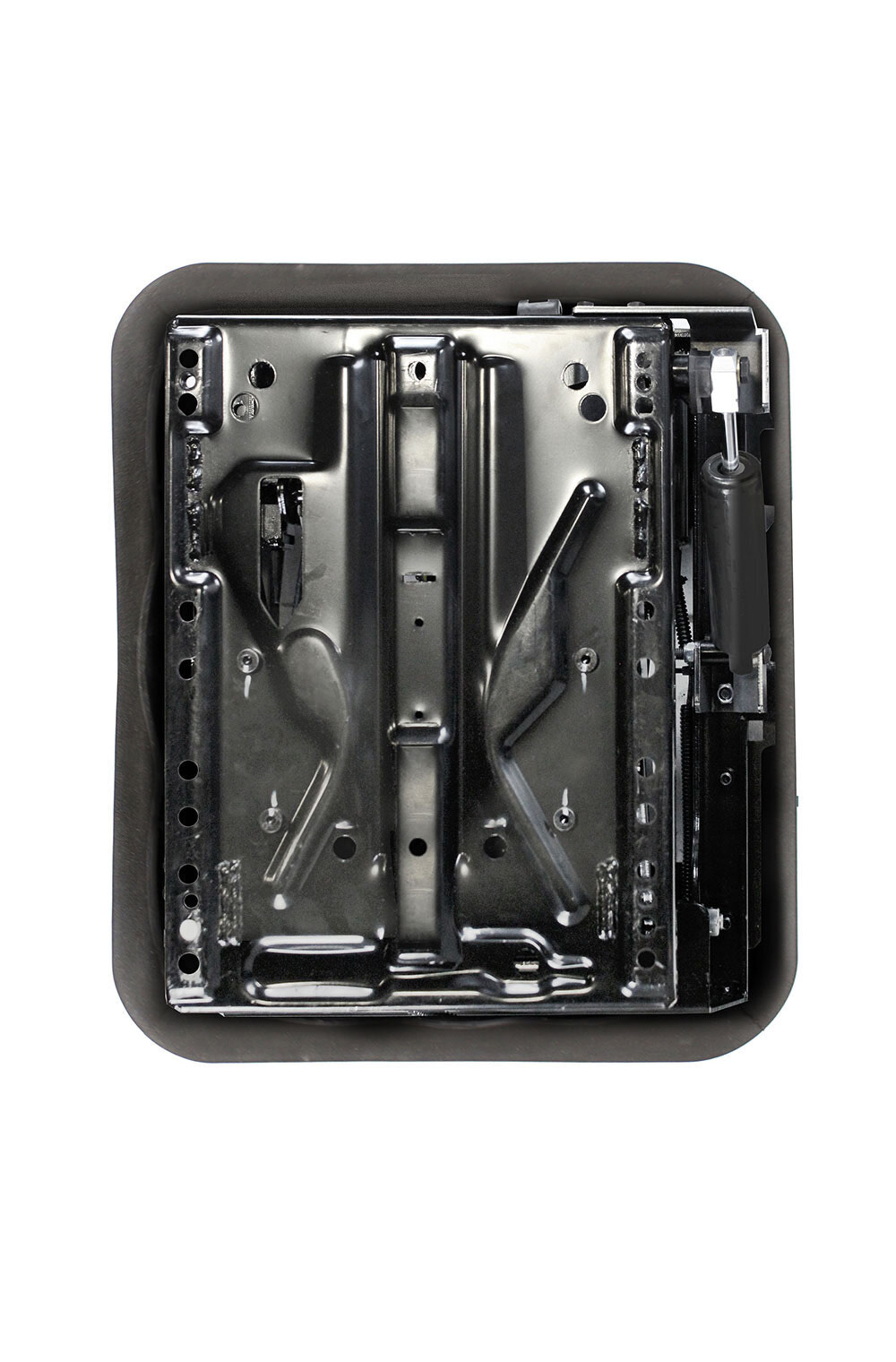

Bolt Pattern
- 260mm (10.25”) Side to Side
- Front to Back (Various, See Bolt Pattern Download)

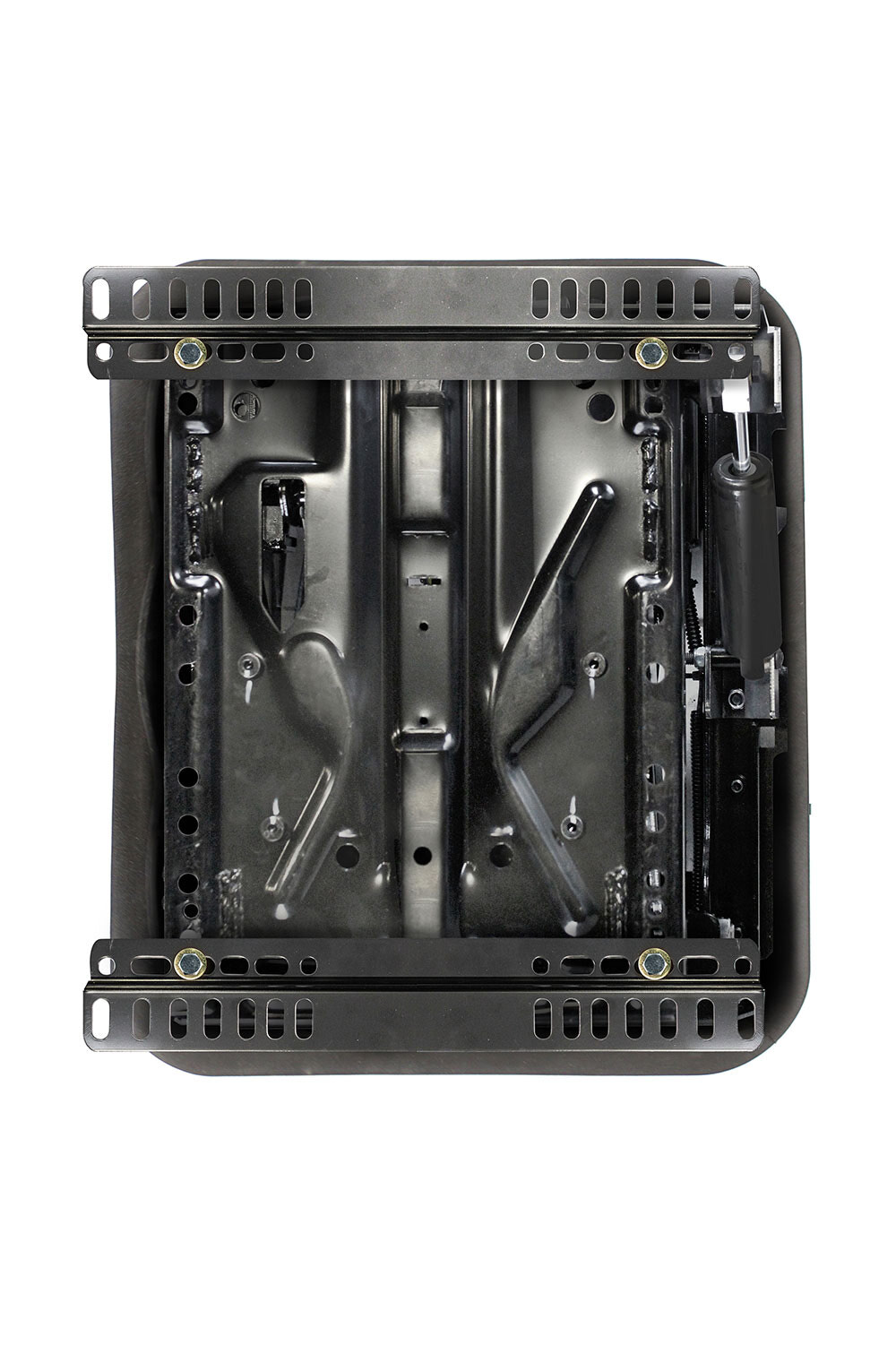

- Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)
Industry Standards
-
Operator Seat Vibration: ISO 7096
-
Flammability: FMVSS 302
