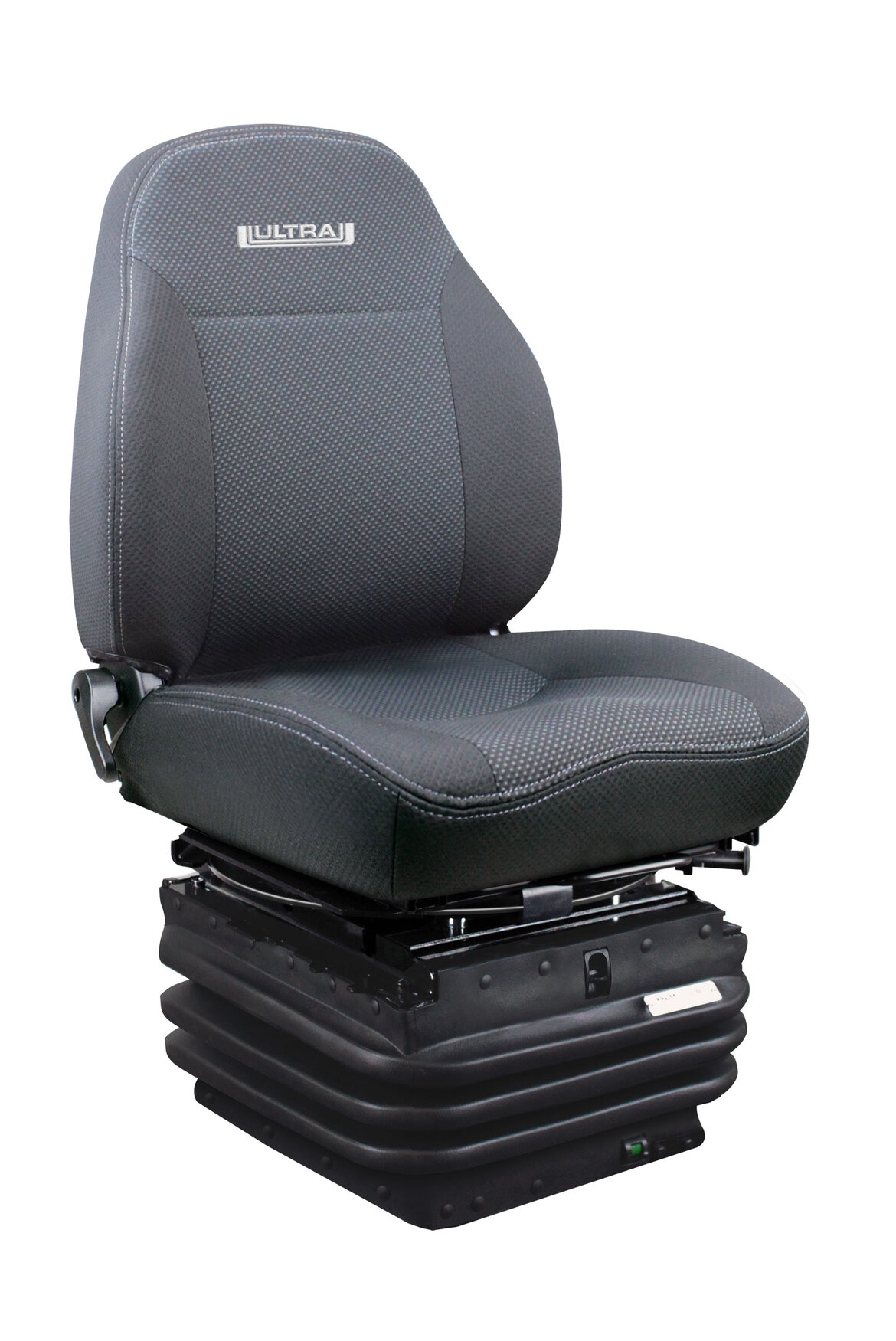

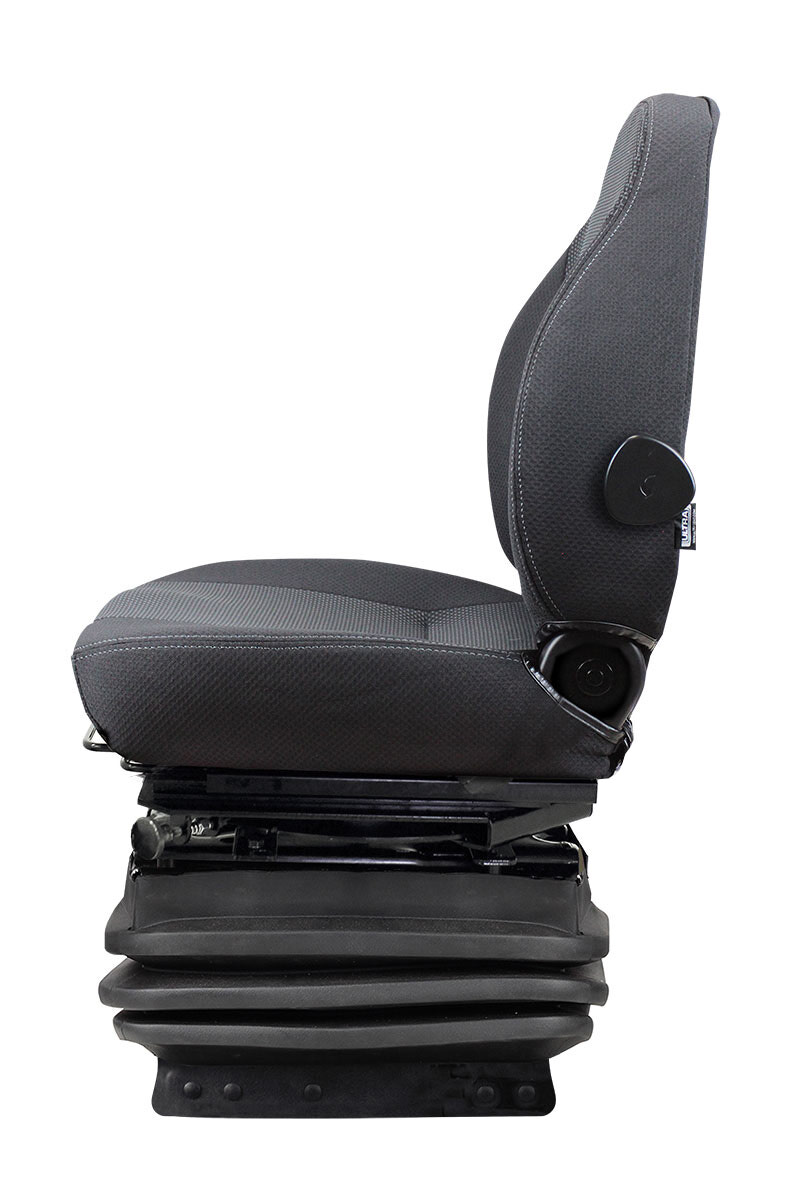

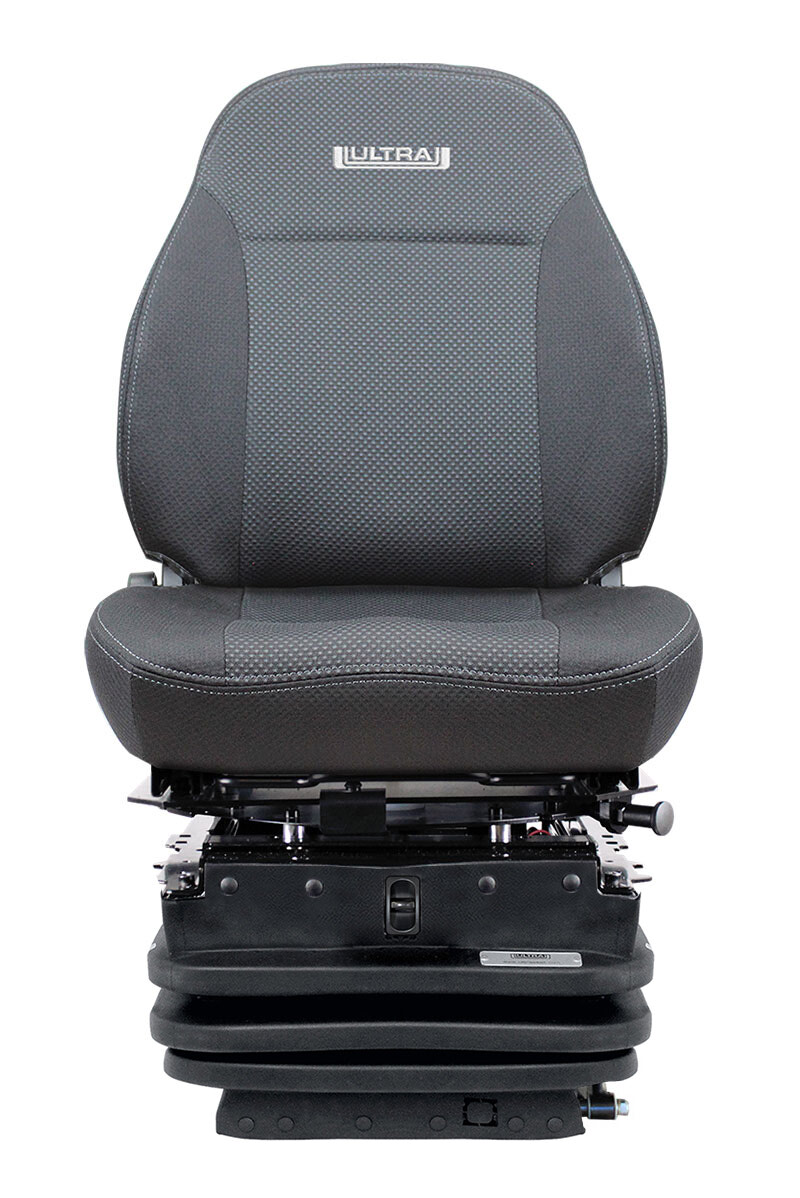

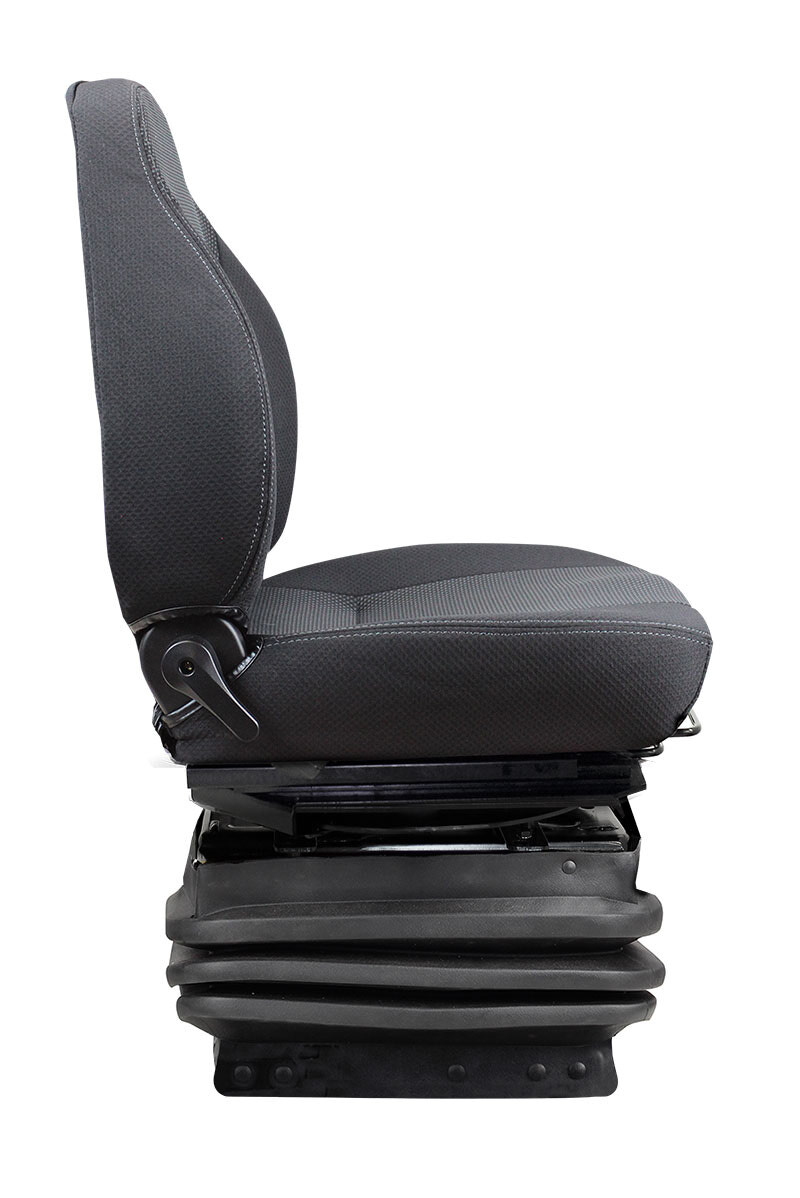

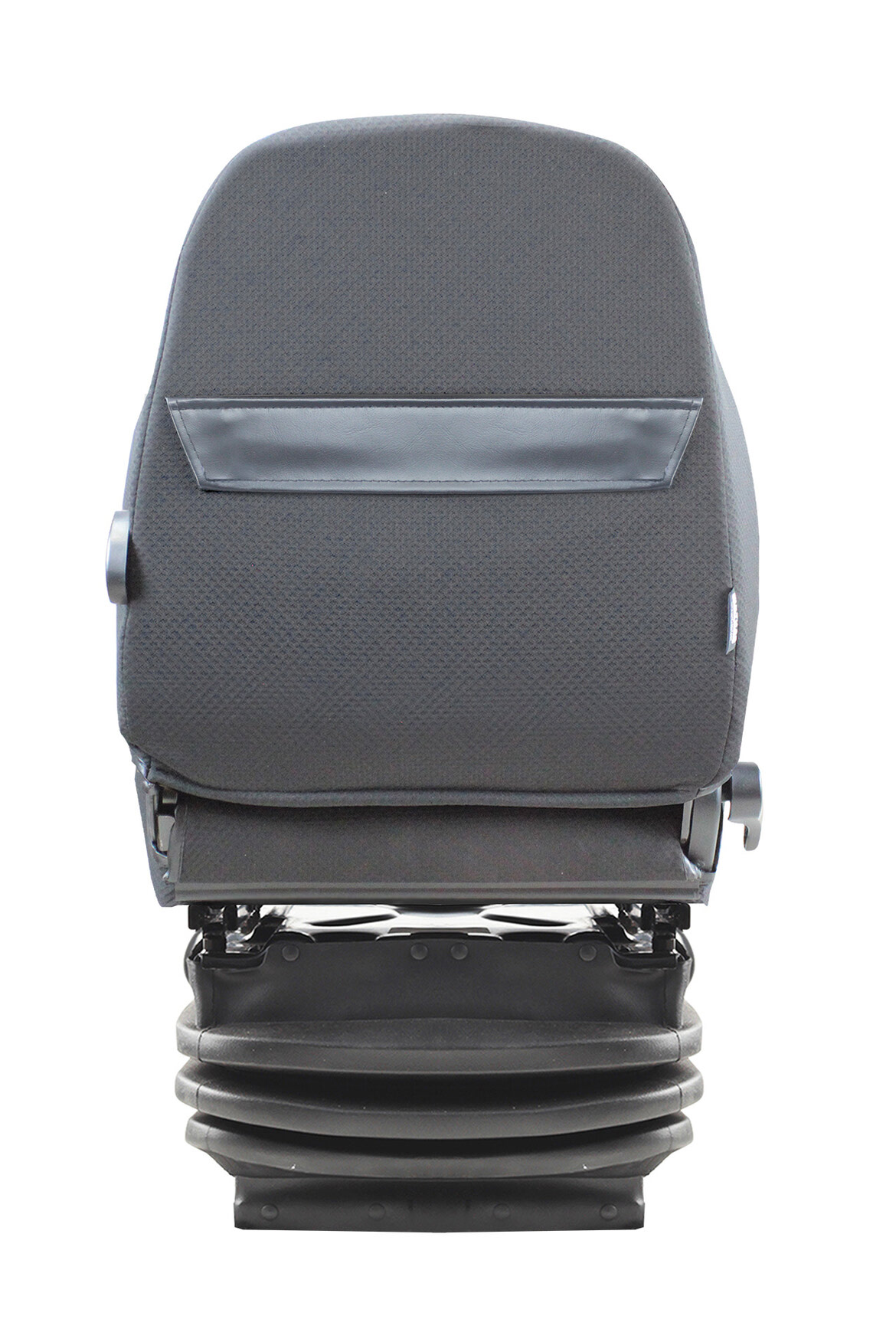

T778CHDS Air Suspension Seat with Swivel

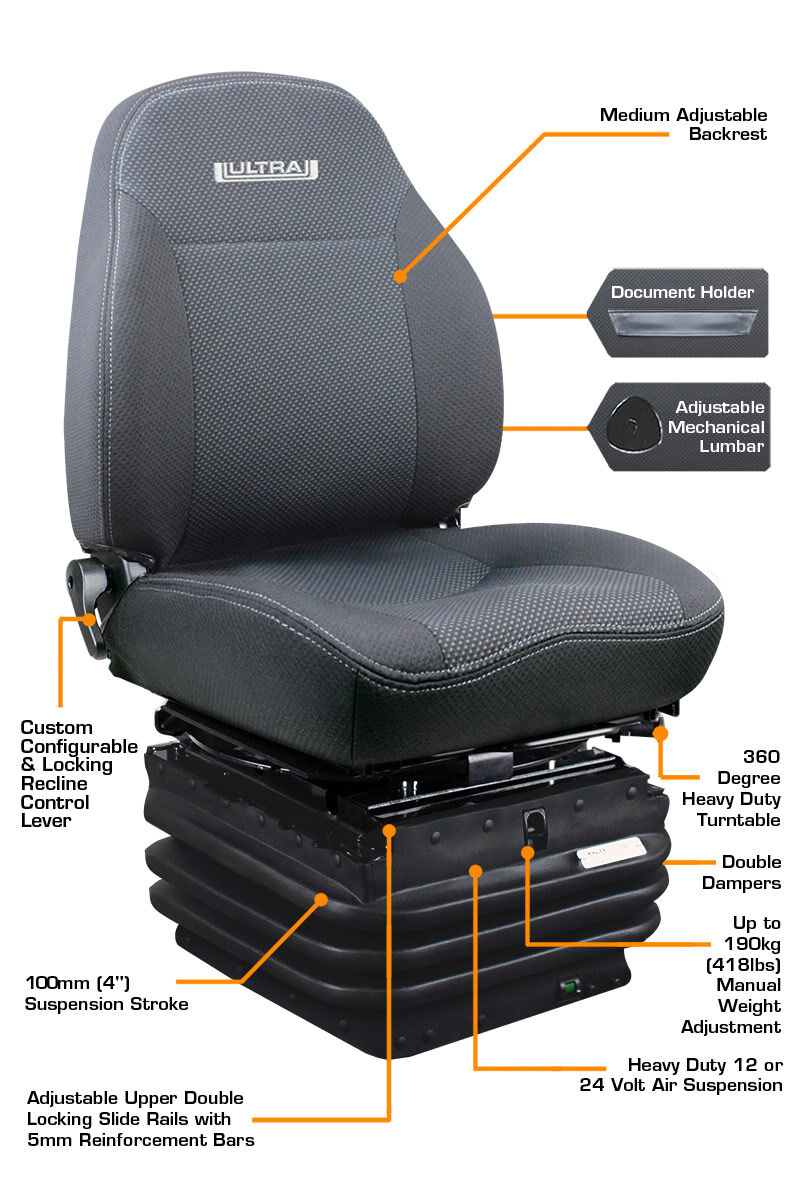

Features

Medium Adjustable Backrest
Custom Configurable & Locking Recline Control Lever
Adjustable Mechanical Lumbar
Document Holder
Double Dampers
Reinforced Heavy Duty Metal Frame

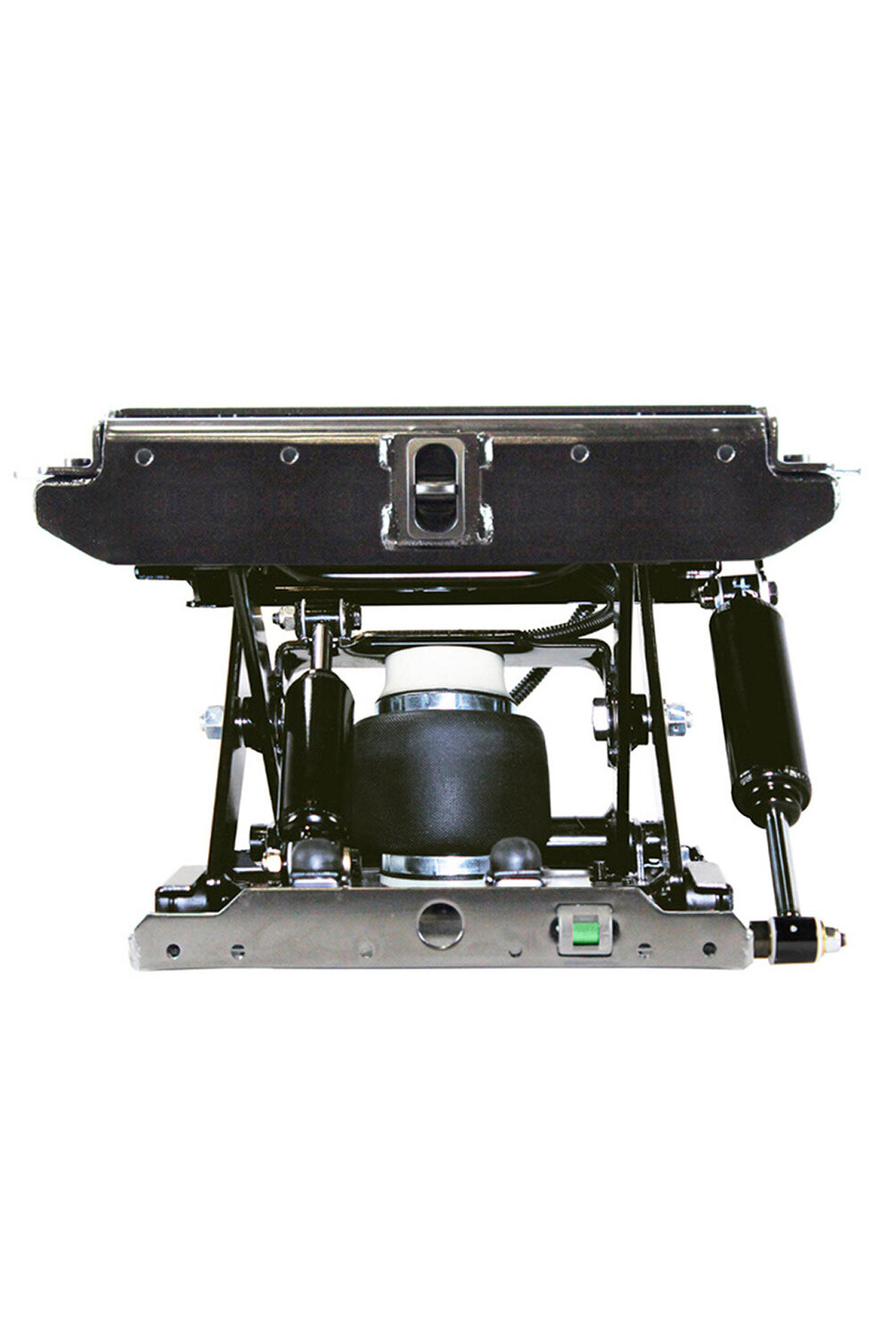

Heavy Duty 12 or 24 Volt Air Suspension
Up to 190kg (418lbs) Manual Weight Adjustment
100mm (4”) Suspension Stroke
Cloth or Vinyl Upholstery
Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars

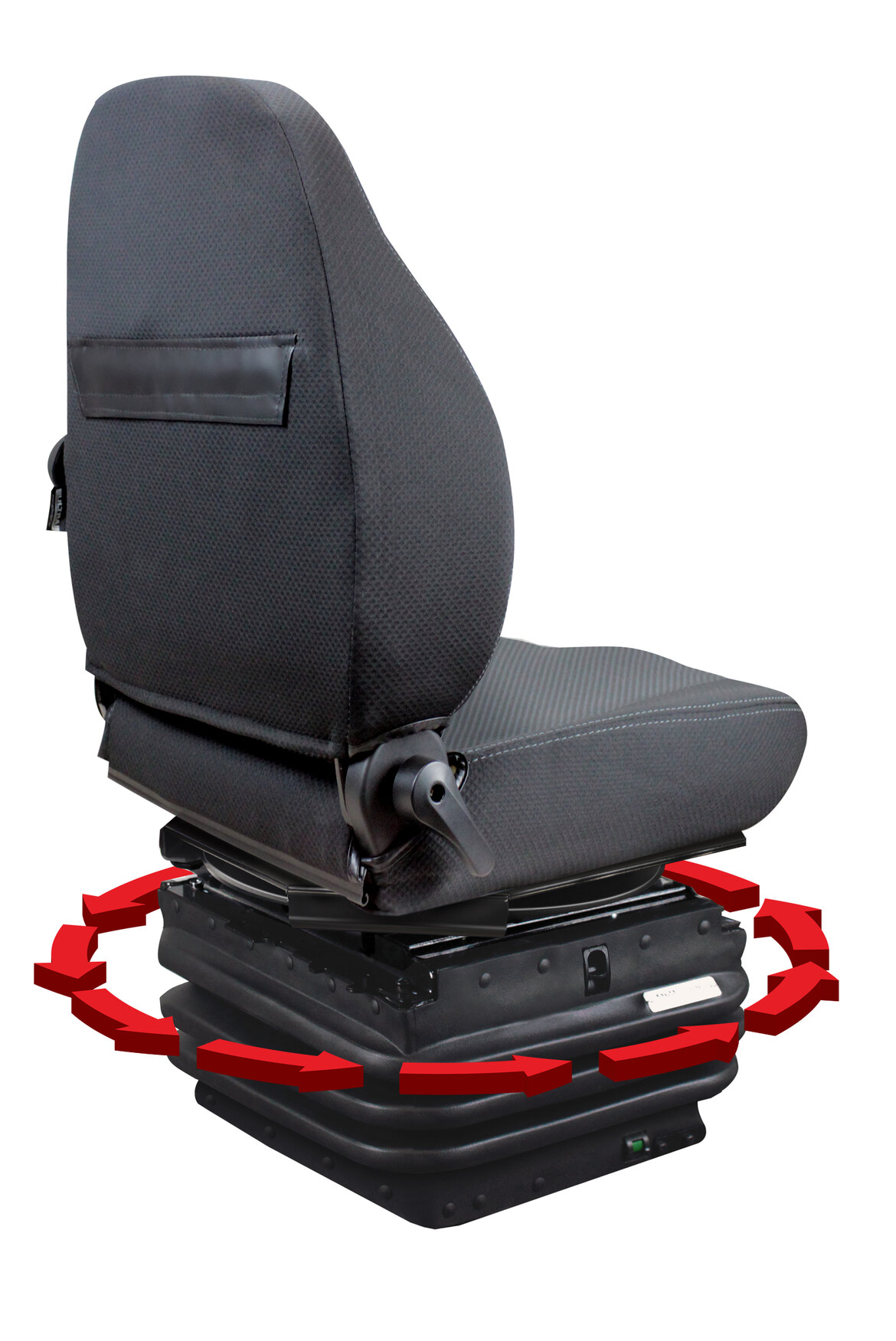

360 Degree Heavy Duty Turntable

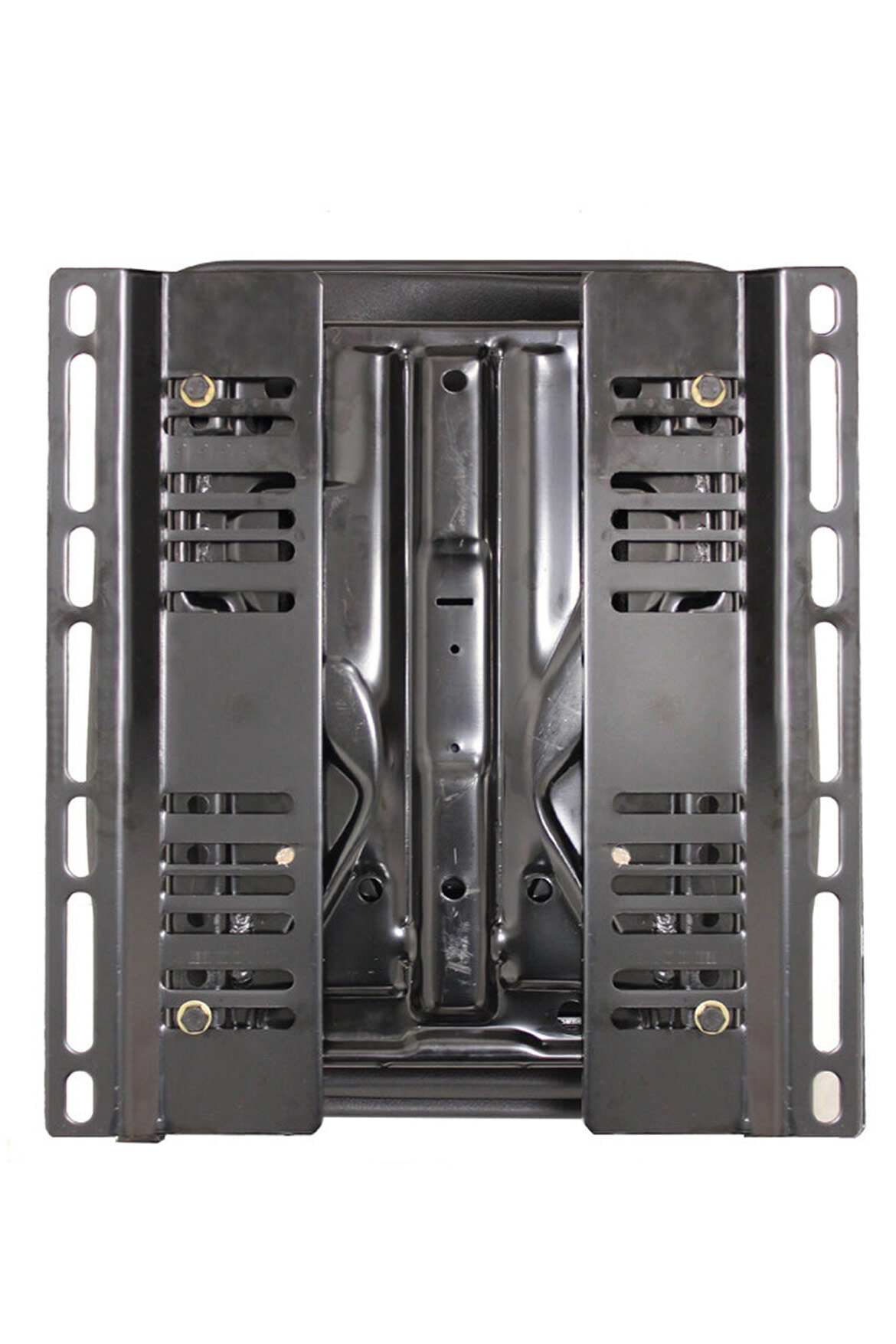

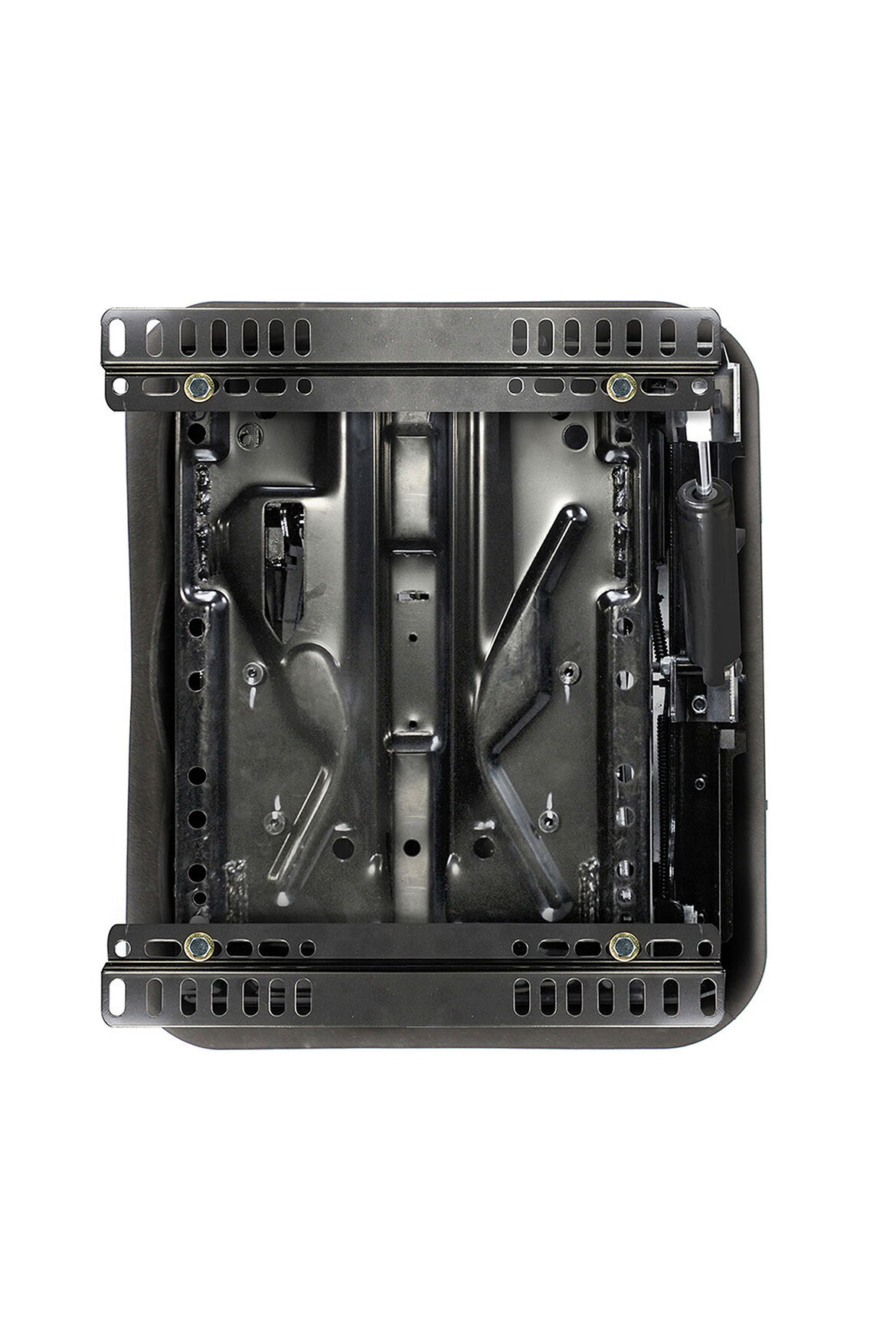

Bolt Pattern

260mm (10.25”) Side to Side
Front to Back (Various, See Bolt Pattern Download)
Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302
Seat Belt Anchor: ISO 6683

SELECT YOUR SEAT

hide

		$1,806.67 USD T778CHDS Black/Grey Cloth 12V Air Suspension Seat with Swivel 58569C12HDS Upper Double Locking Slide Rails Air Suspension Seat.

		$1,806.67 USD T778CHDS Black Vinyl 12V Air Suspension Seat with Swivel 58561C12HDS Upper Double Locking Slide Rails Air Suspension Seat.

		$1,806.67 USD T778CHDS Black/Grey Cloth 24V Air Suspension Seat with Swivel 58569C24HDS Upper Double Locking Slide Rails Air Suspension Seat.

		$1,806.67 USD T778CHDS Black Vinyl 24V Air Suspension Seat with Swivel 58561C24HDS Upper Double Locking Slide Rails Air Suspension Seat.

		None of the above This field is optional...

SELECT YOUR LEFT ARMREST

hide

		$41.33 USD 2.5 inch Econo Left Armrest 87038L Suited For T Series Seat Models

		$68.00 USD 2.5 inch Standard Left Armrest 87034L Suited For T Series Seat Models, Administrator, Drafting and Supervisor 24 Hour Office Chairs

		$82.67 USD 3.5 inch Standard Left Armrest 87039L Suited For T Series Seat Models

		None of the above This field is optional...

SELECT YOUR RIGHT ARMREST

hide

		$41.33 USD 2.5 inch Econo Right Armrest 87038R Suited For T Series Seat Models

		$68.00 USD 2.5 inch Standard Right Armrest 87034R Suited For T Series Seat Models, Administrator, Drafting and Supervisor 24 Hour Office Chairs

		$82.67 USD 3.5 inch Standard Right Armrest 87039R Suited For T Series Seat Models

		None of the above This field is optional...

SELECT YOUR HEADREST

hide

		$58.67 USD Adjustable Black/Grey Cloth Headrest 870221 Suited For T5 & T7 Series Seat Models, Administrator & Drafting 24 Hour Office Chairs

		$58.67 USD Adjustable Black Vinyl Headrest 87023 Suited For T5 & T7 Series Seat Models, Administrator & Drafting 24 Hour Office Chairs

		None of the above This field is optional...

SELECT YOUR ALTERNATE MOUNTING BRACKETS

hide

		$114.67 USD Universal Mounting Plates - (Pair) 880-59 88059 Suited for most applications that require a wide side to side mounting pattern. Increase side to side pattern by a minimum of 3.5in to a maximum of 8in (per mounting bar / each side). Front to back mounting pattern is various to a maximum 406mm (16in).

		None of the above This field is optional...

SELECT YOUR SEAT BELT

hide

		$160.00 USD 2 inch Retractable Seat Belt 81065 Suited For Most Seat Models.

		$210.67 USD 3 inch Retractable Seat Belt 81067 Suited For Most Seat Models.

		None of the above This field is optional...

Let us Help! What are you installing this seat in?

( $0 ) Base Price

+ ( $NaN ) SELECT YOUR SEAT None of the above

+ ( $NaN ) SELECT YOUR LEFT ARMREST None of the above

+ ( $NaN ) SELECT YOUR RIGHT ARMREST None of the above

+ ( $NaN ) SELECT YOUR HEADREST None of the above

+ ( $NaN ) SELECT YOUR ALTERNATE MOUNTING BRACKETS None of the above

+ ( $NaN ) SELECT YOUR SEAT BELT None of the above

+ ( $NaN ) Let us Help! What are you installing this seat in?

( $NaN ) Price Modifiers

+ ( $0.00 ) Subtotal
