E522 Low Profile Integrated Mechanical Suspension Forklift Seat

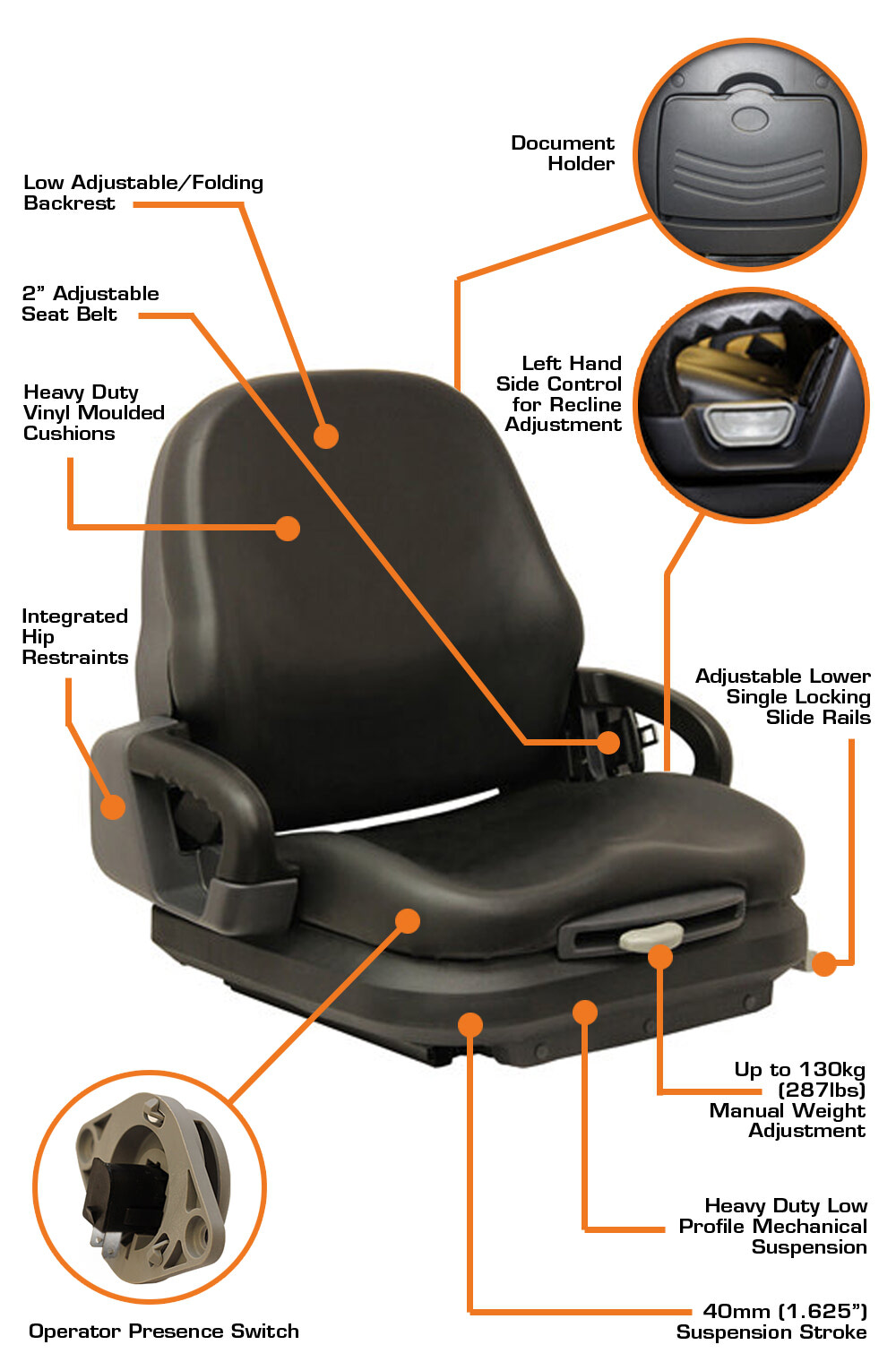

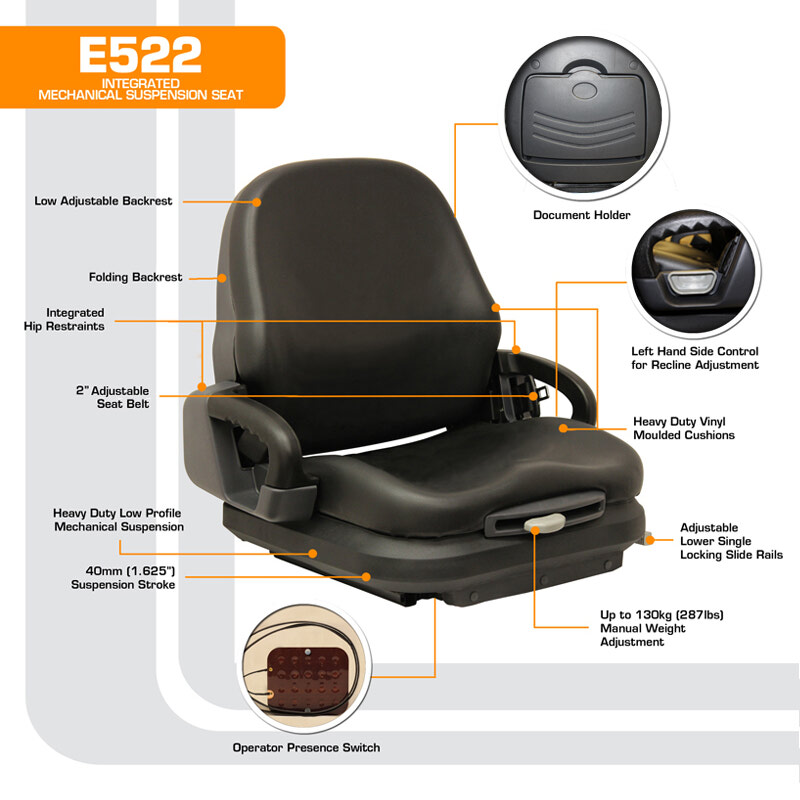

Features
- Low Adjustable Backrest
- Heavy Duty Low Profile Mechanical Suspension
- Up to 130kg (287lbs) Manual Weight Adjustment
- Document Holder
- Folding Backrest
- Heavy Duty Vinyl Molded Cushions
- Integrated Hip Restraints
- Left Hand Side Control for Recline Adjustment
- 40mm (1.6”) Suspension Stroke
- Adjustable Lower Single Locking Slide Rails
- 2” Retractable Seat belt with Safety Switch (Normally Closed)
- Operator Presence Switch
- Multiple Bolt Mounting Patterns
Bolt Pattern
-
Side to Side (Various, See Bolt Pattern Download for Details)
-
Front to Back (Various, See Bolt Pattern Download for Details)
Industry Standards
-
Operator Seat Vibration: ISO 7096
-
Flammability: FMVSS 302
-
Seat Belt Anchor: ISO 6683
Replacement For
- KAB 211, KAB Compact, Nissan Forklift Seat Part Number 87000-FB400, Doosan Forklift Seat Part Number 110946-00063, Bostrom MX-175, Sears Seating FL 1500
