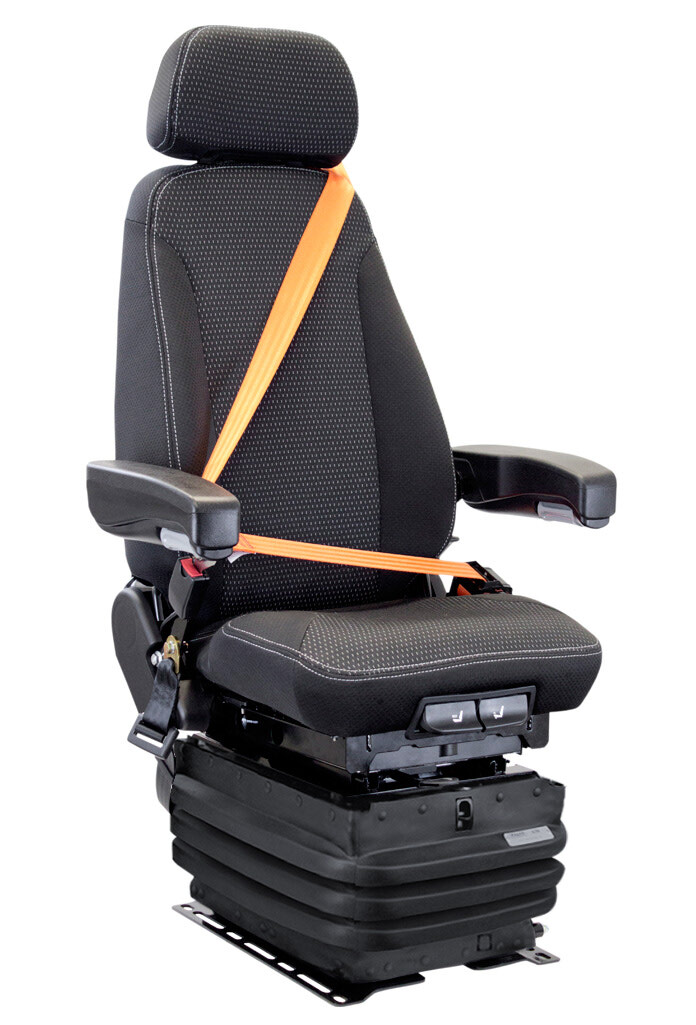

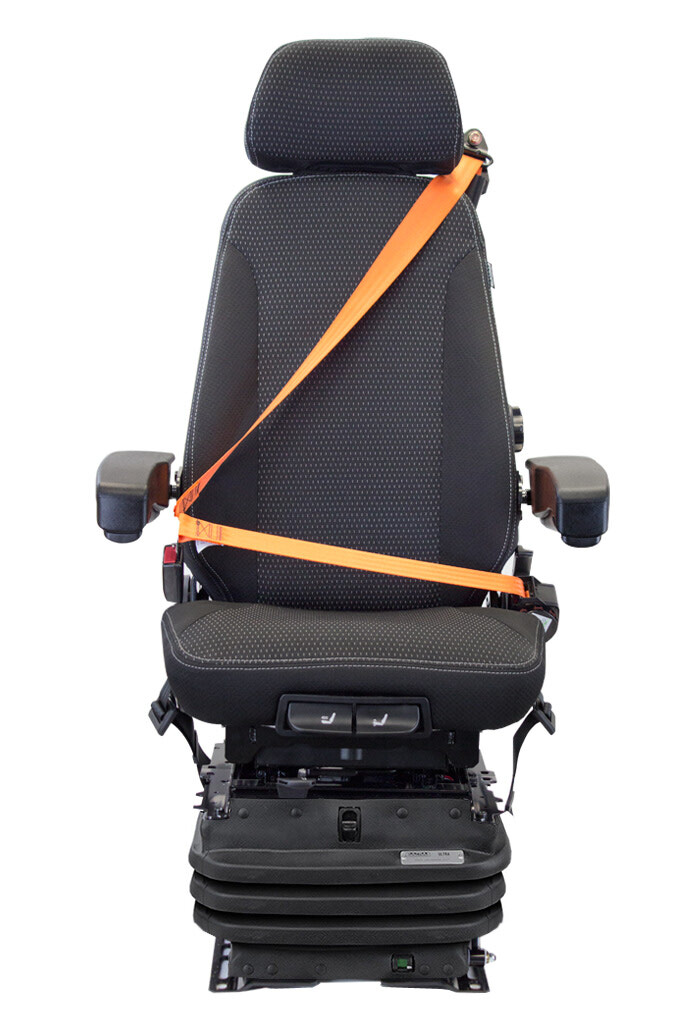

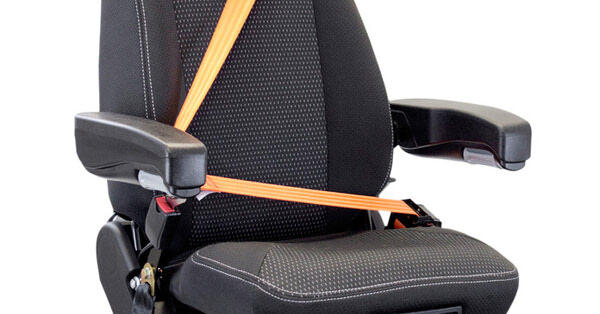

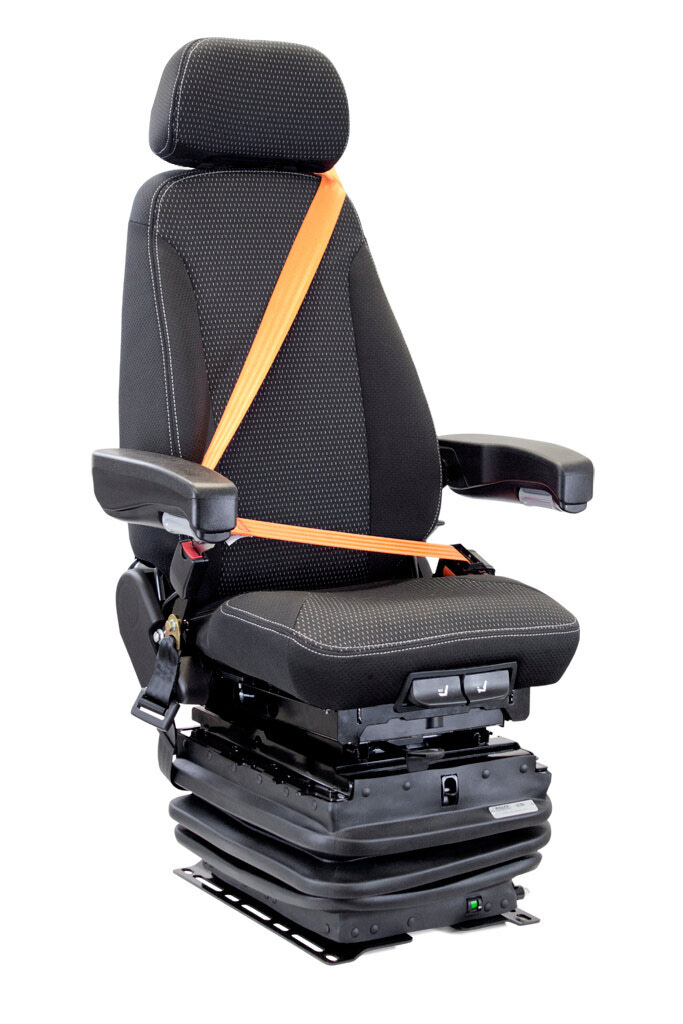

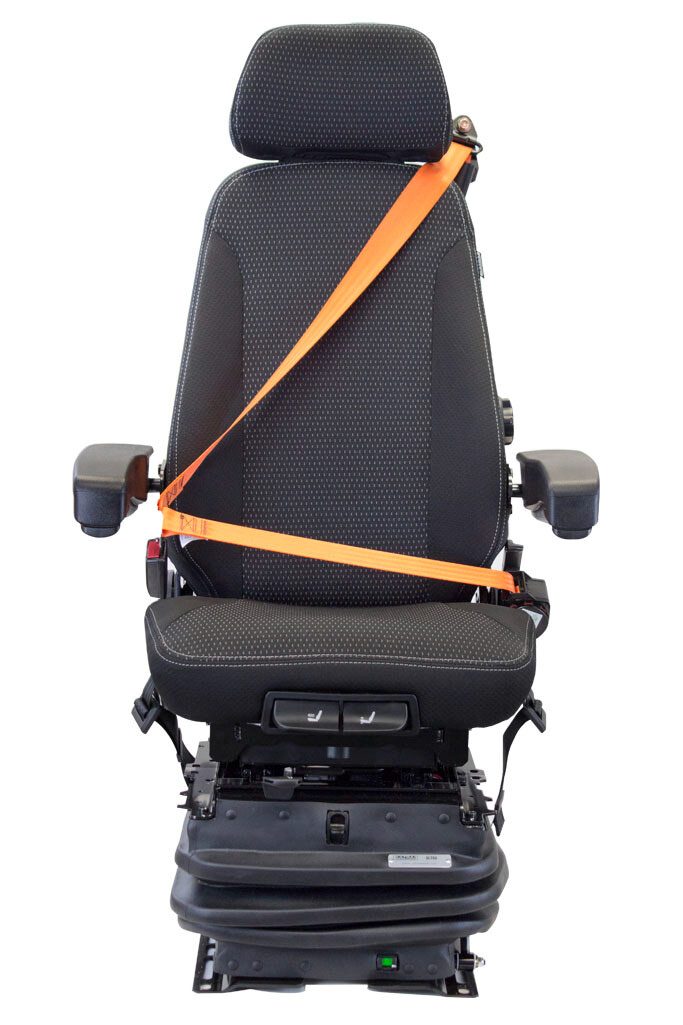

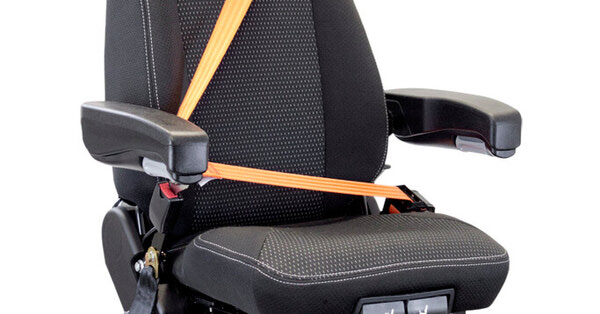

J978CH3 Articulated Dump Truck Seat

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal

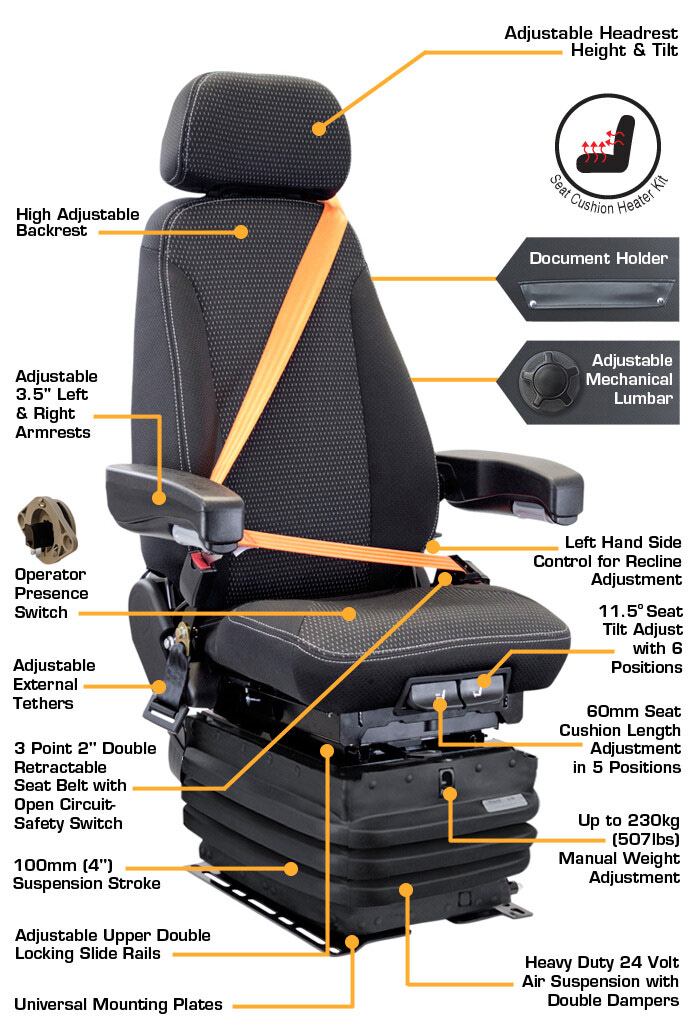

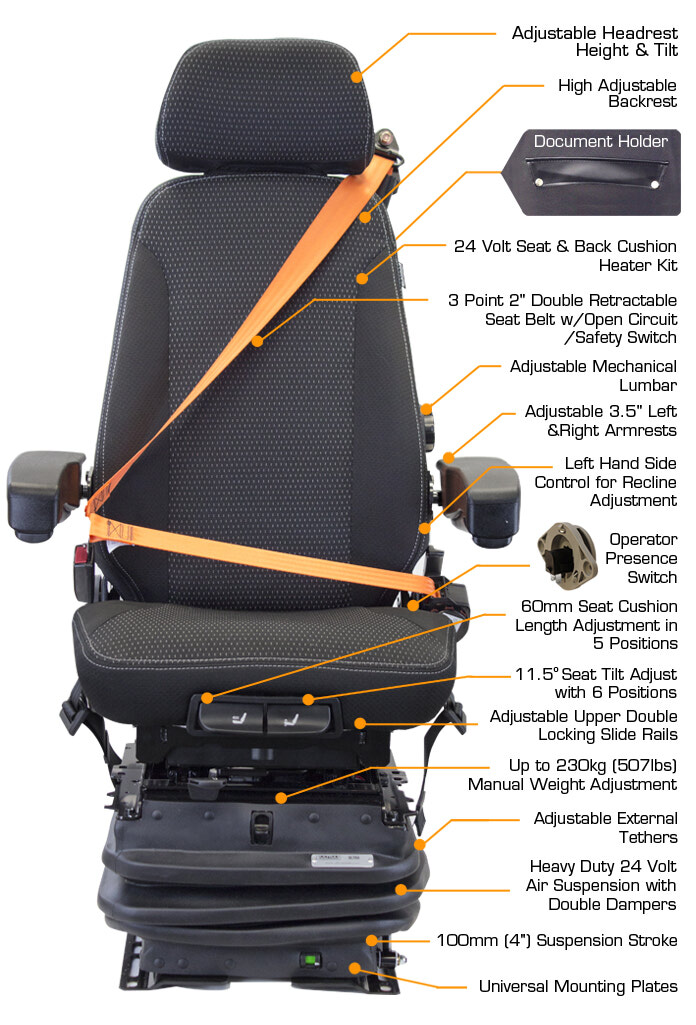

Features

  • High Adjustable Backrest
  • Left Hand Side Control for Recline Adjustment
  • Adjustable Mechanical Lumbar
  • Adjustable Headrest / Height and Tilt
  • Document Holder
  • 11.5° Seat Tilt Adjustment in 6 Positions
  • 60mm Seat Cushion Length Adjustment in 5 Positions

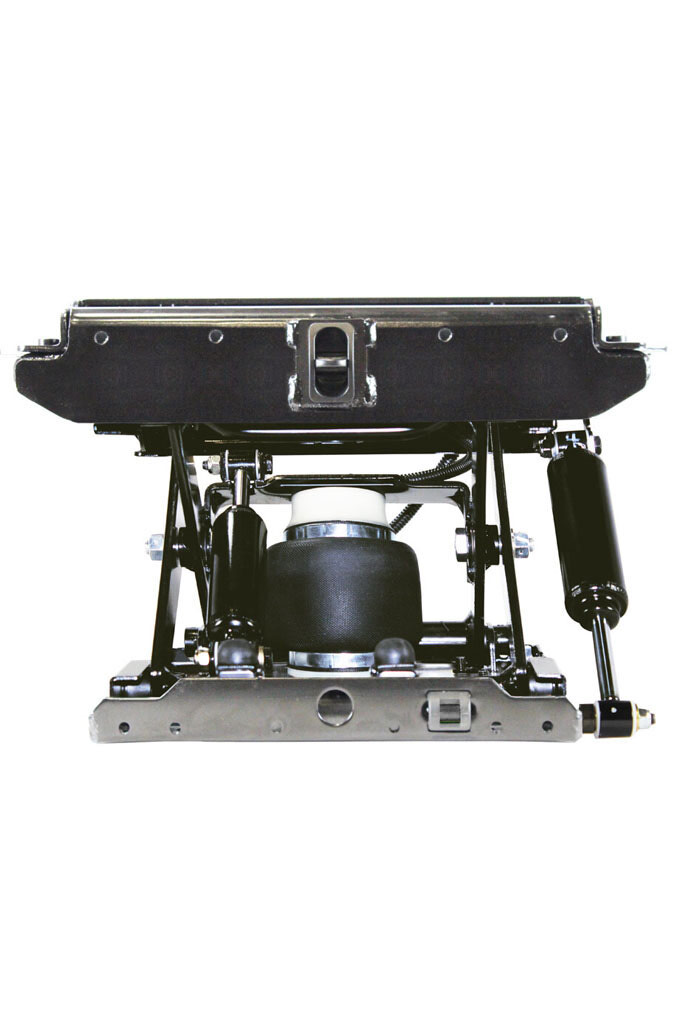

  • Heavy Duty 24 Volt Air Suspension with Double Dampers
  • Up to 230kg (507lbs) Manual Weight Adjustment
  • 100mm (4") Suspension Stroke
  • Adjustable Upper Double Locking Slide Rails
  • 3 Point 2" Double Retractable Shoulder Seat Belt With Open Circuit / Safety Switch
  • Adjustable External Tethers

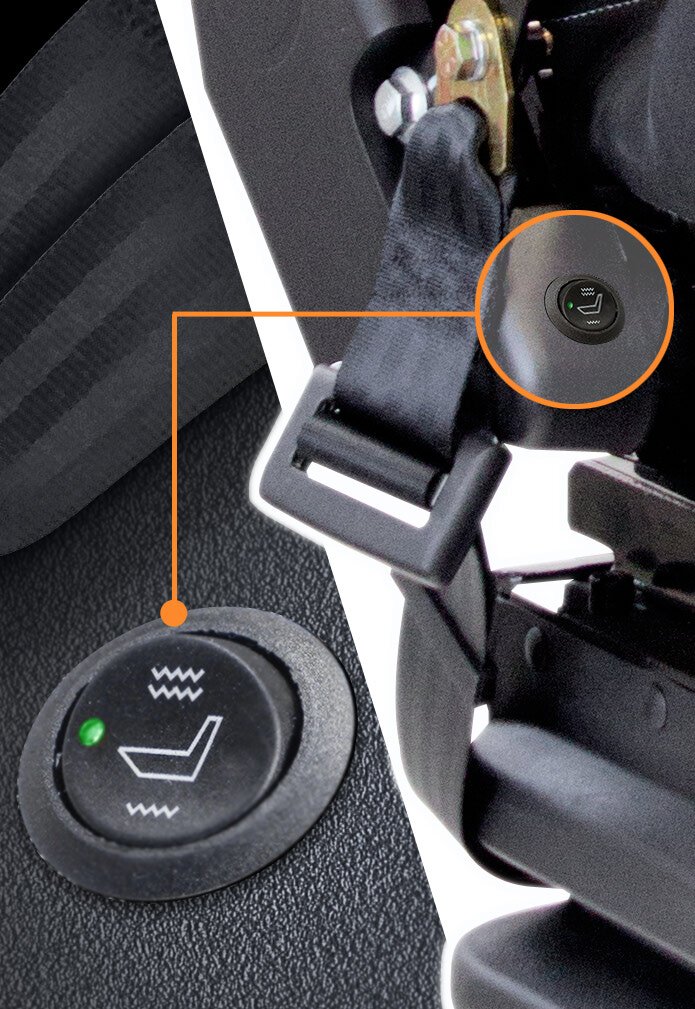

  • 24 Volt Seat and Back Cushion Heater Kit
  • Adjustable 3.5" Left and Right Hand Armrest

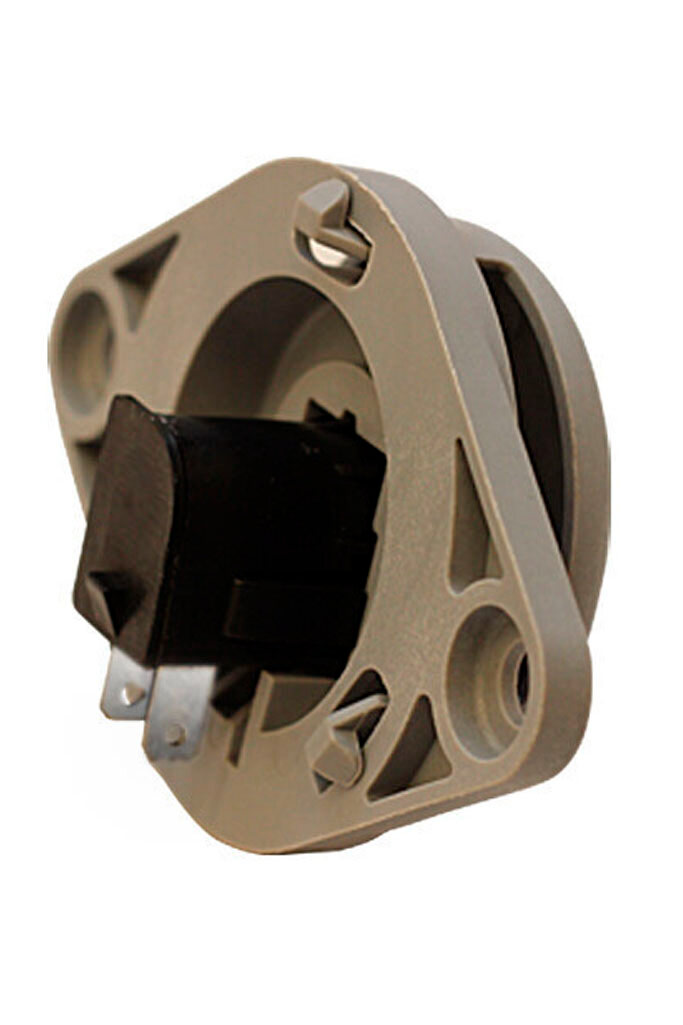

  • Operator Presence Switch
  • 24 Volt Seat & Back Cushion Heater Kit
  • Universal Mounting Plates

Bolt Pattern

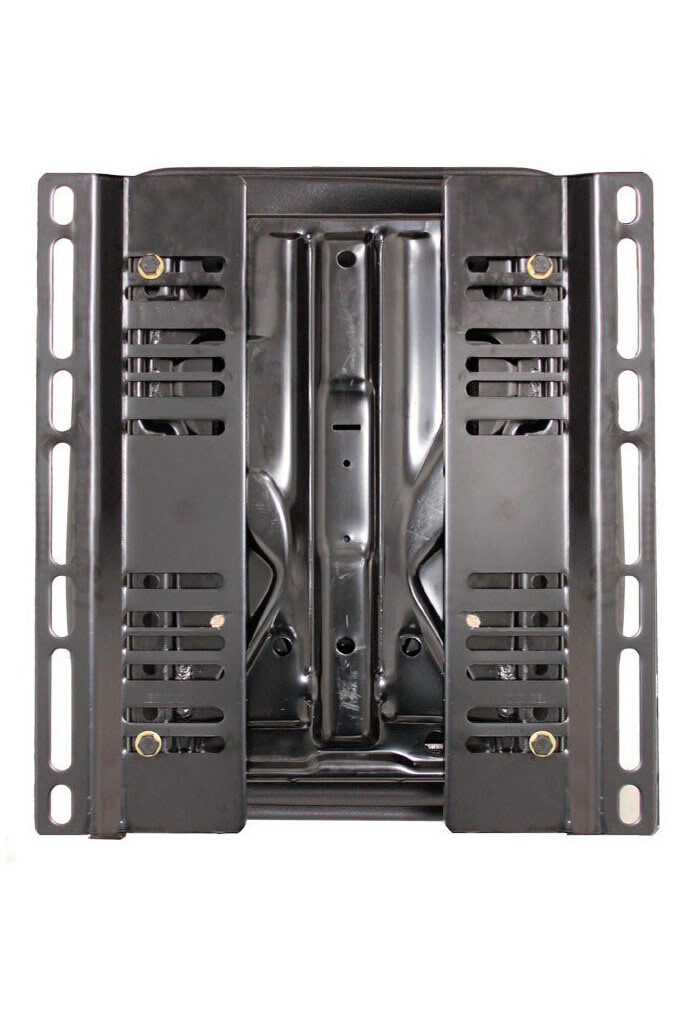

  • Mounting Plates (88059) Shipped With Seat

  • Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")

  • Front to Back - Various up to 406 mm (16")

Industry Standards

  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302

Replacement For

  • Komatsu Seat Group Number: 562-57-3A110, 56B-57-51250, 58E-57-10011, 362-3442, 58E-57-16771, ZSSA37445.901
