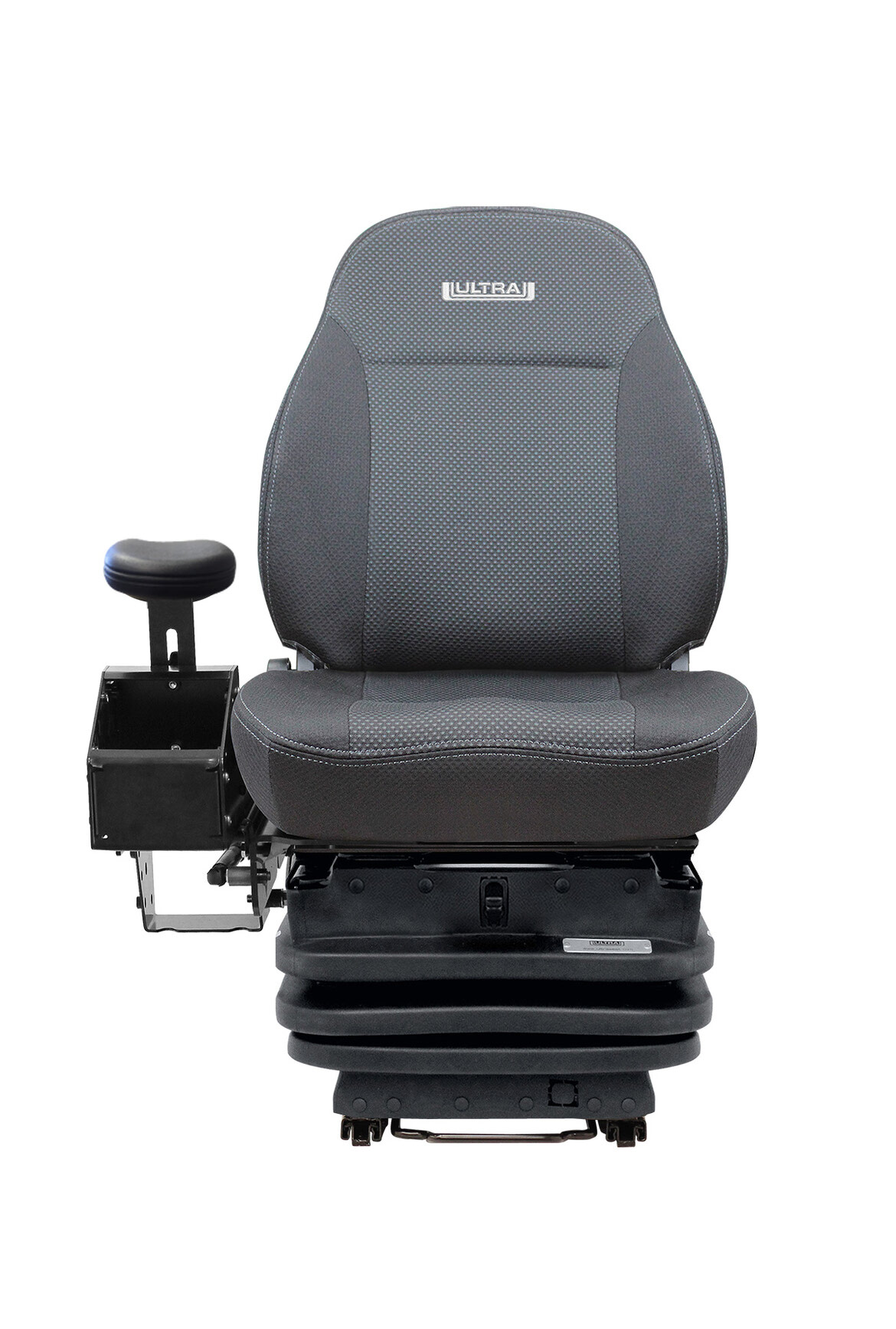

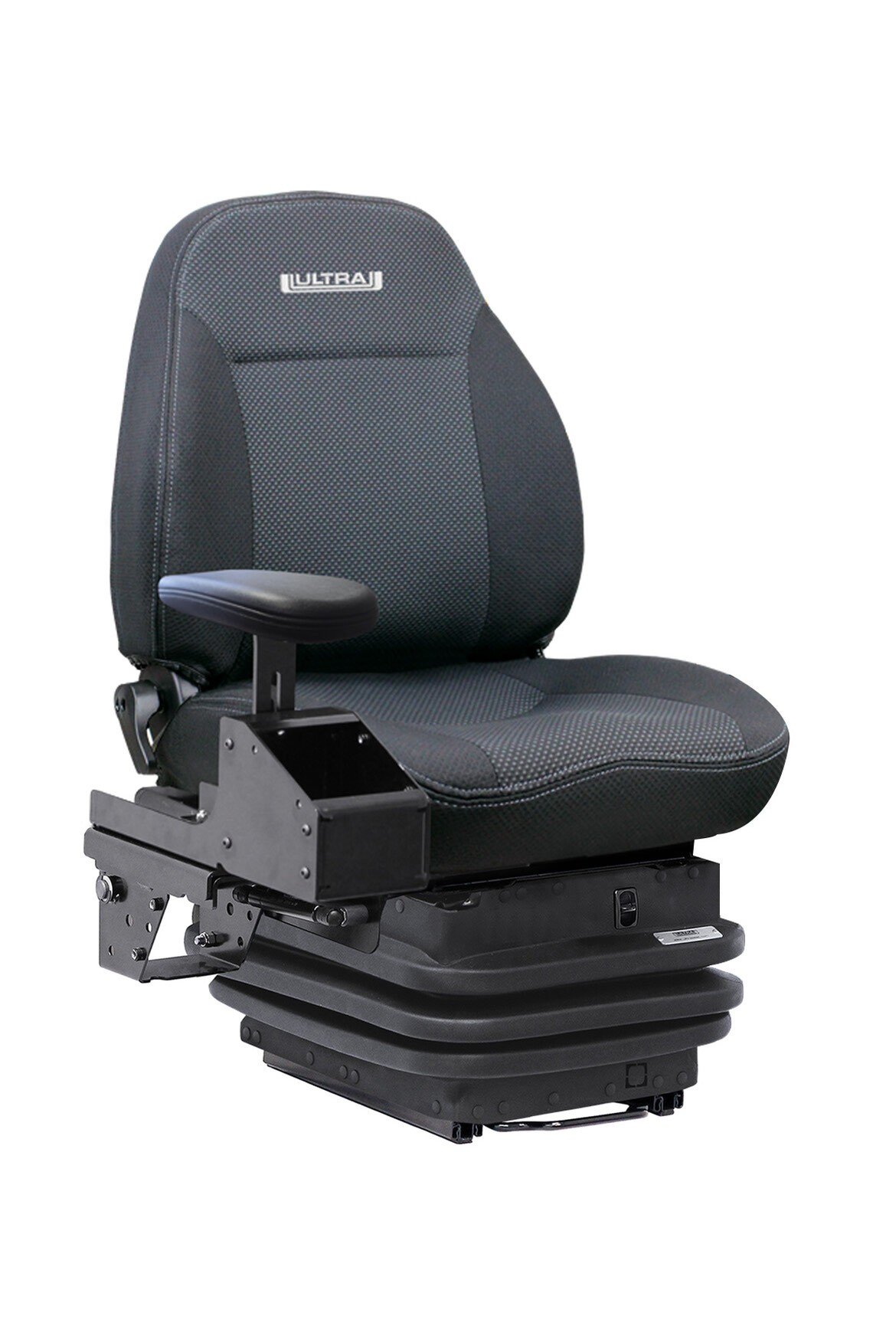

T776CHD PRH Air Suspension Pod Seat

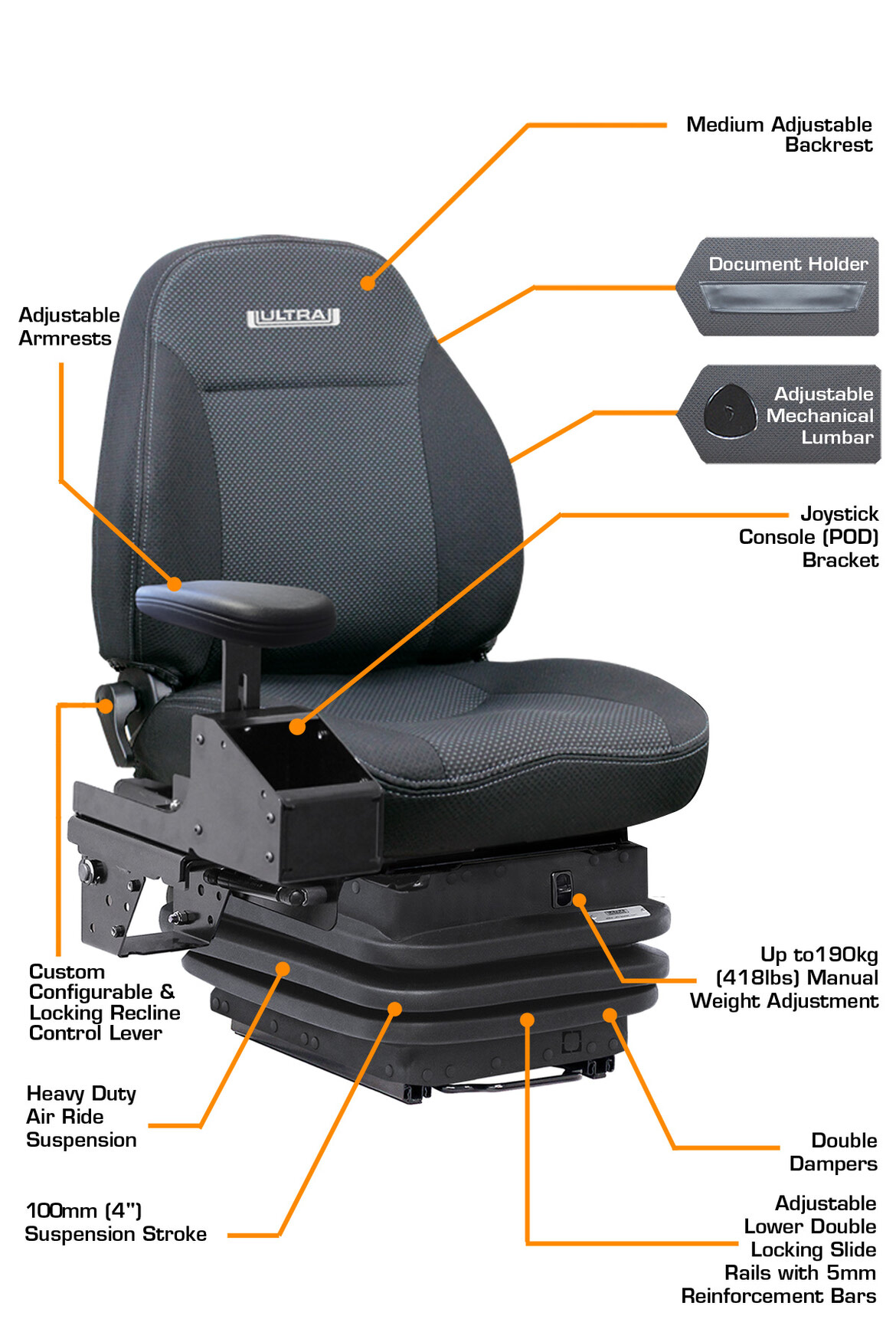

Features
- Medium Adjustable Backrest
- Adjustable Mechanical Lumbar
- Custom Configurable & Locking Recline Control Lever
- Document Holder
- Double Dampers
- Tilt-able Joystick Console (Metal)

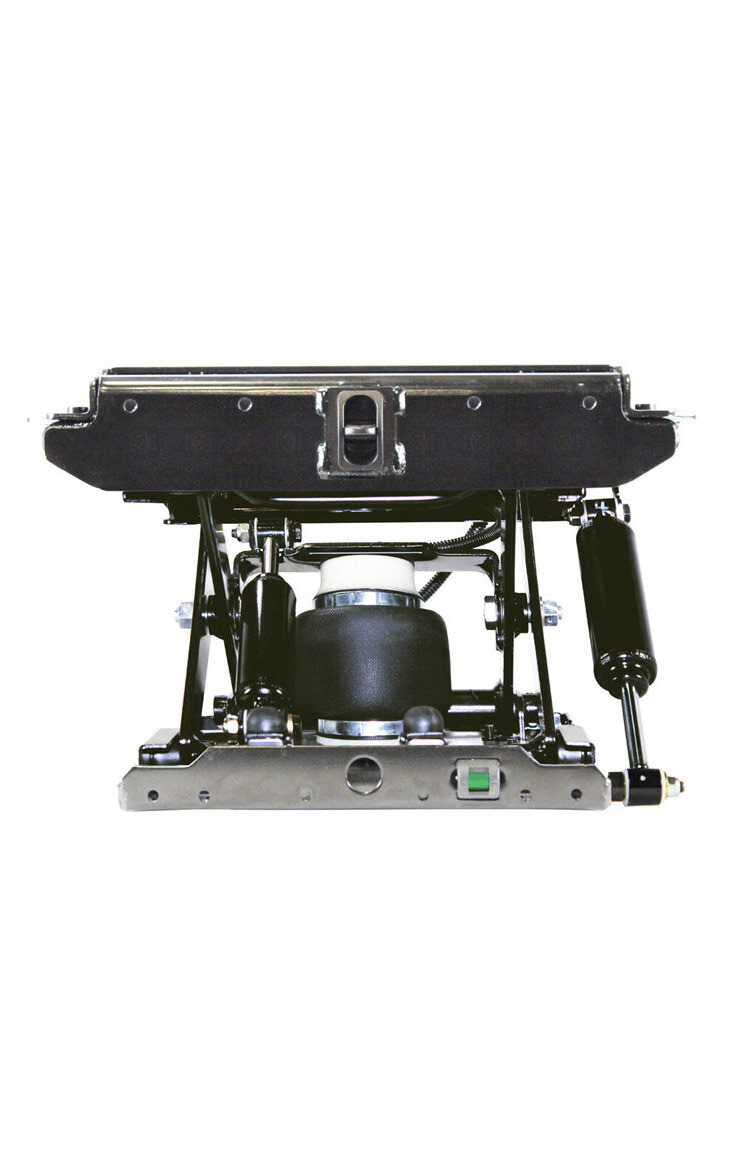

- Heavy Duty 12 or 24 Volt Air Suspension
- Up to 190kg (418lbs) Manual Weight Adjustment
- 100mm (4”) Suspension Stroke
- Adjustable Lower Double Locking Slide Rails with 5mm Reinforcement Bars

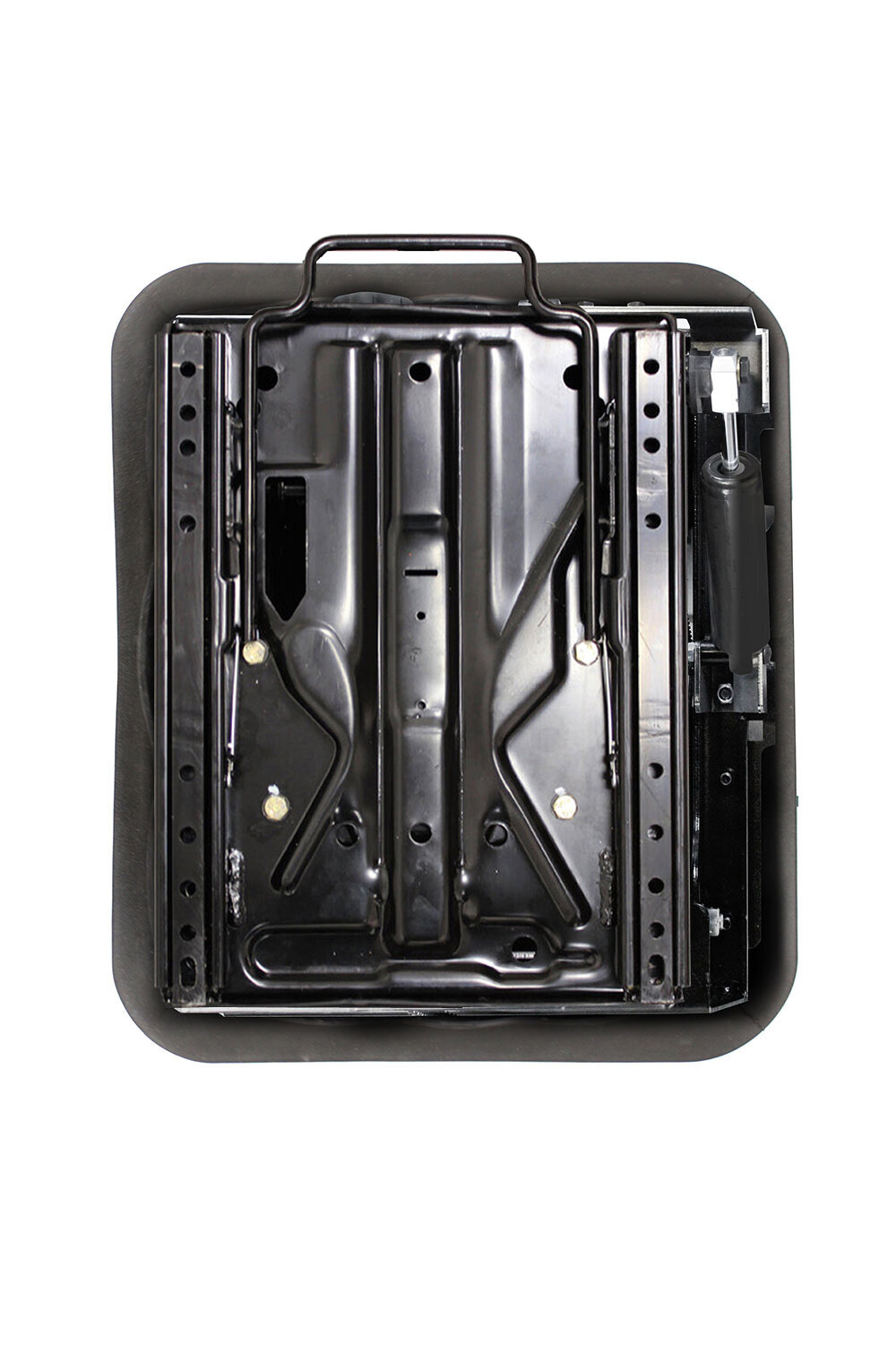

Bolt Pattern
- 260mm (10.25”) Side to Side
- 229/254/279/305 mm Front to Back

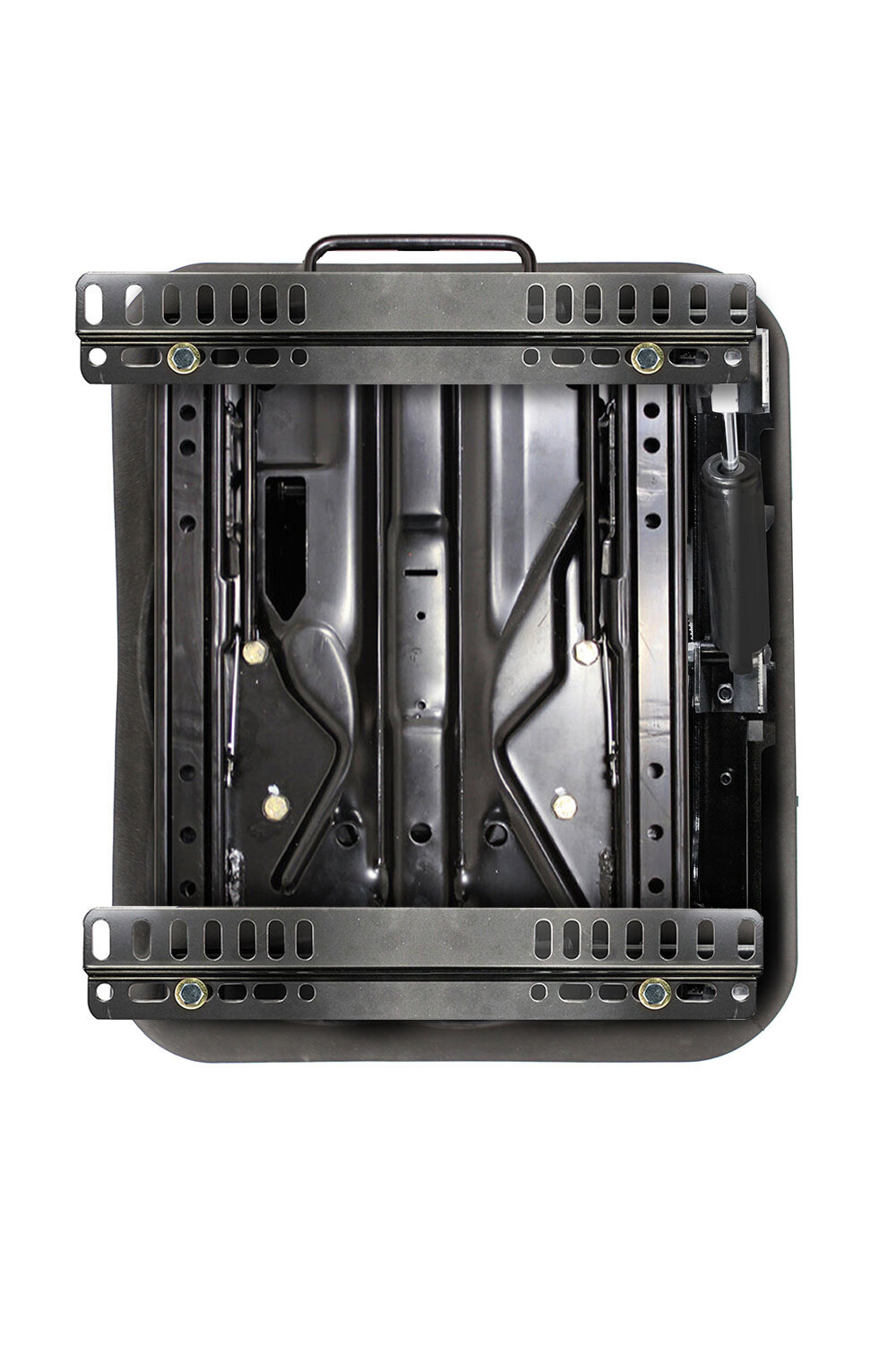

- Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)
Industry Standards
-
Operator Seat Vibration: ISO 7096
-
Flammability: FMVSS 302
-
Seat Belt Anchor: ISO 6683
