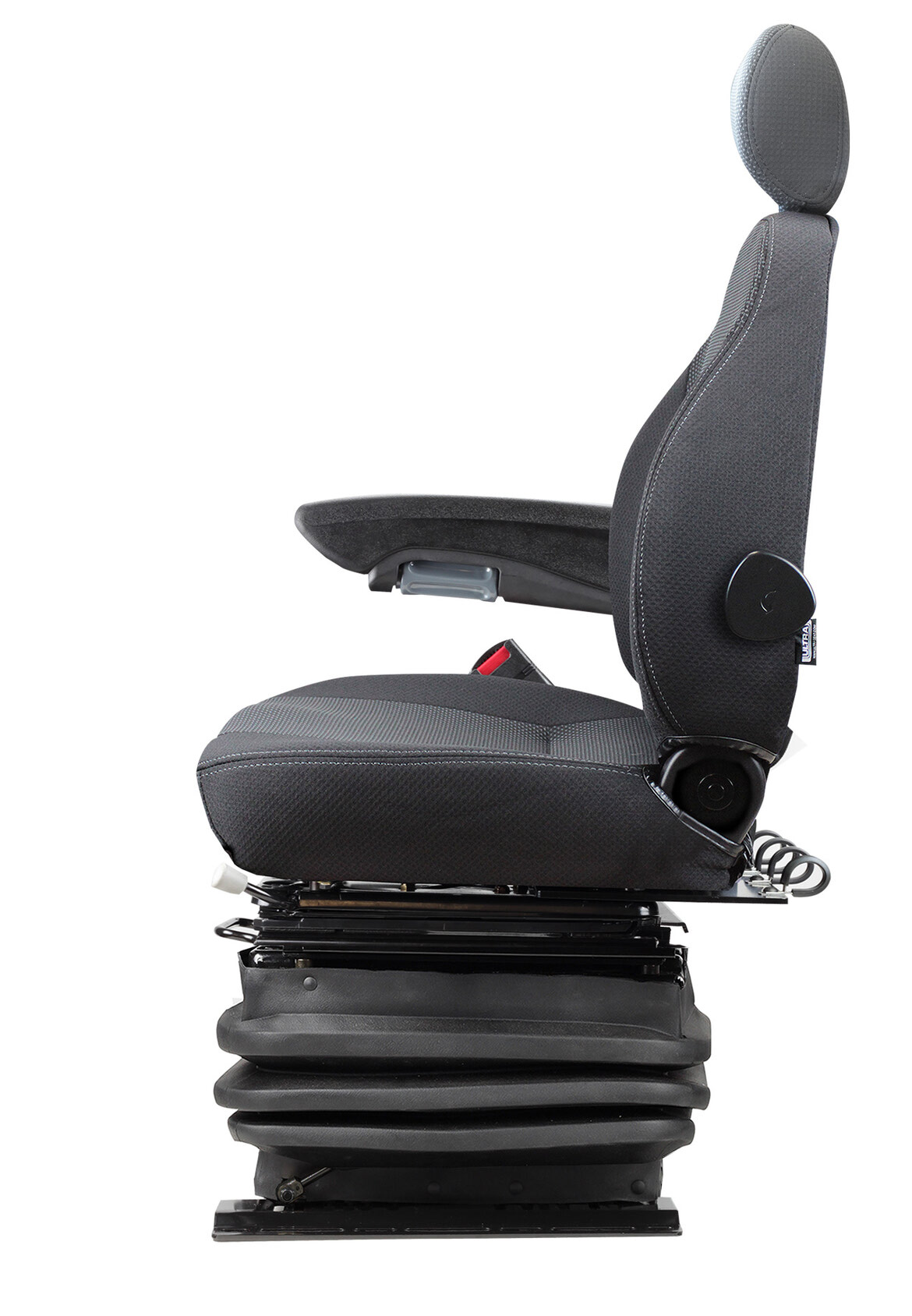

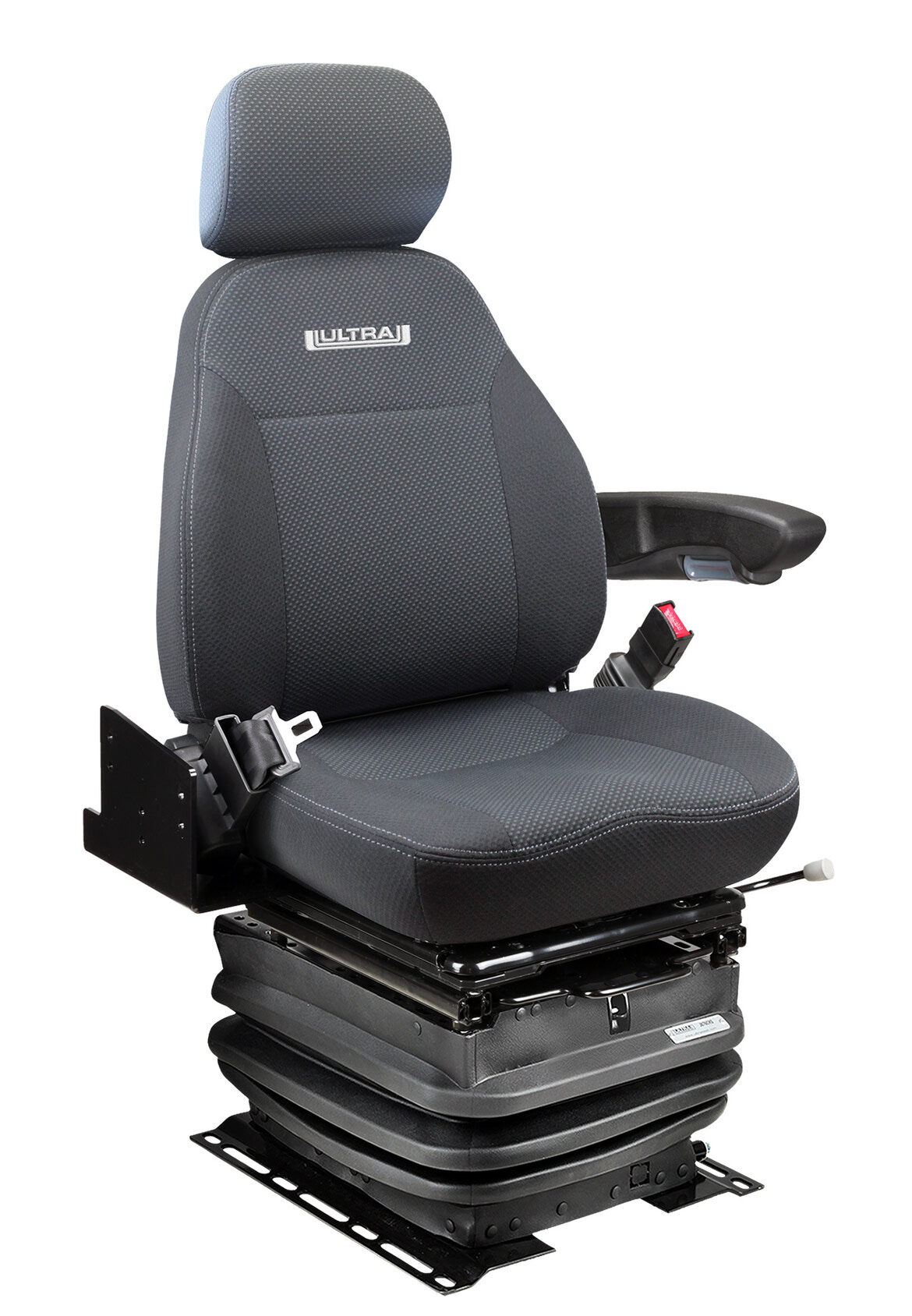

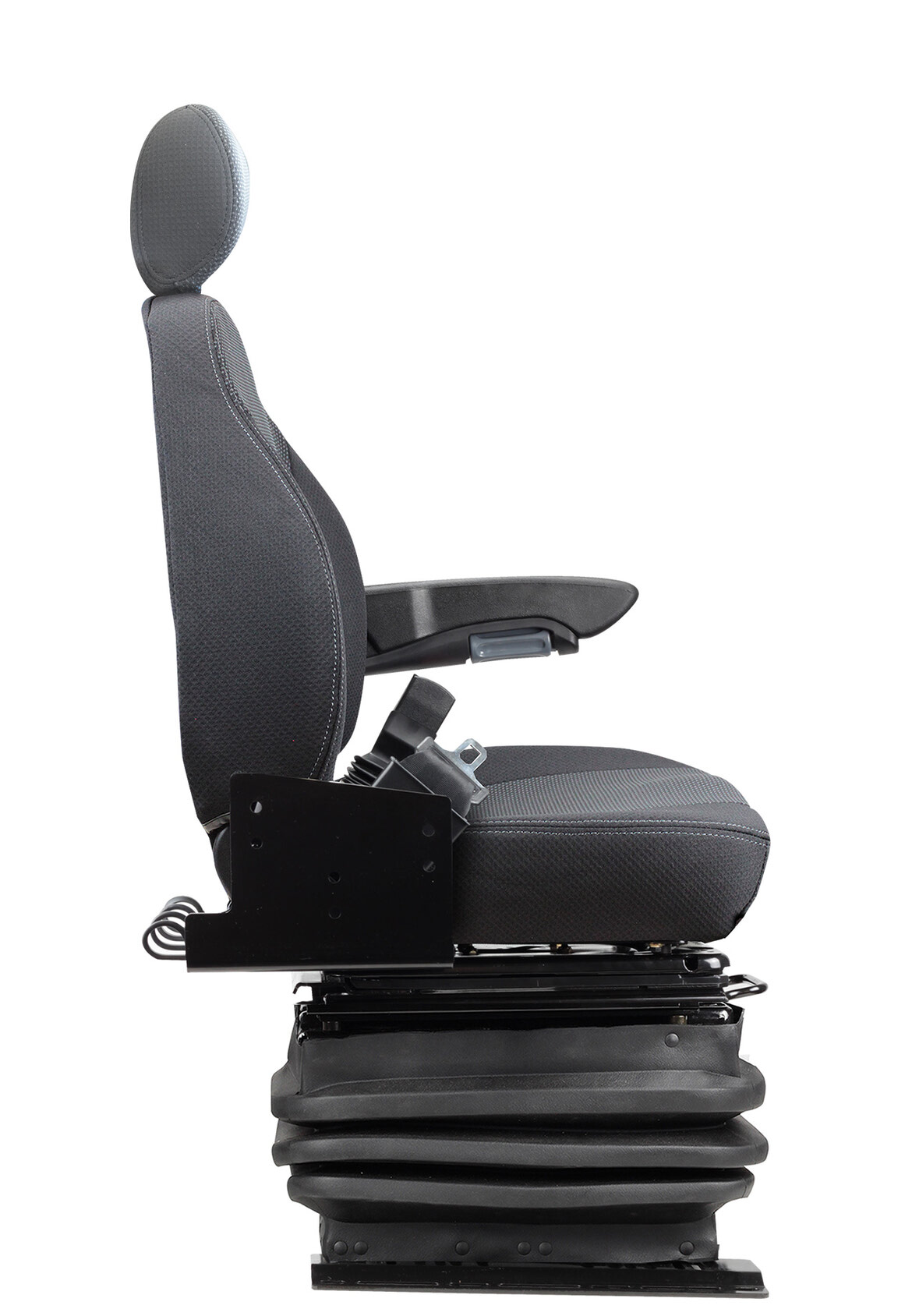

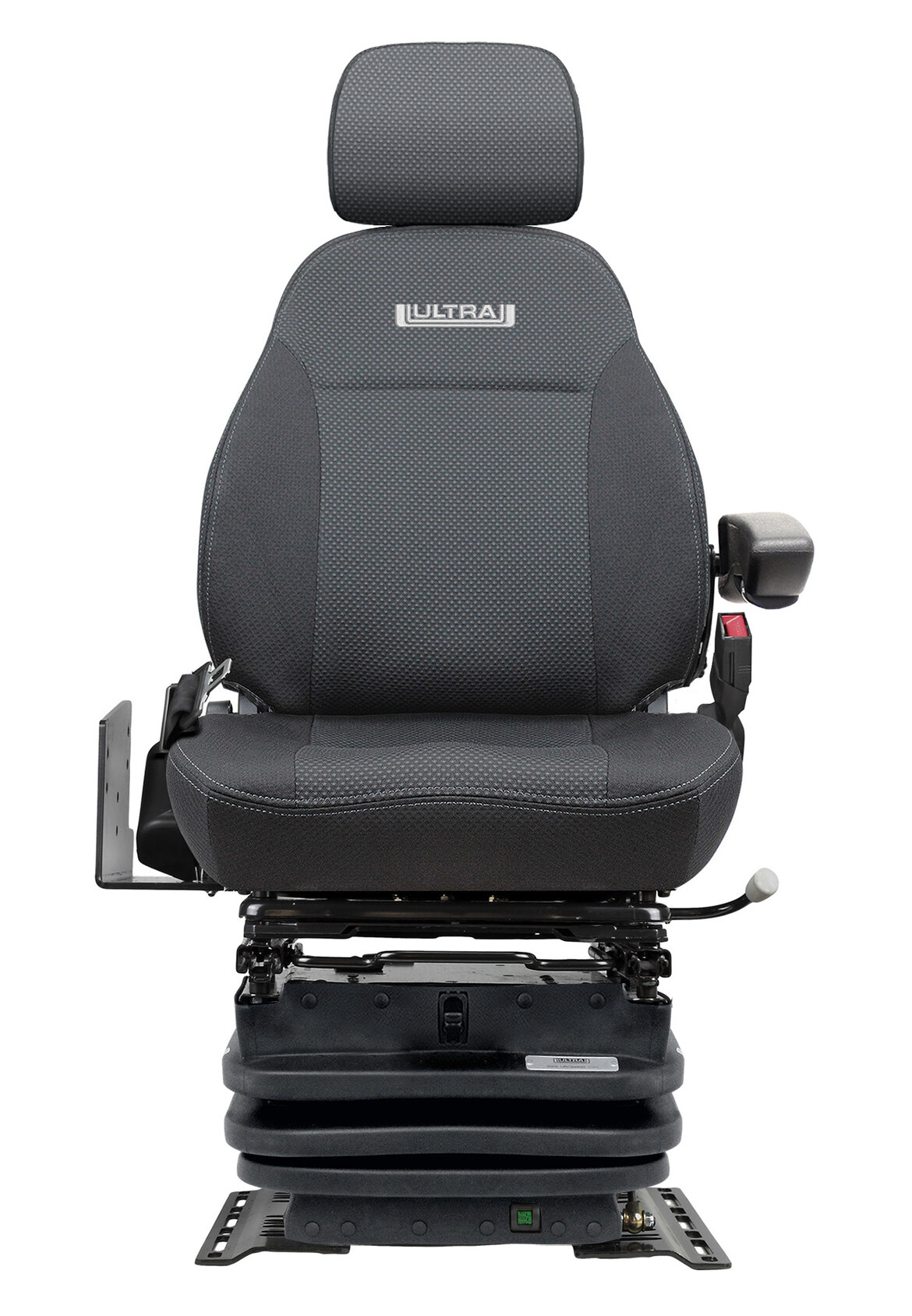

T776CS CAT8 RH Small Wheel Loader Air Suspension Seat

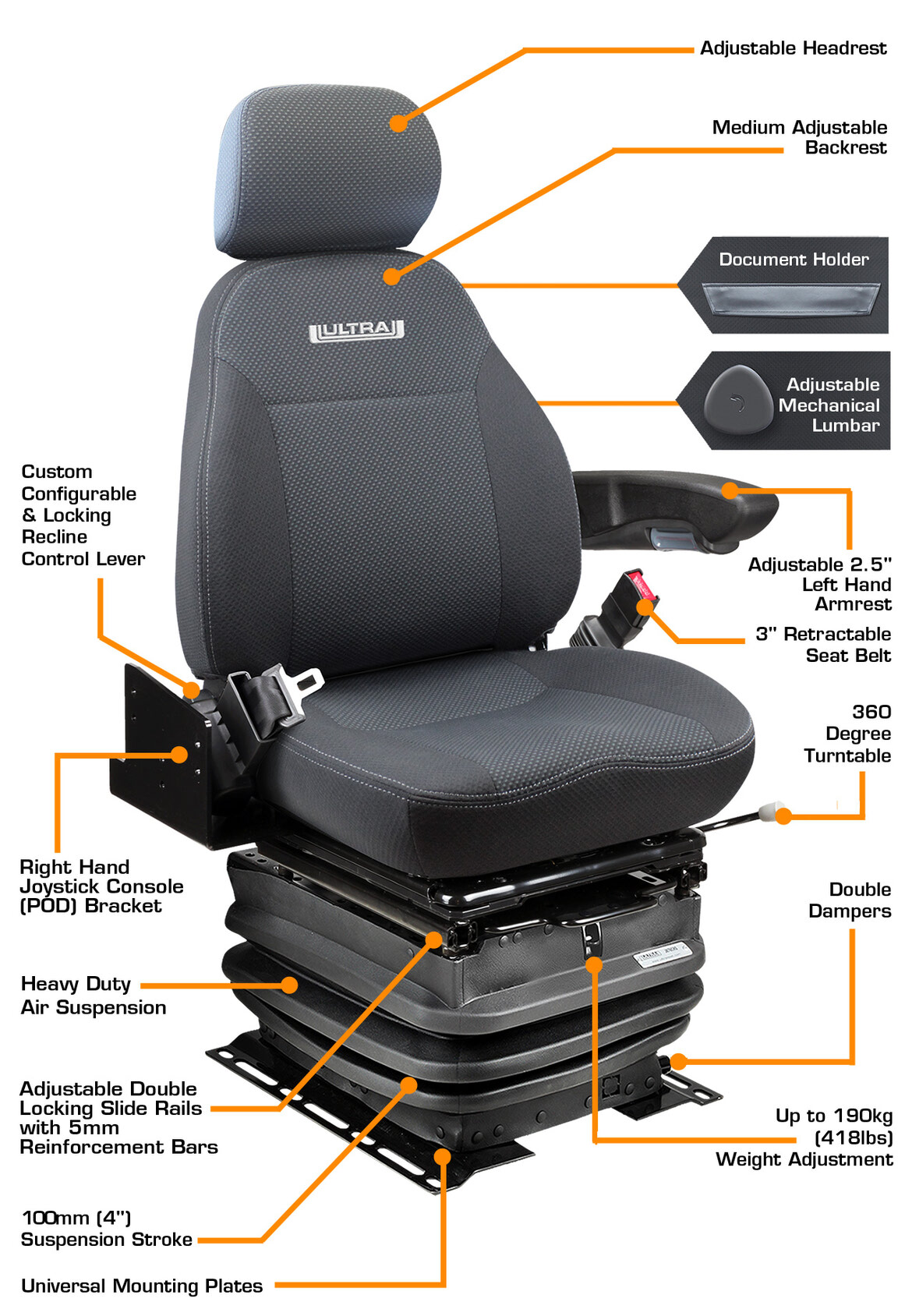

Features

• Medium Adjustable Backrest

• Custom Configurable & Locking Recline Control Lever

• Adjustable Headrest
• Adjustable Mechanical Lumbar

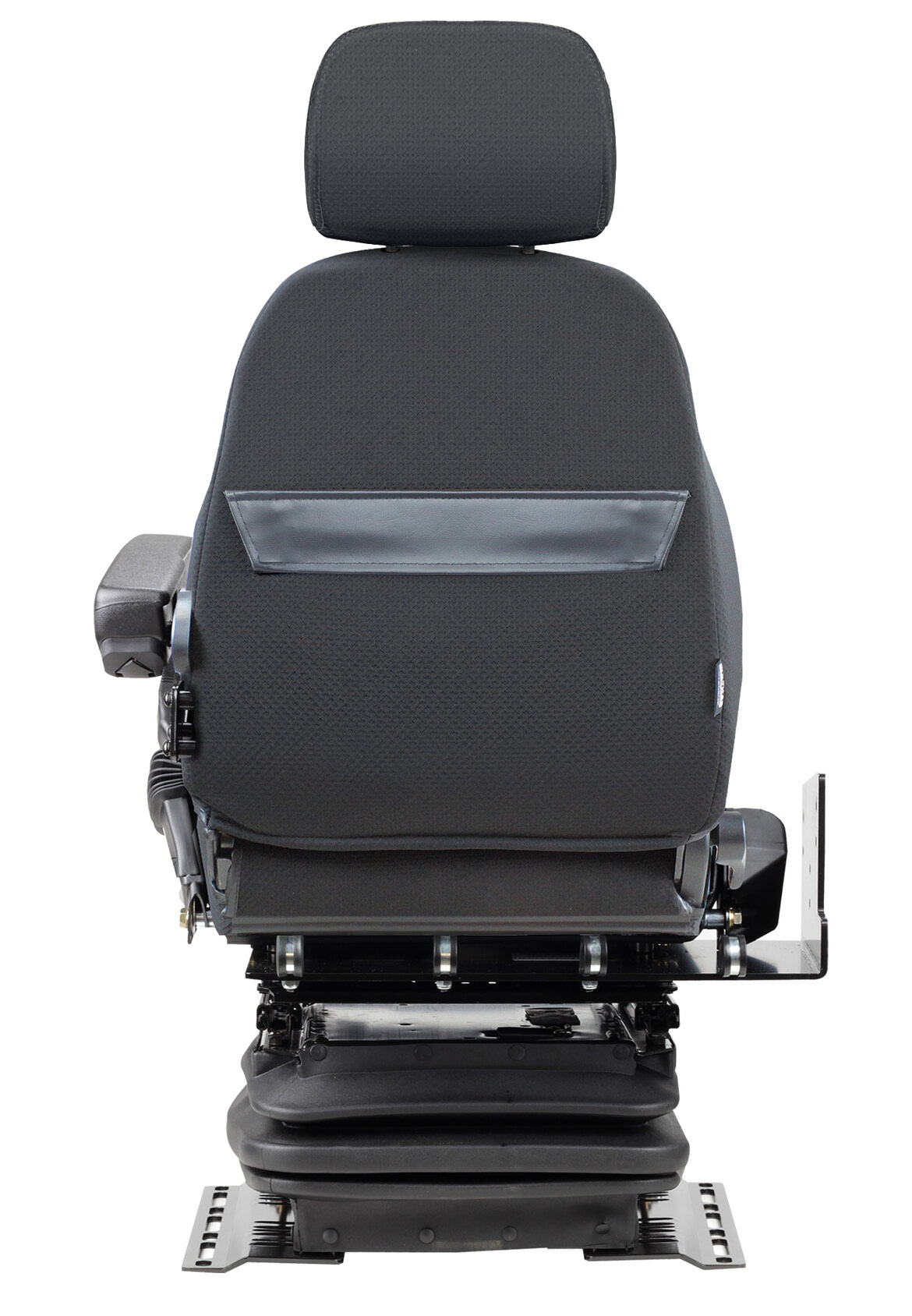

• Document Holder

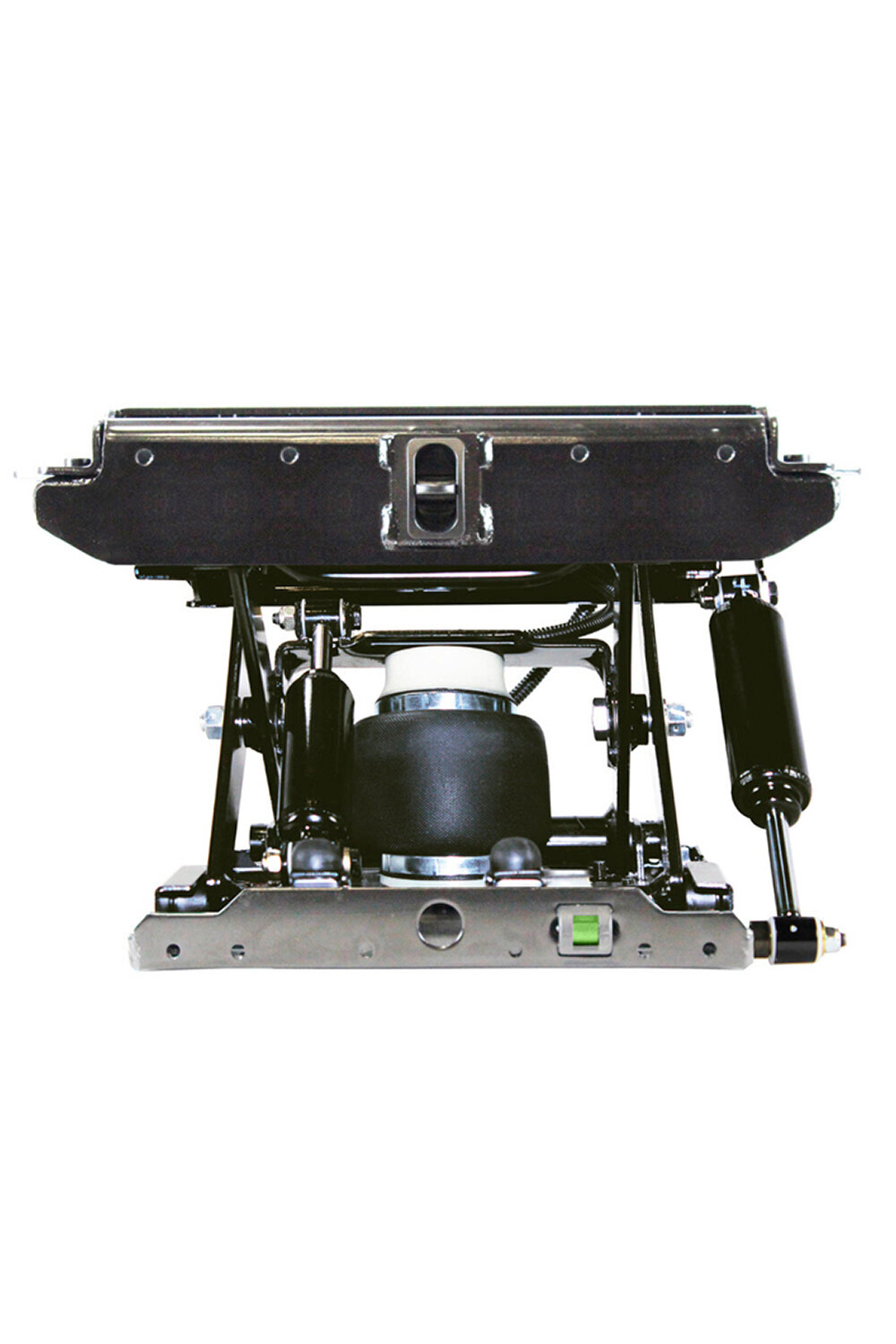

• Heavy Duty Air Suspension

• Up to 190kg (418lbs) Manual Weight Adjustment

• Double Dampers
• 100mm (4”) Suspension Stroke

• Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars

• 360 Degree Turntable

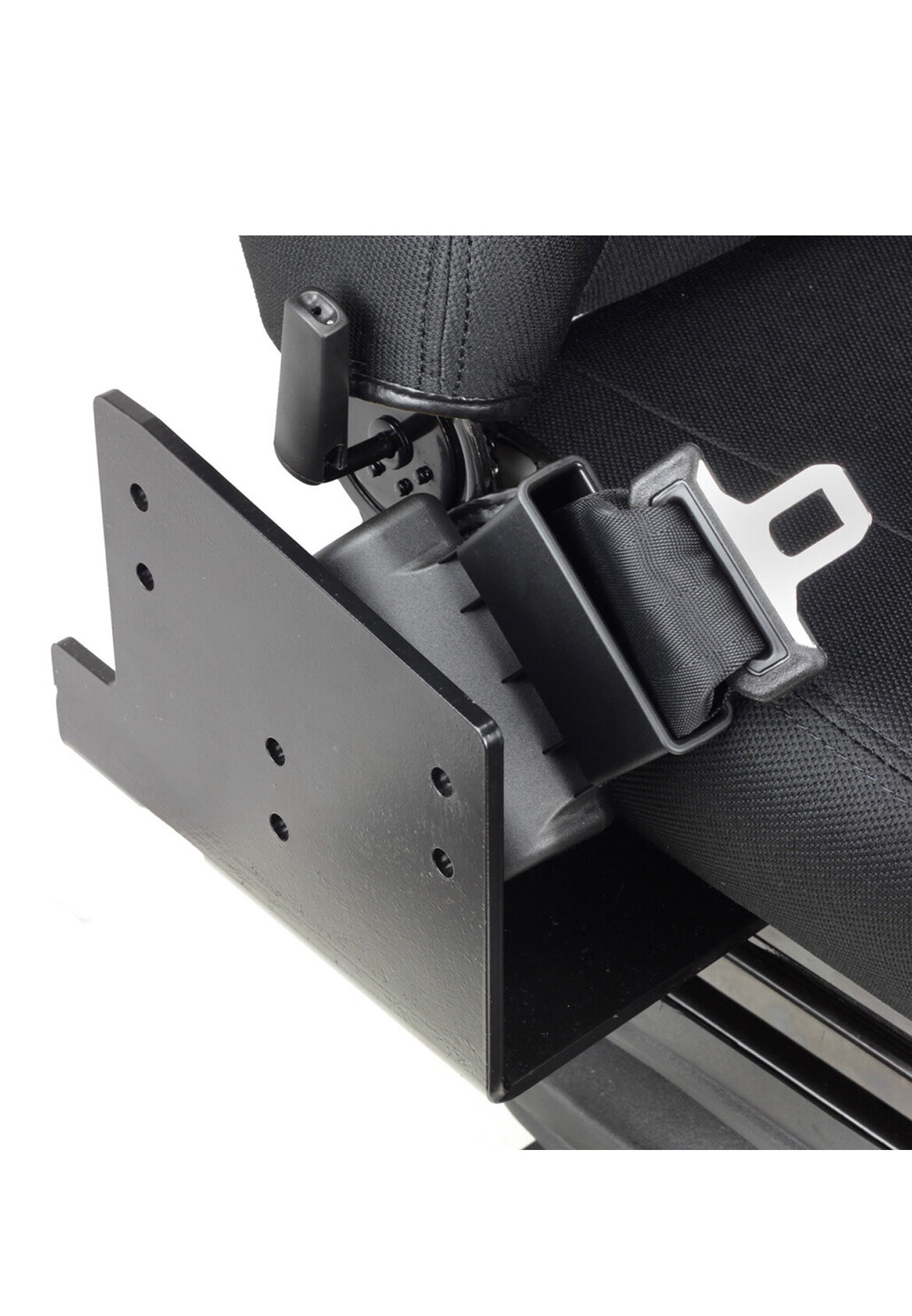

• Right-Hand Joystick Console (Pod) Bracket
• Adjustable 2.5" Left-Hand Armrest
• 3" Retractable Seat Belt

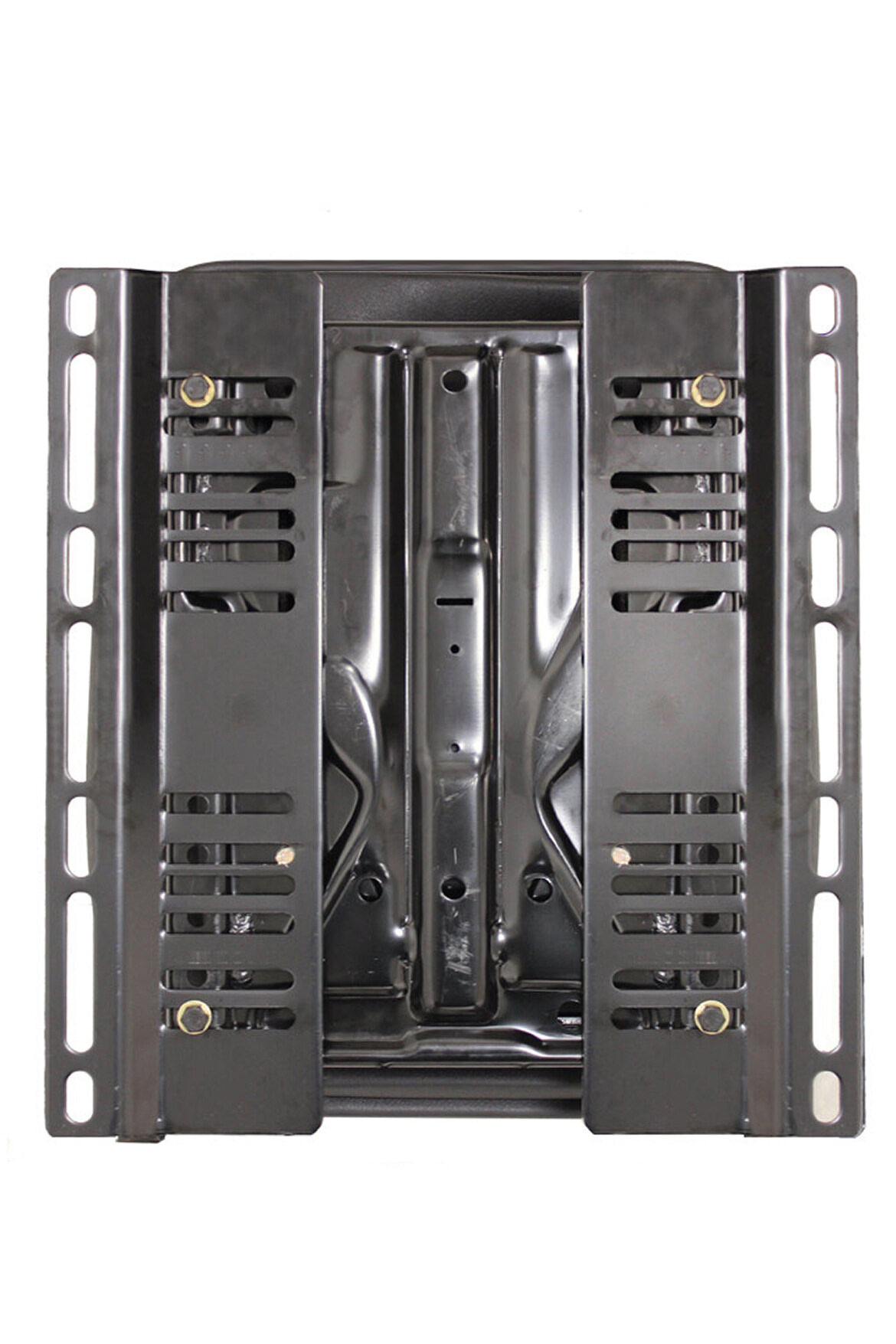

• Universal Mounting Plates Installed on the Seat


Bolt Pattern

• Mounting Plates (880-59) Shipped with Seat

• Side to Side - Adjustable from a Minimum of 346mm (13-5/8") to a Maximum of 467mm (18-3/8")
• Front to Back - Various up to 406mm (16")

Industry Standards

• Operator Seat Vibration: ISO 7096
• Seat Belt Anchor: ISO 6683
• Flammability: FMVSS 302


Replacement For

• Caterpillar Seat Group Numbers: 356-1963, 356-1226
