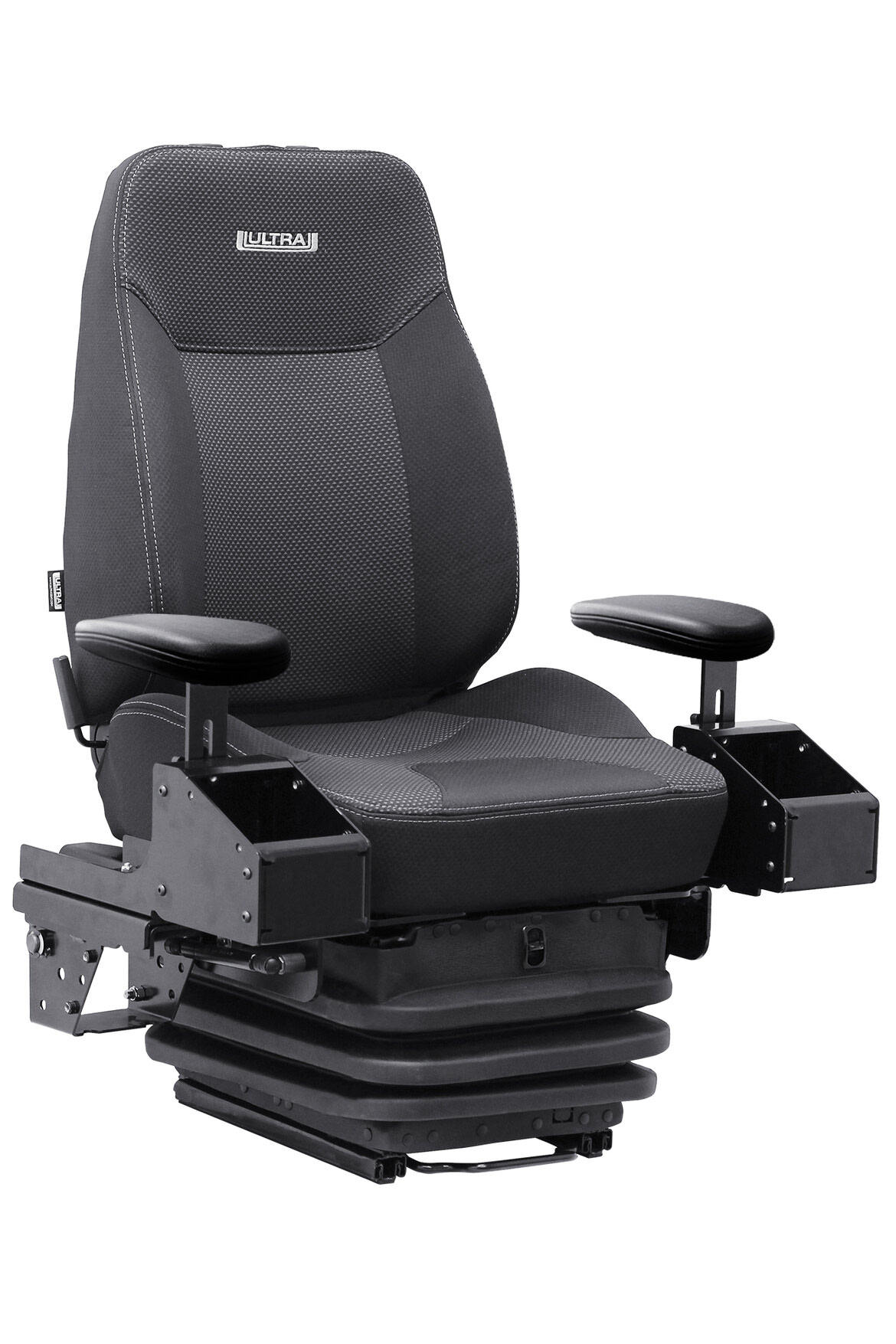

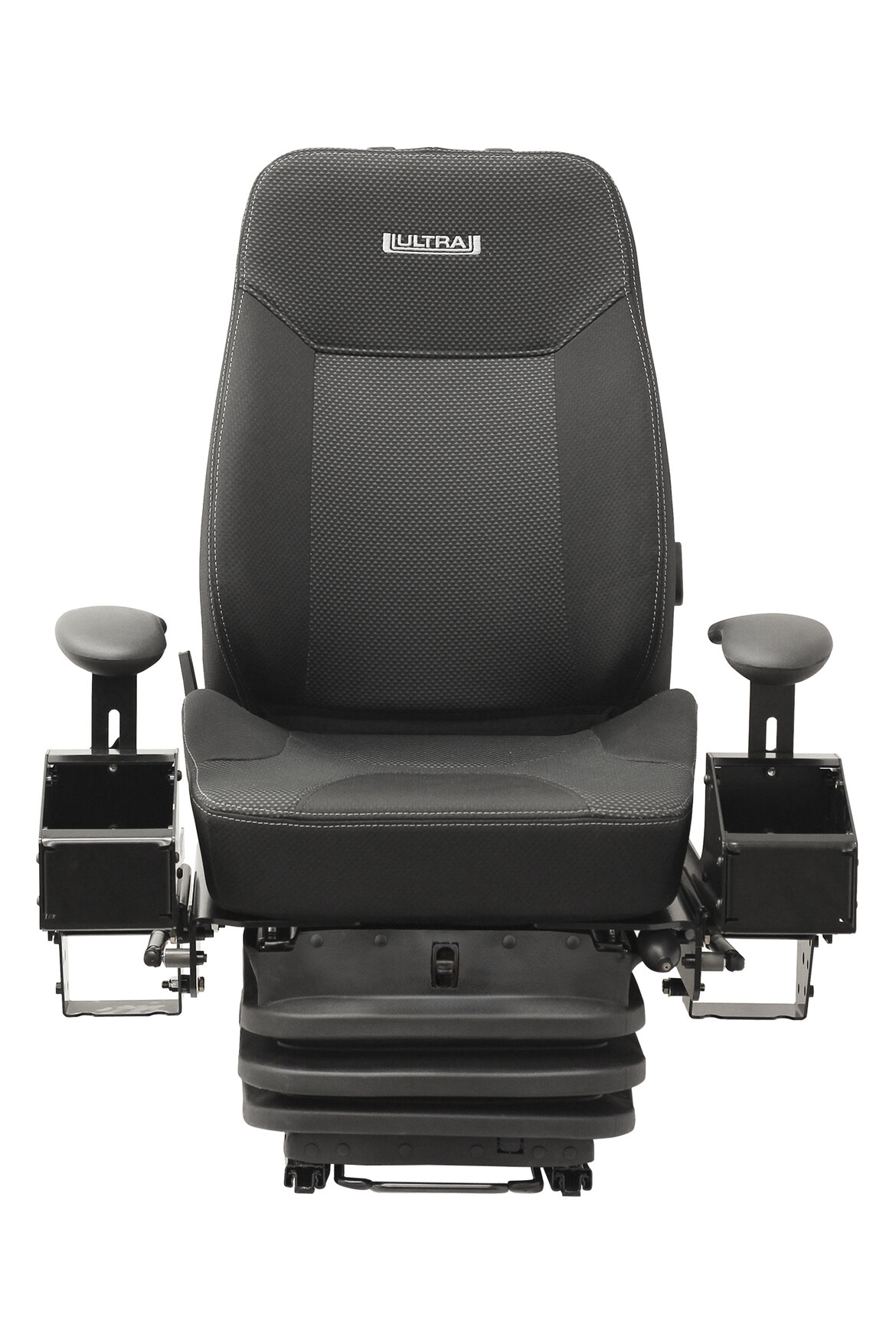

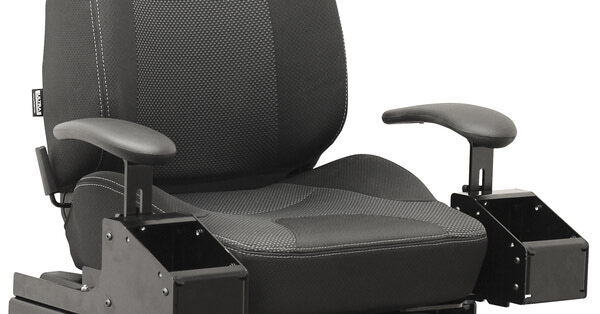

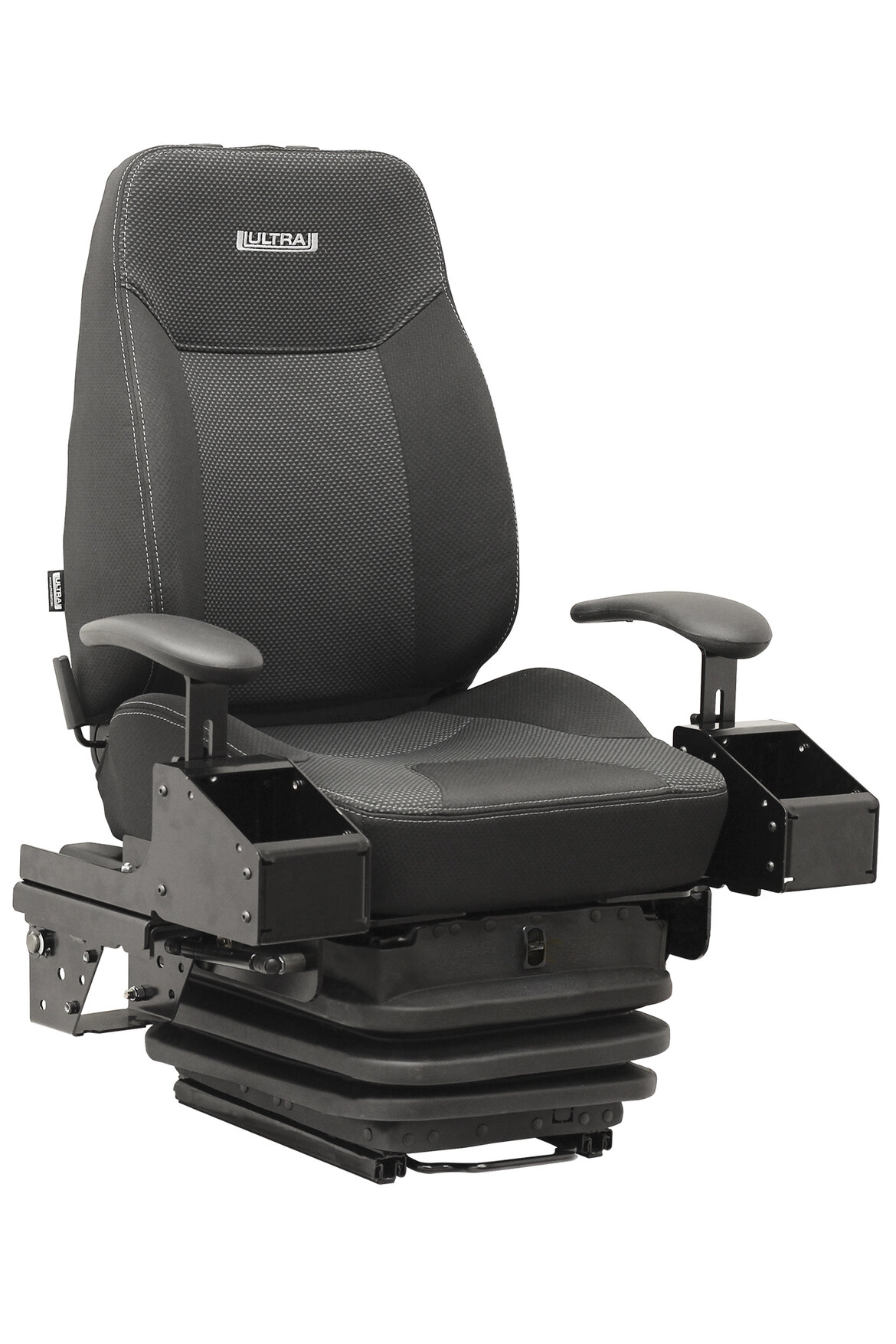

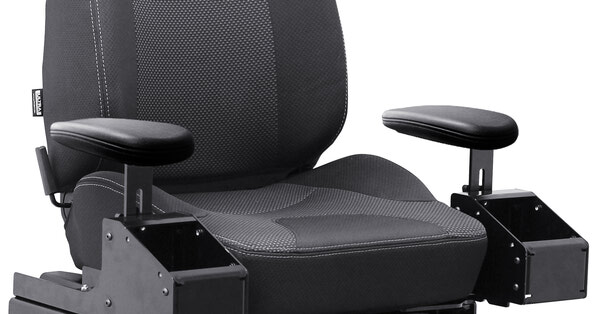

T876PC Air Suspension Pod Seat

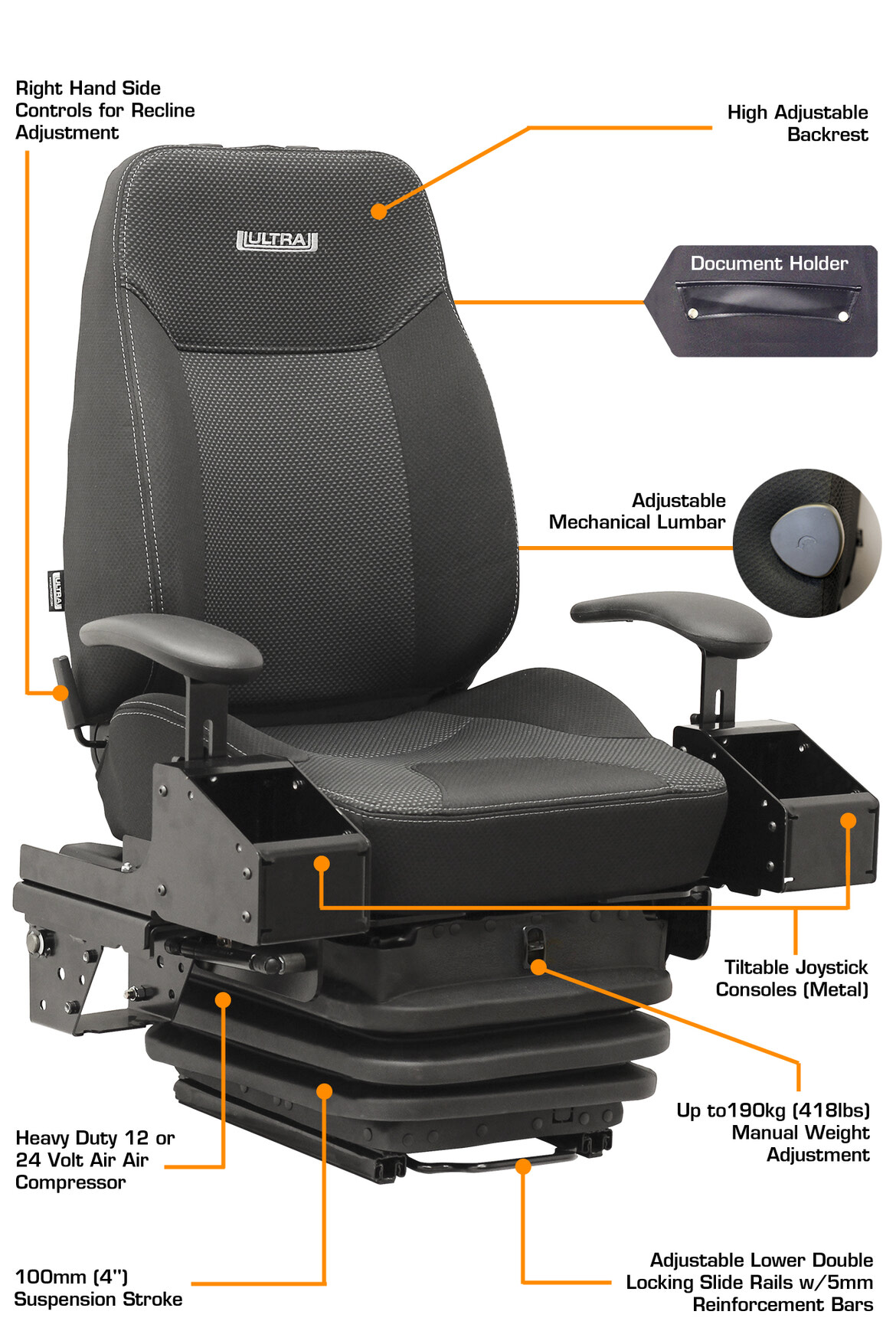

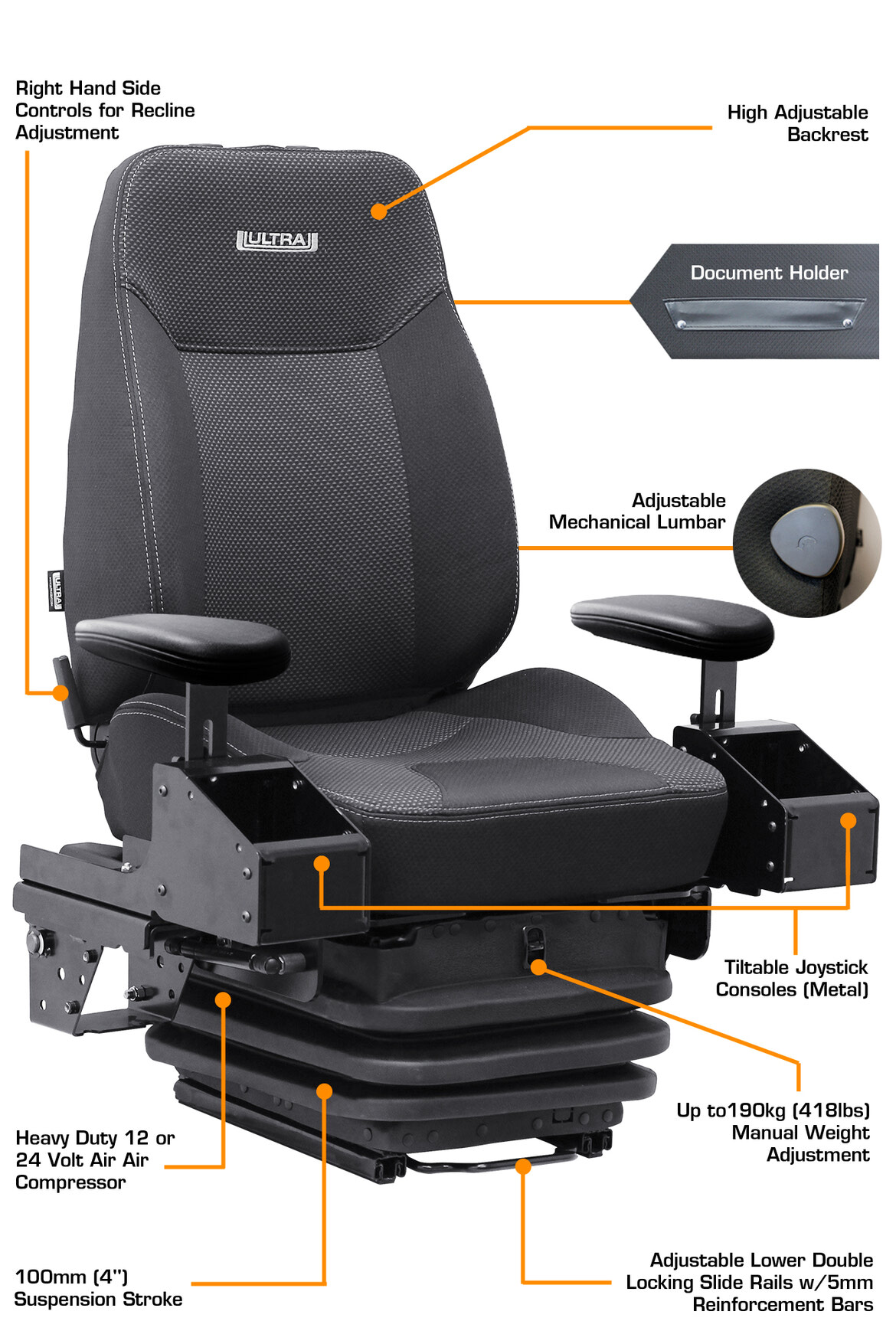

Features
- High Adjustable Backrest
- Right Hand Side Control for Recline Adjustment
- Adjustable Mechanical Lumbar
- Document Holder
-
Tilt-able Joystick Consoles (Metal)
- Heavy Duty 12 or 24 Volt Air Ride Suspension
- Up to 190kg (418lbs) Manual Weight Adjustment
- 100mm (4") Suspension Stroke

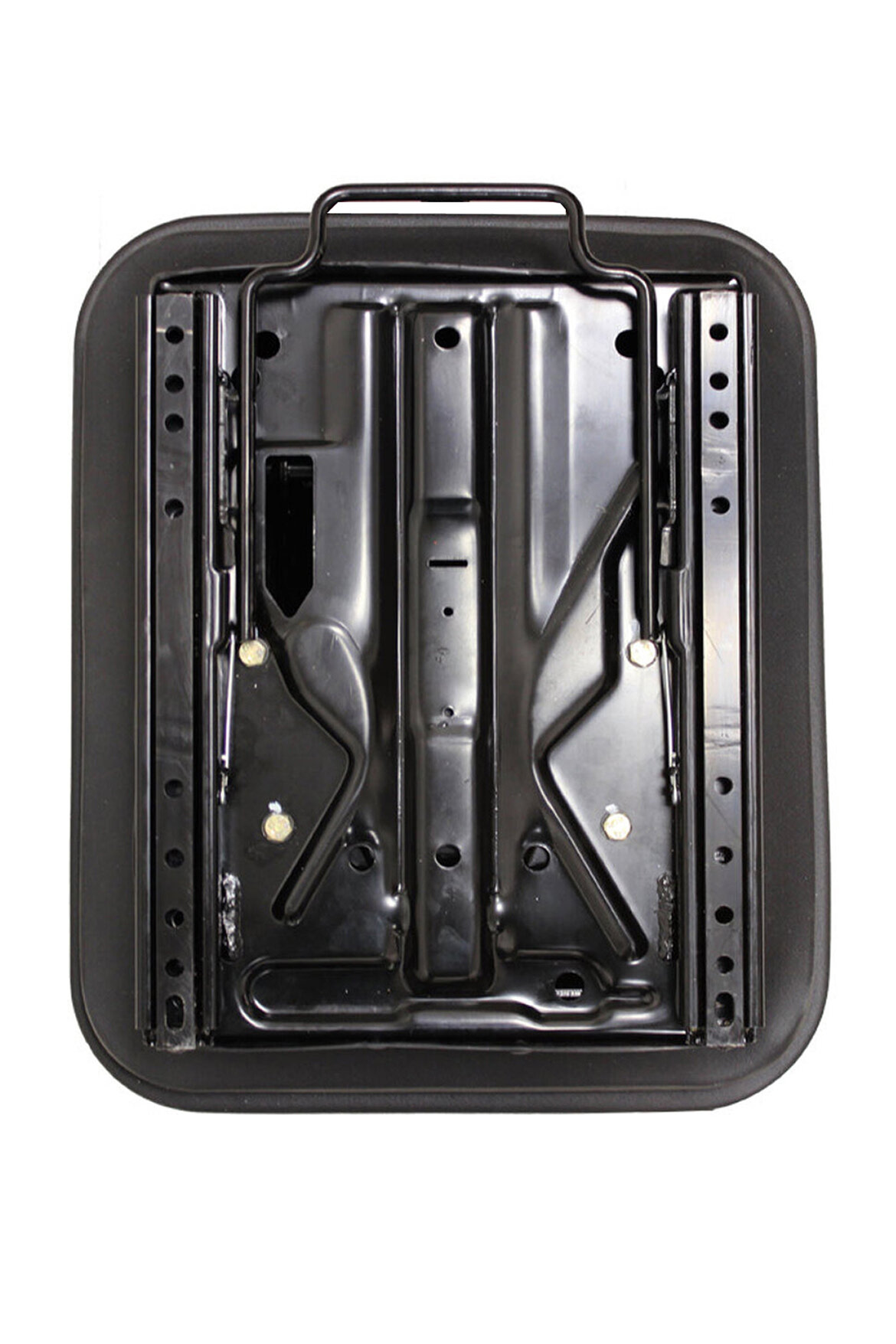

- Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars
Bolt Pattern
-
279mm (11”) Side to Side
-
229/254/279/305 mm Front to Back
- Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)
Industry Standards
-
Operator Seat Vibration: ISO 7096
-
Flammability: FMVSS 302
-
Seat Belt Anchor: ISO 6683
