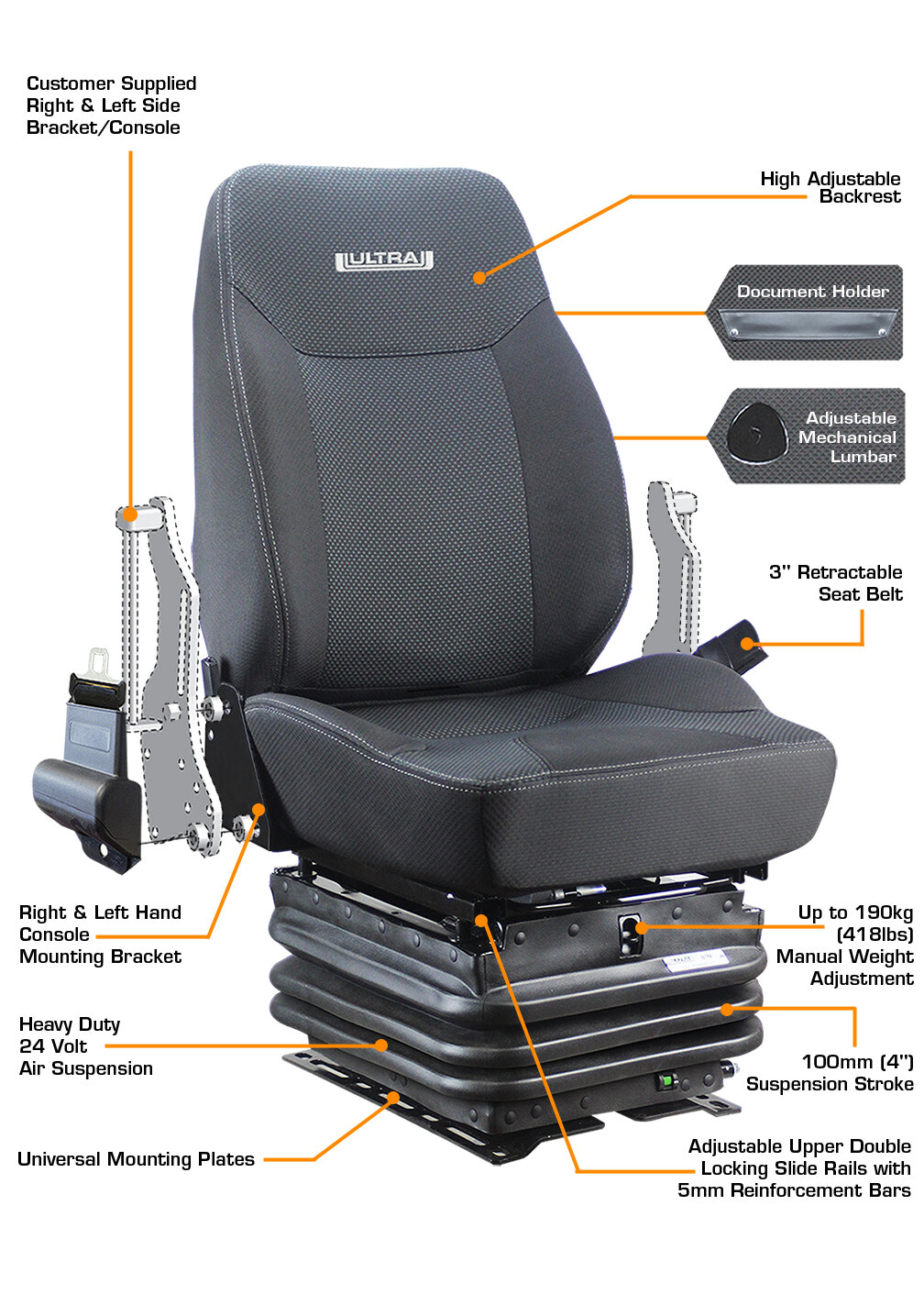

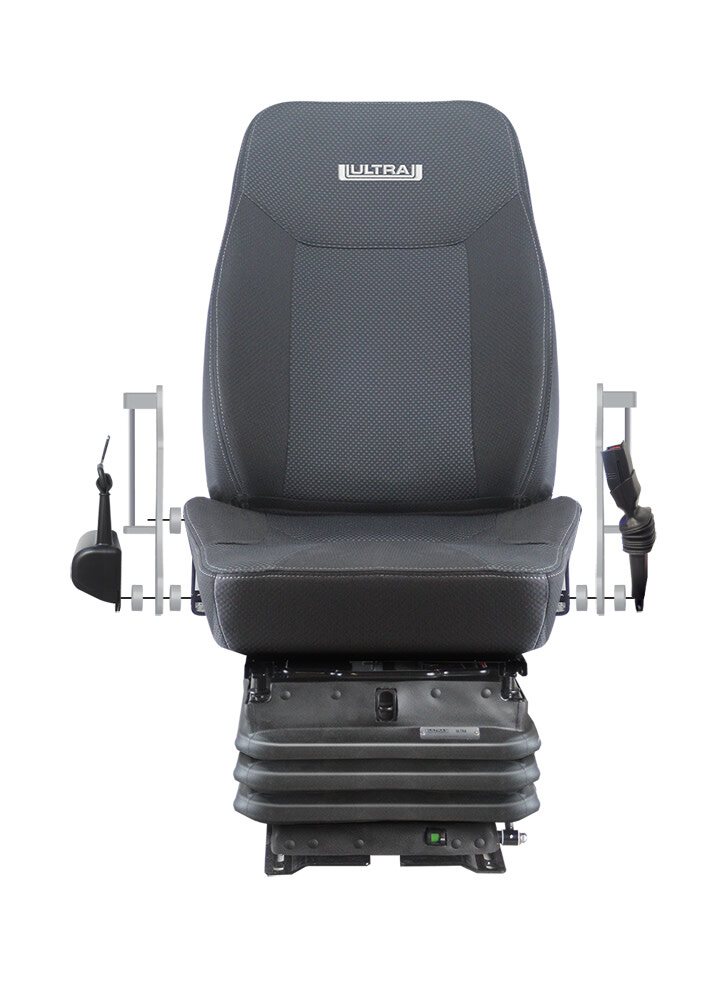

T878C Volvo 3 JS Air Suspension Seat
Features
- High Adjustable Backrest
- Right-hand side Control for Recline Adjustment
- Adjustable Mechanical Lumbar
- Document Holder

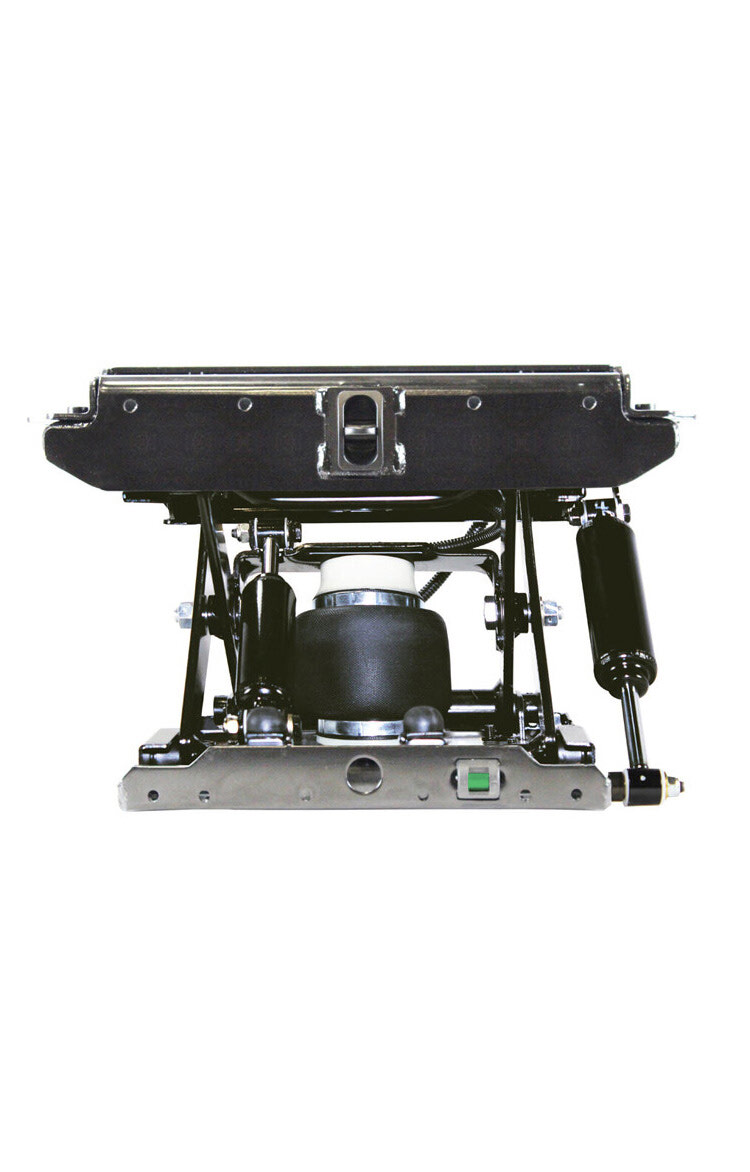

- Heavy Duty 24 Volt Air Suspension
- Up to 190kg (418lbs) Manual Weight Adjustment
- Double Dampers
- Adjustable Upper Double Locking Slide Rail with 5mm Reinforcement Bars
- 100mm (4”) Suspension Stroke
- 3” Retractable Seat Belt

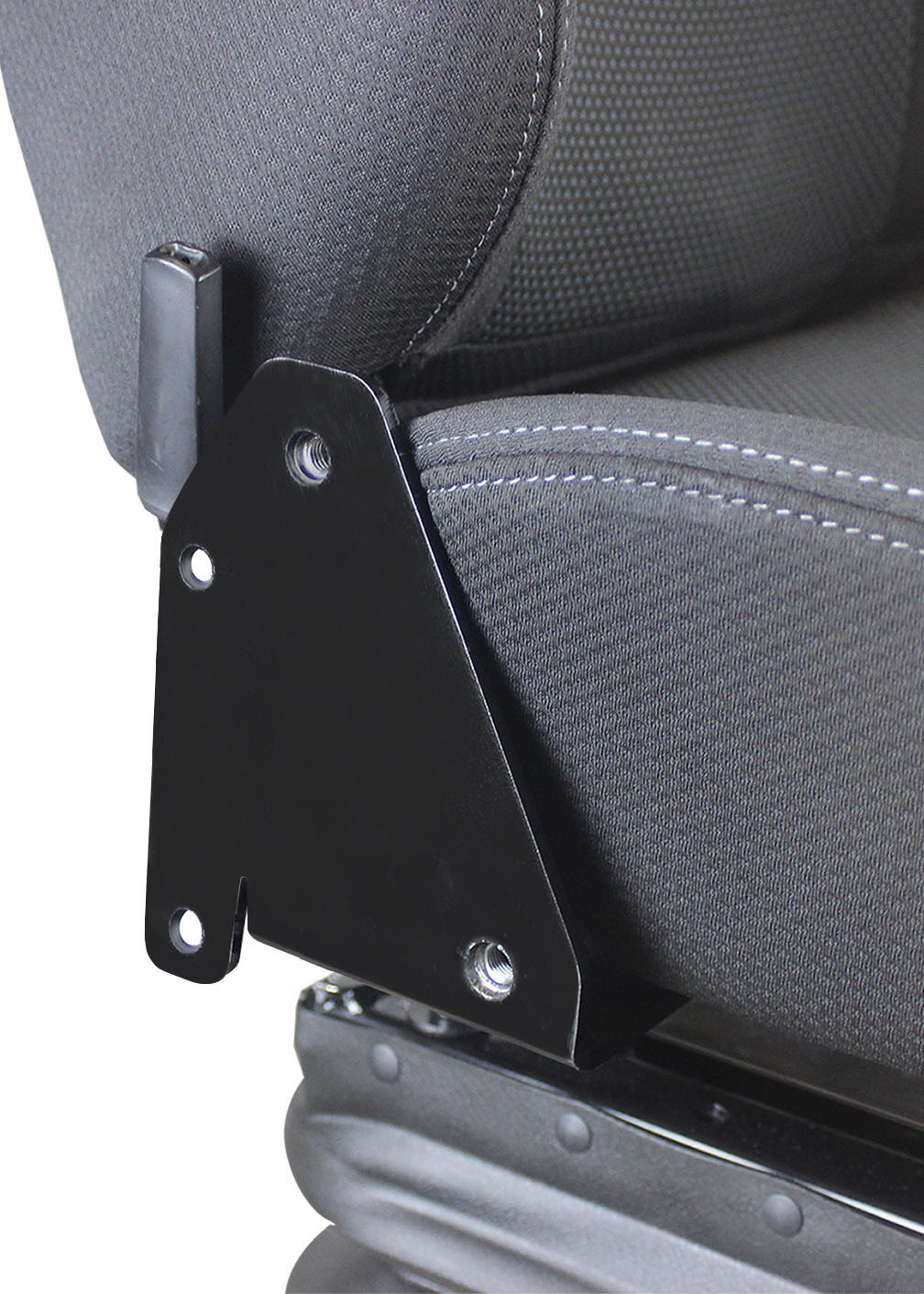

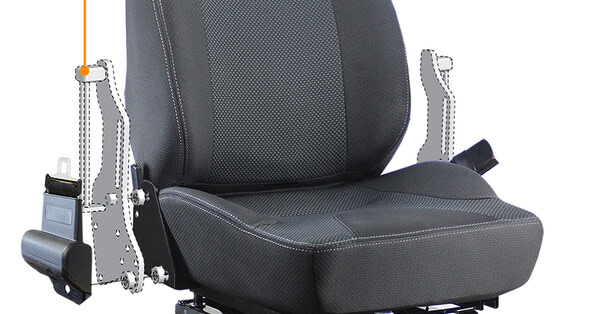

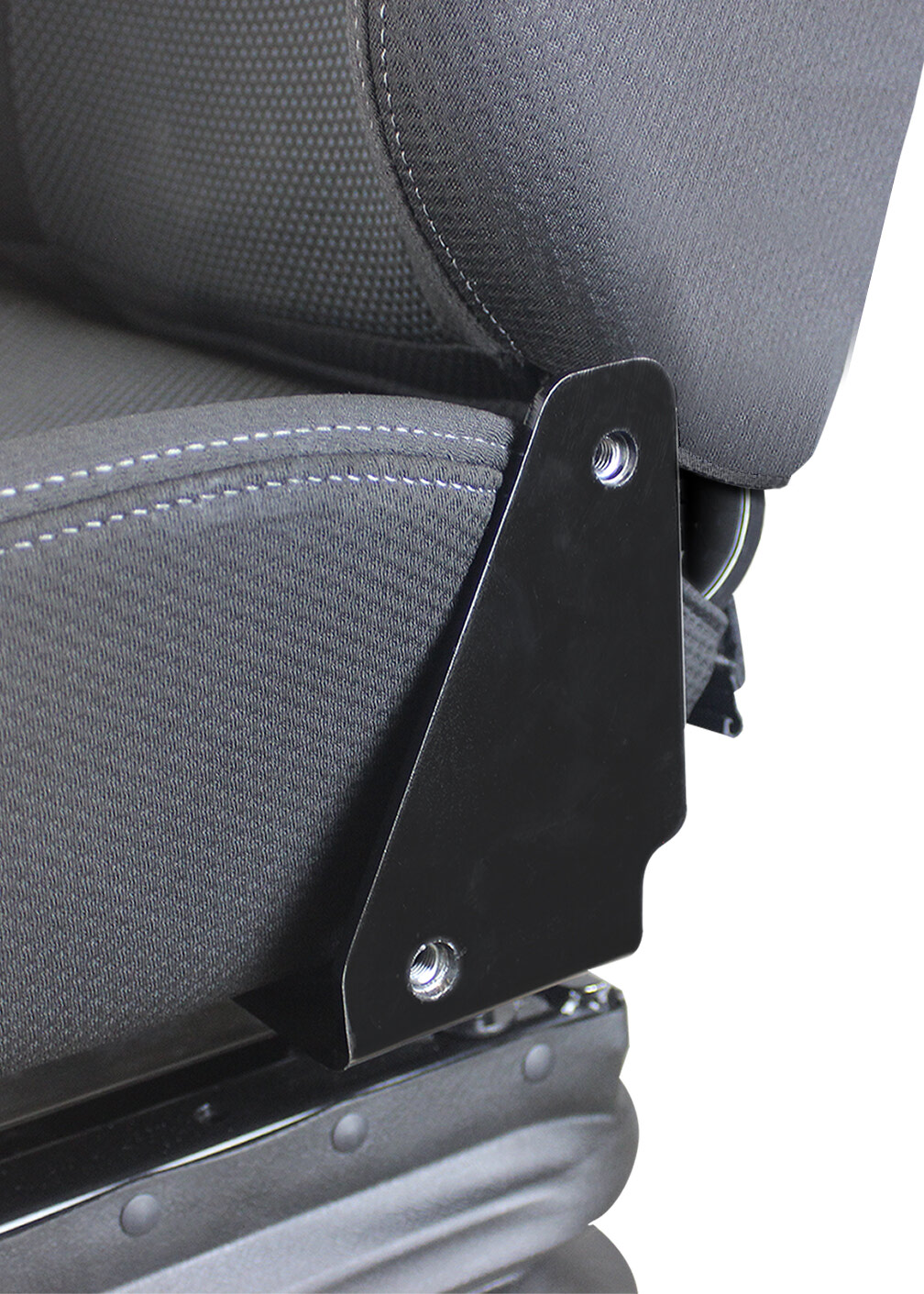

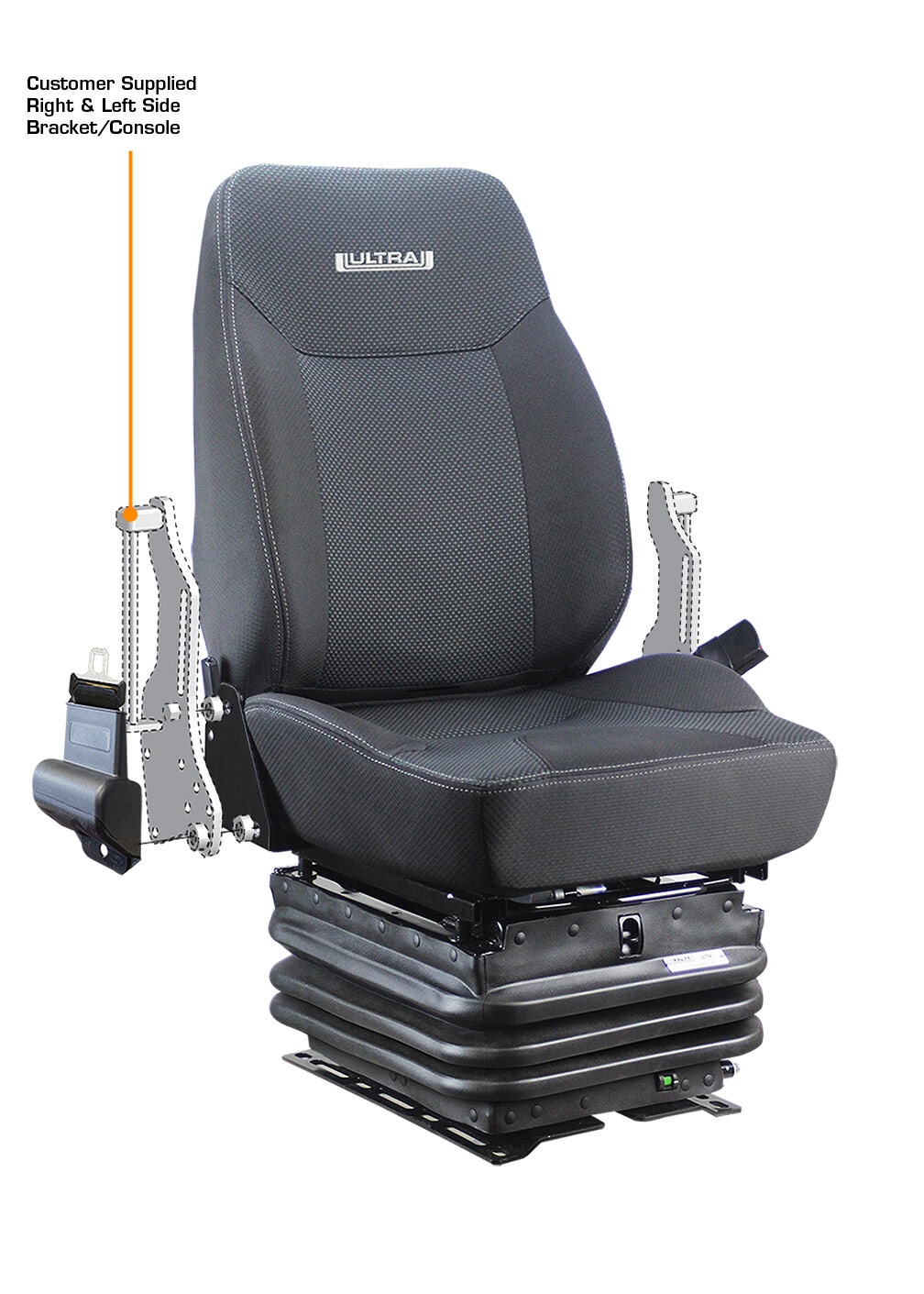

- Right & Left-Hand Console Mounting Bracket

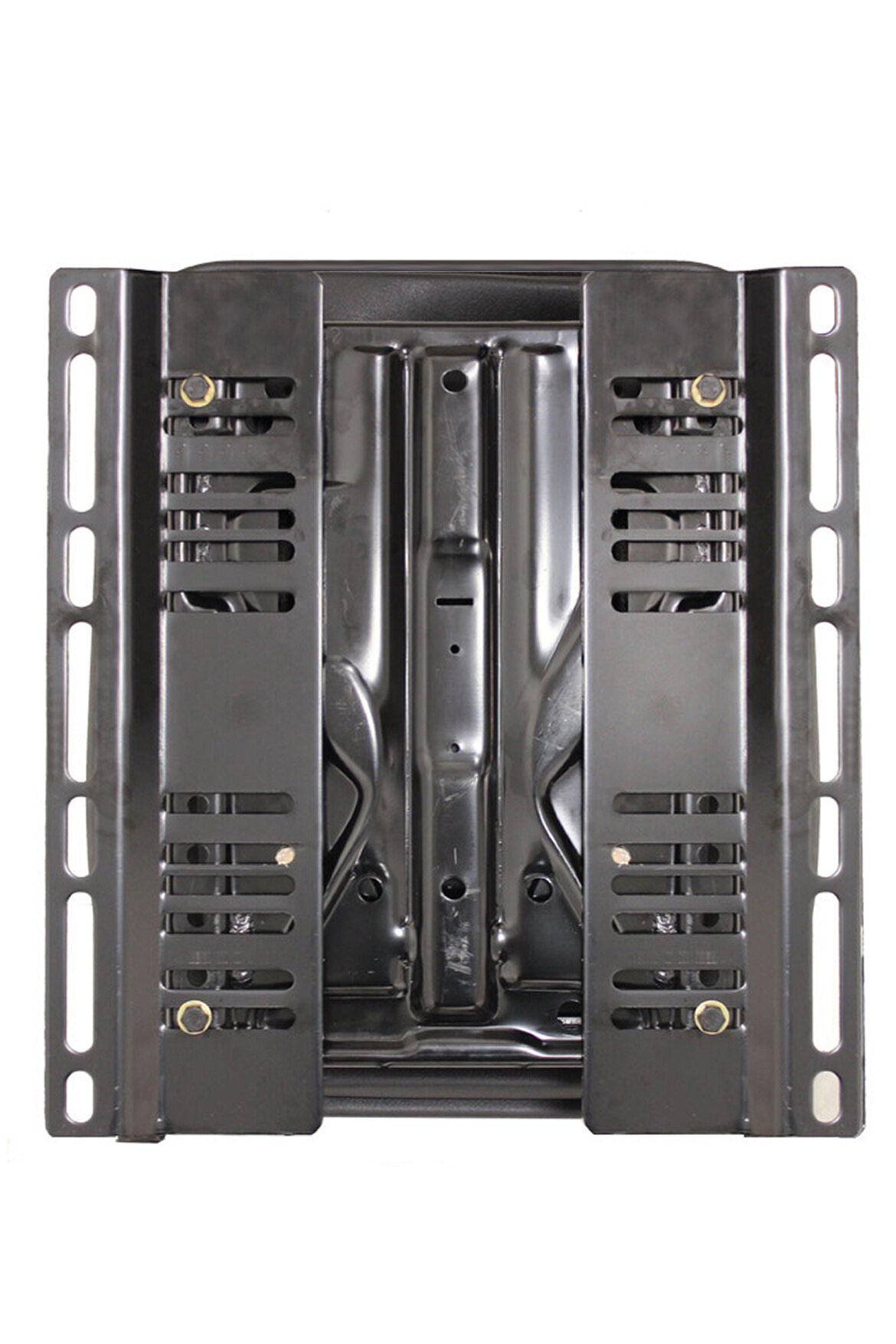

- Universal Mounting Plates
Bolt Pattern
- Mounting Plates (88059) Shipped With Seat
- Side to Side - Adjustable From a Minimum of 273mm (10 3/4") to a Maximum of 363mm (14 5/16")
- Front to Back - Various up to 406mm (16")
Industry Standards
-
Operator Seat Vibration: ISO 7096
-
Flammability: FMVSS 302
-
Seat Belt Anchor: ISO 6683
