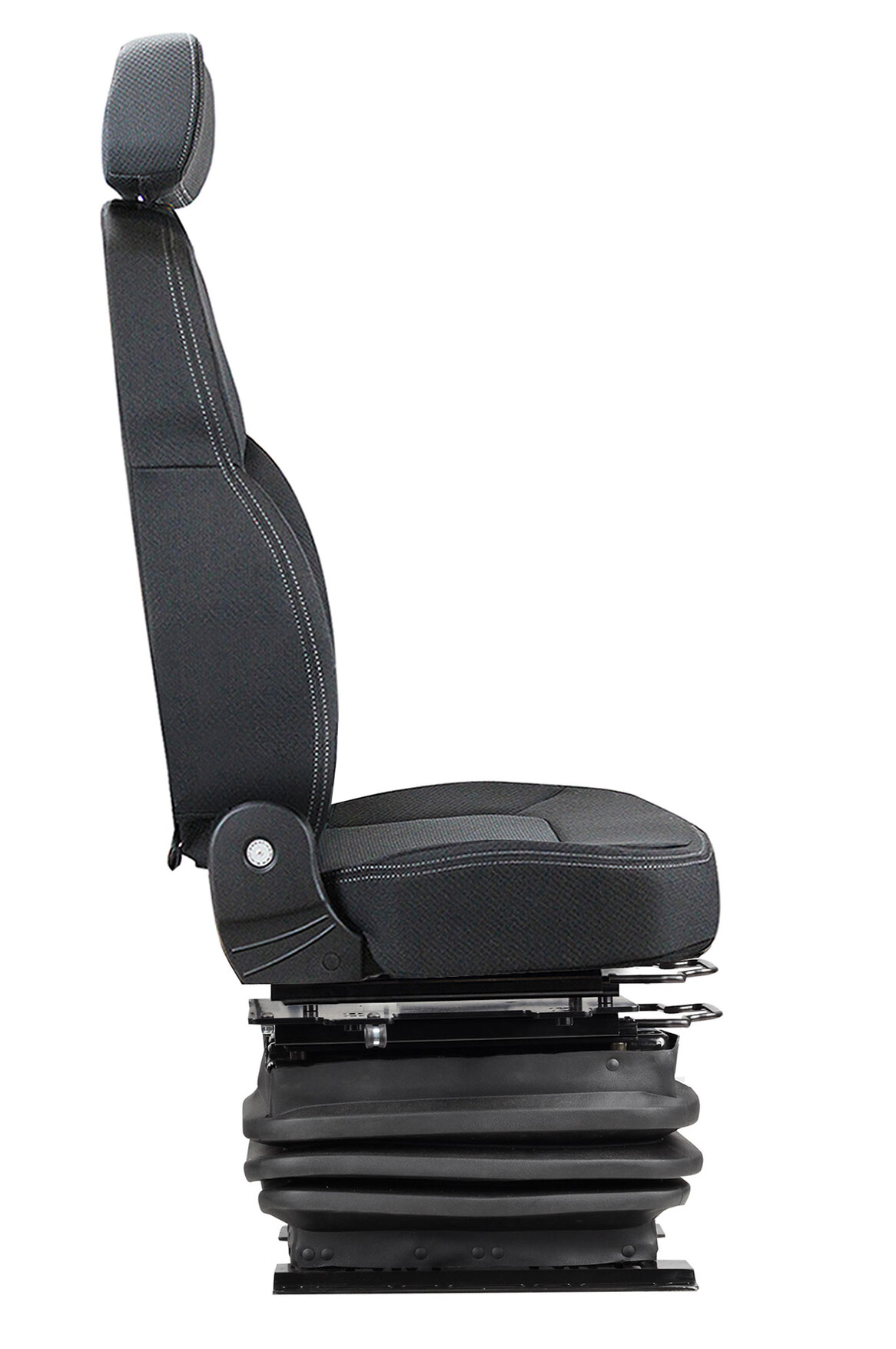

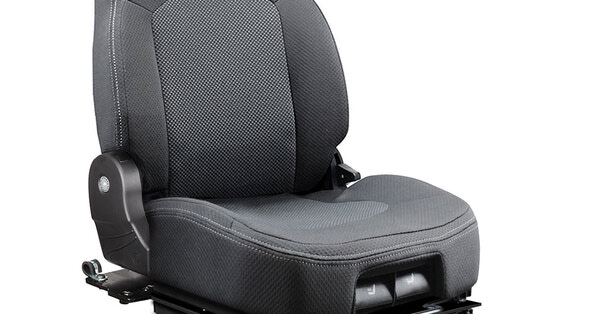

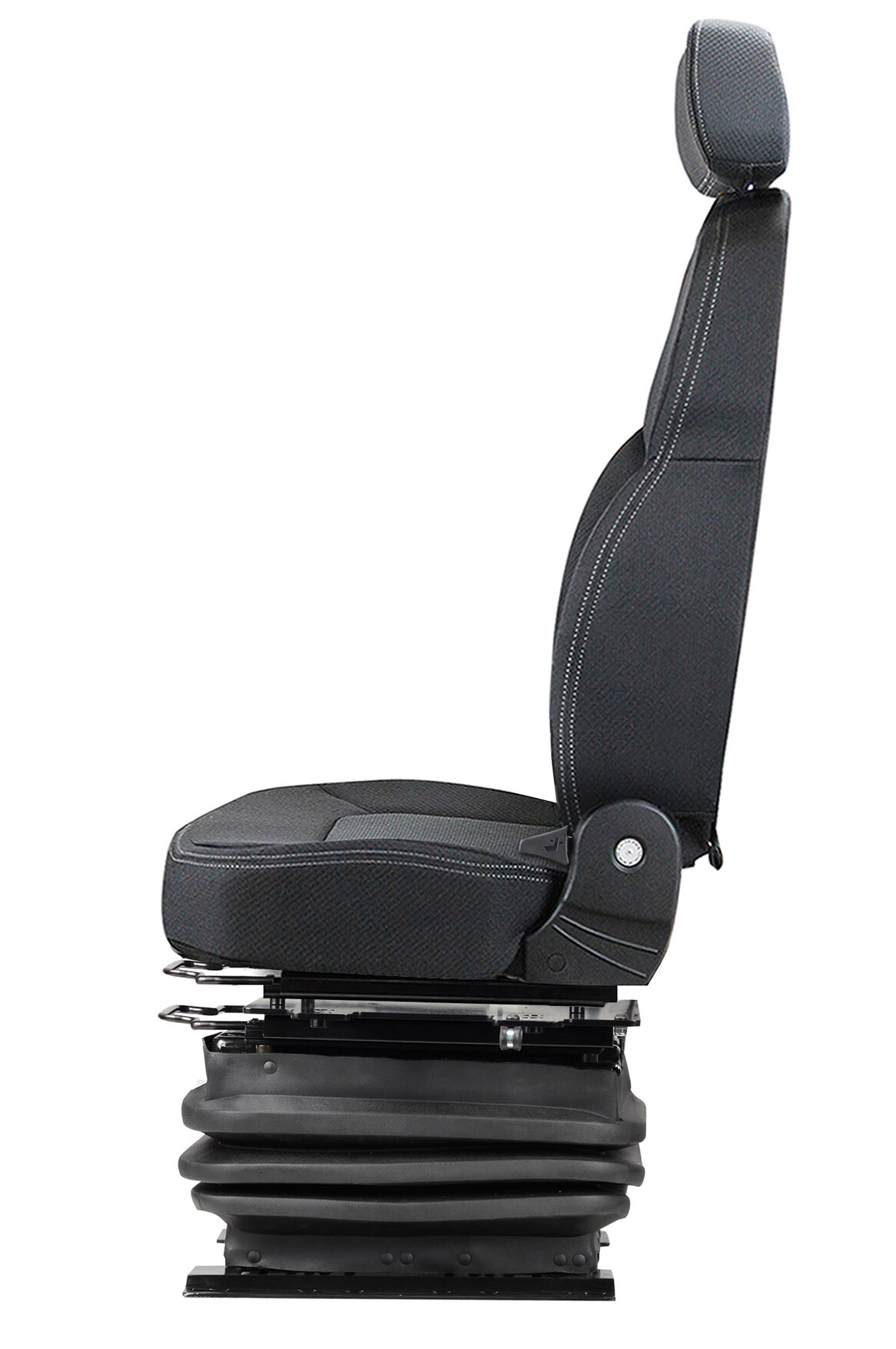

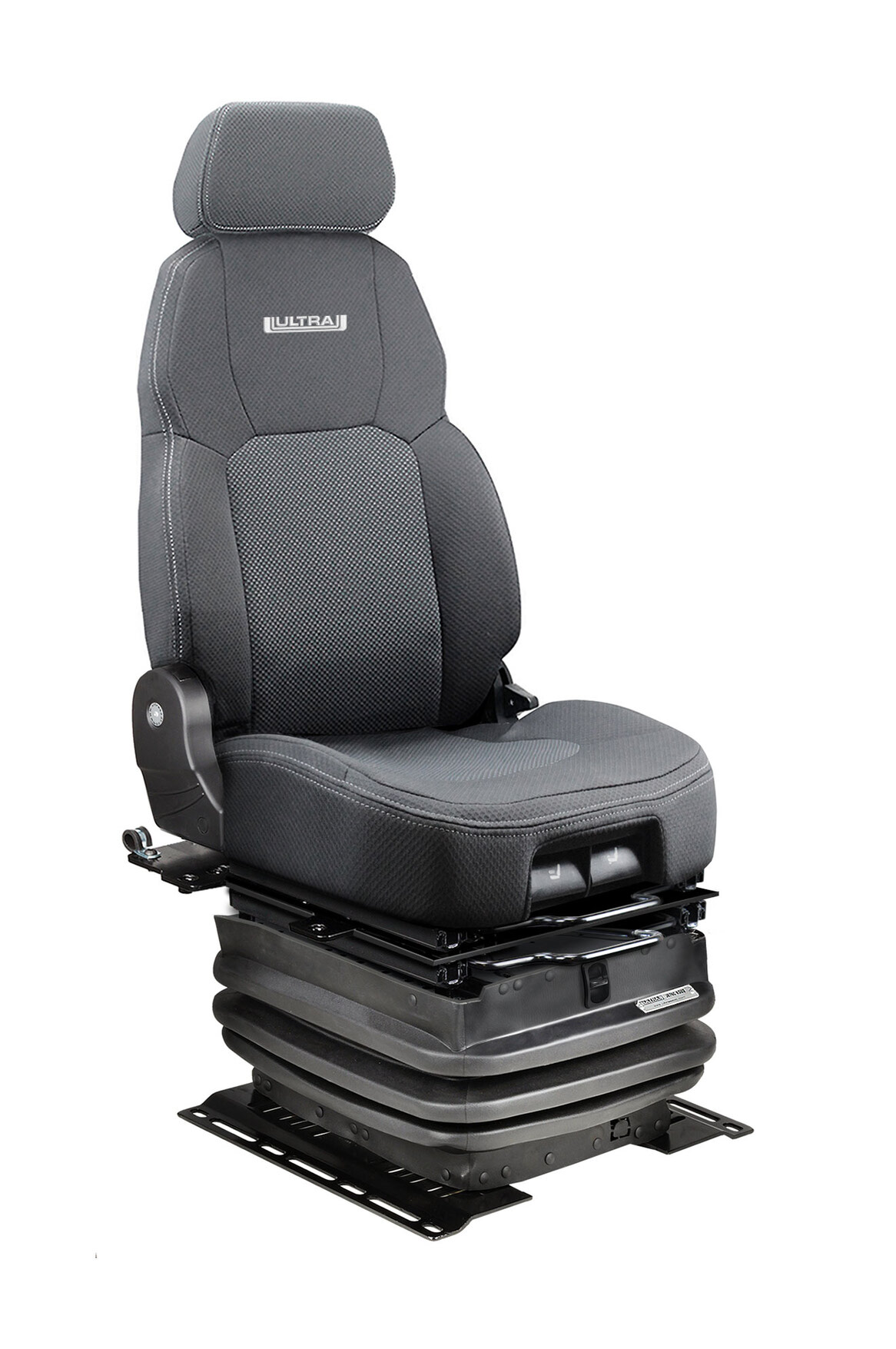

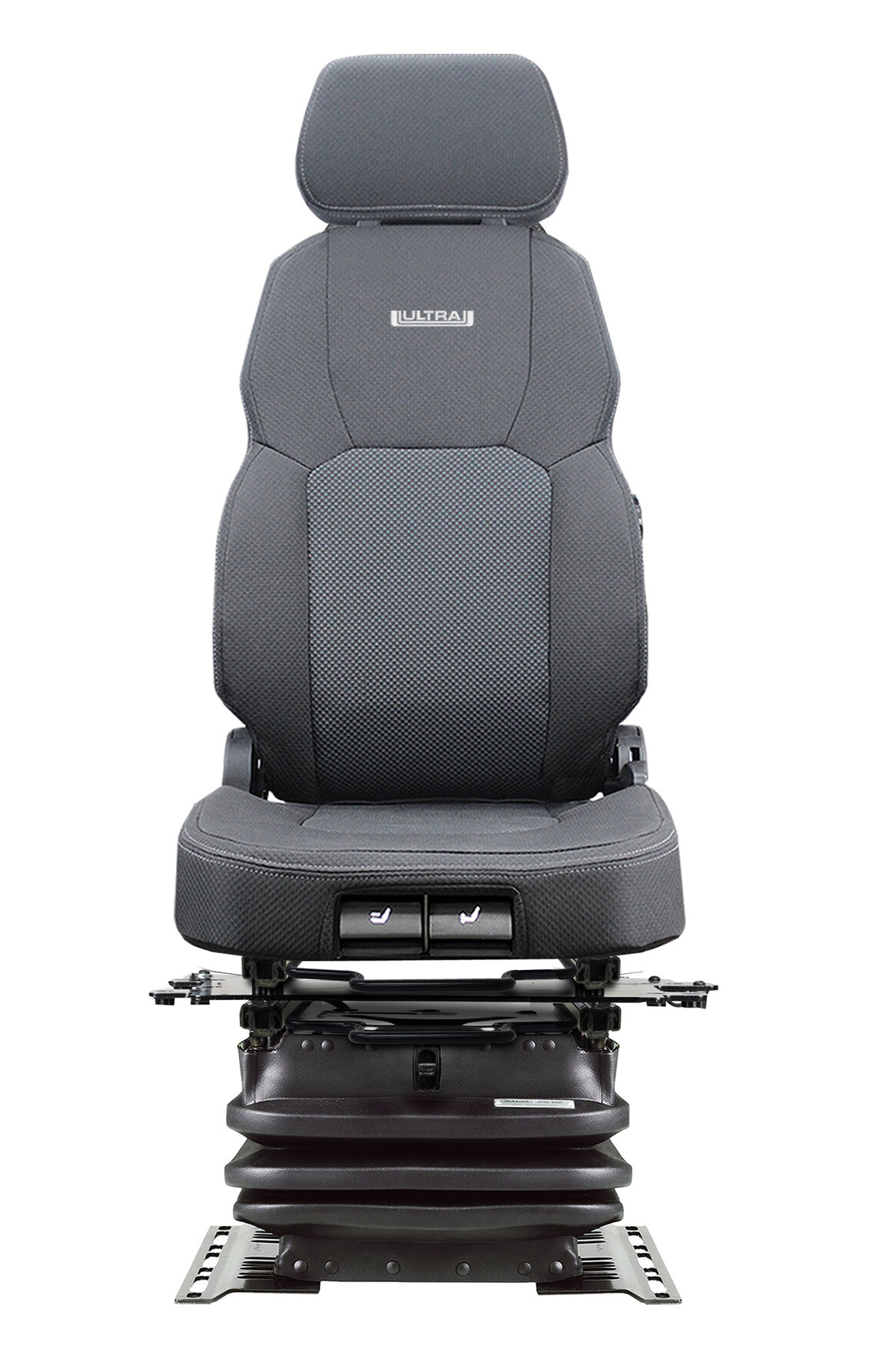

V876C KSU2 Komatsu Excavator Air Suspension Seat

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN SELECT YOUR SEAT BELT
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal

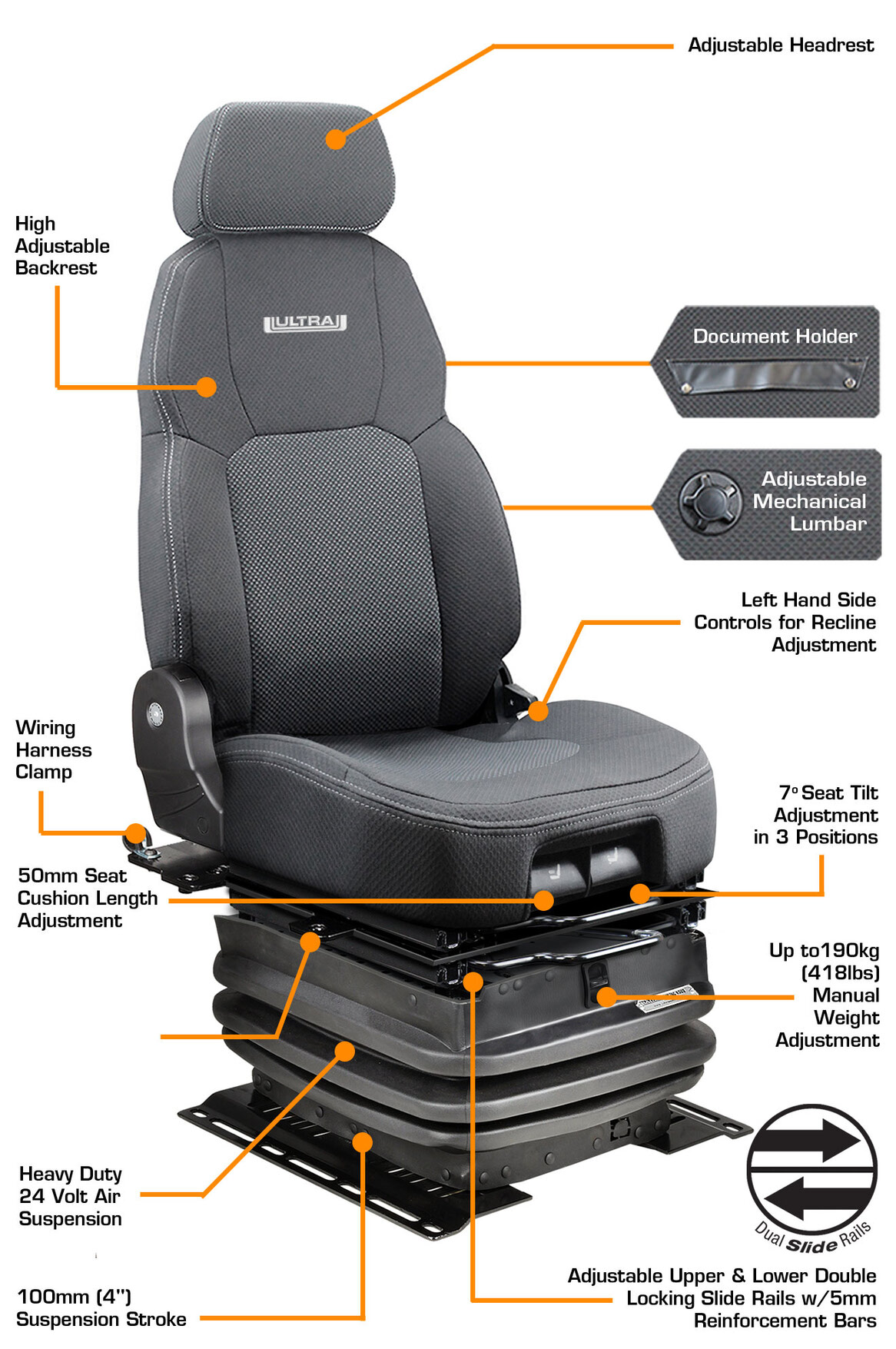

Features

  • High Adjustable Backrest
  • Left Hand Side Control for Recline Adjustment
  • Adjustable Mechanical Lumbar
  • Adjustable Headrest
  • Document Holder
  • 7° Seat Tilt Adjustment in 3 Positions
  • 50mm Seat Cushion Length Adjustment
  • Heavy Duty 24 Volt Air Suspension
  • Up to 190kg (418lbs) Manual Weight Adjustment
  • 100mm (4”) Suspension Stroke
  • Dual Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars

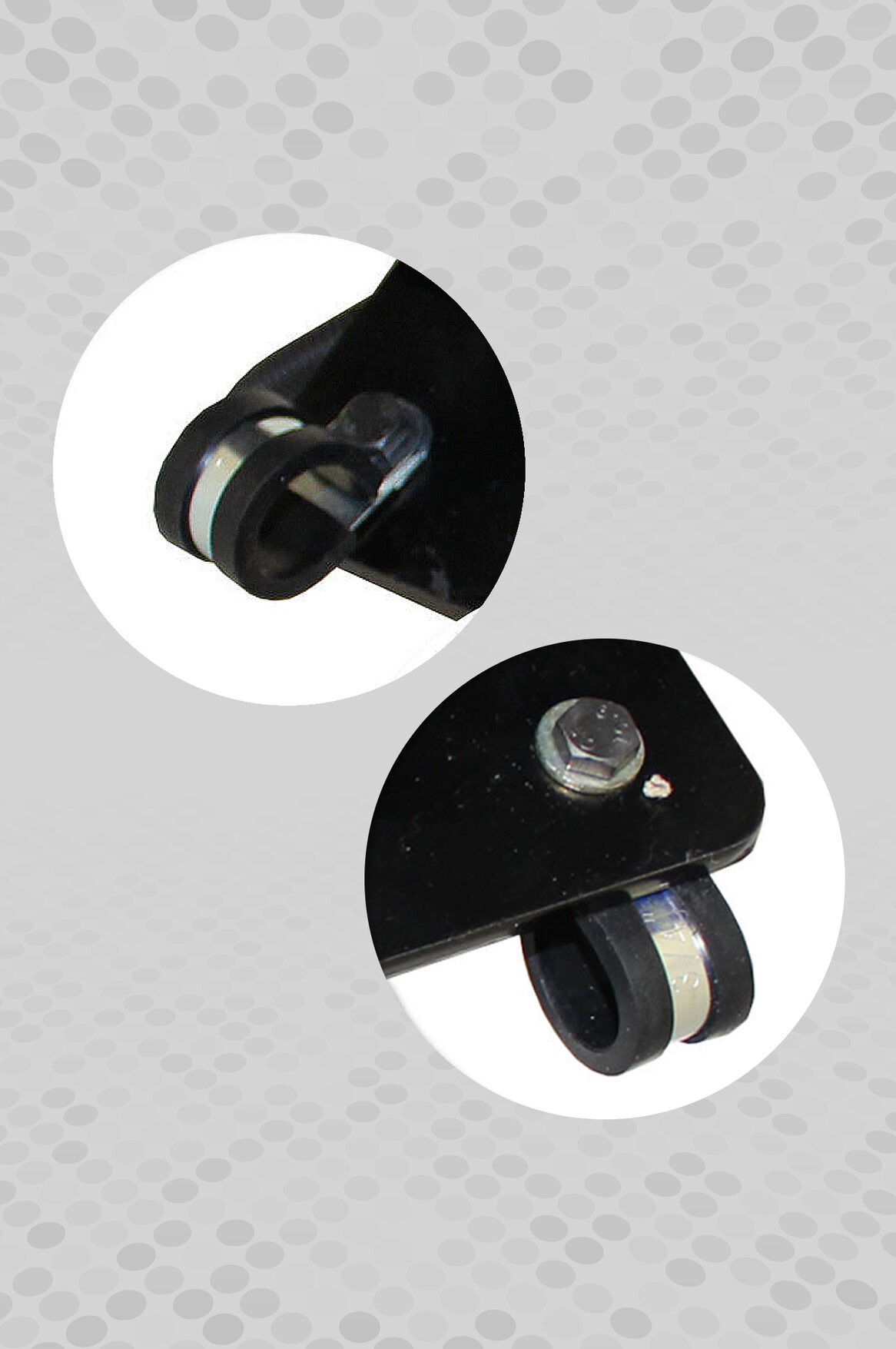

  • Wire Harness Clamps

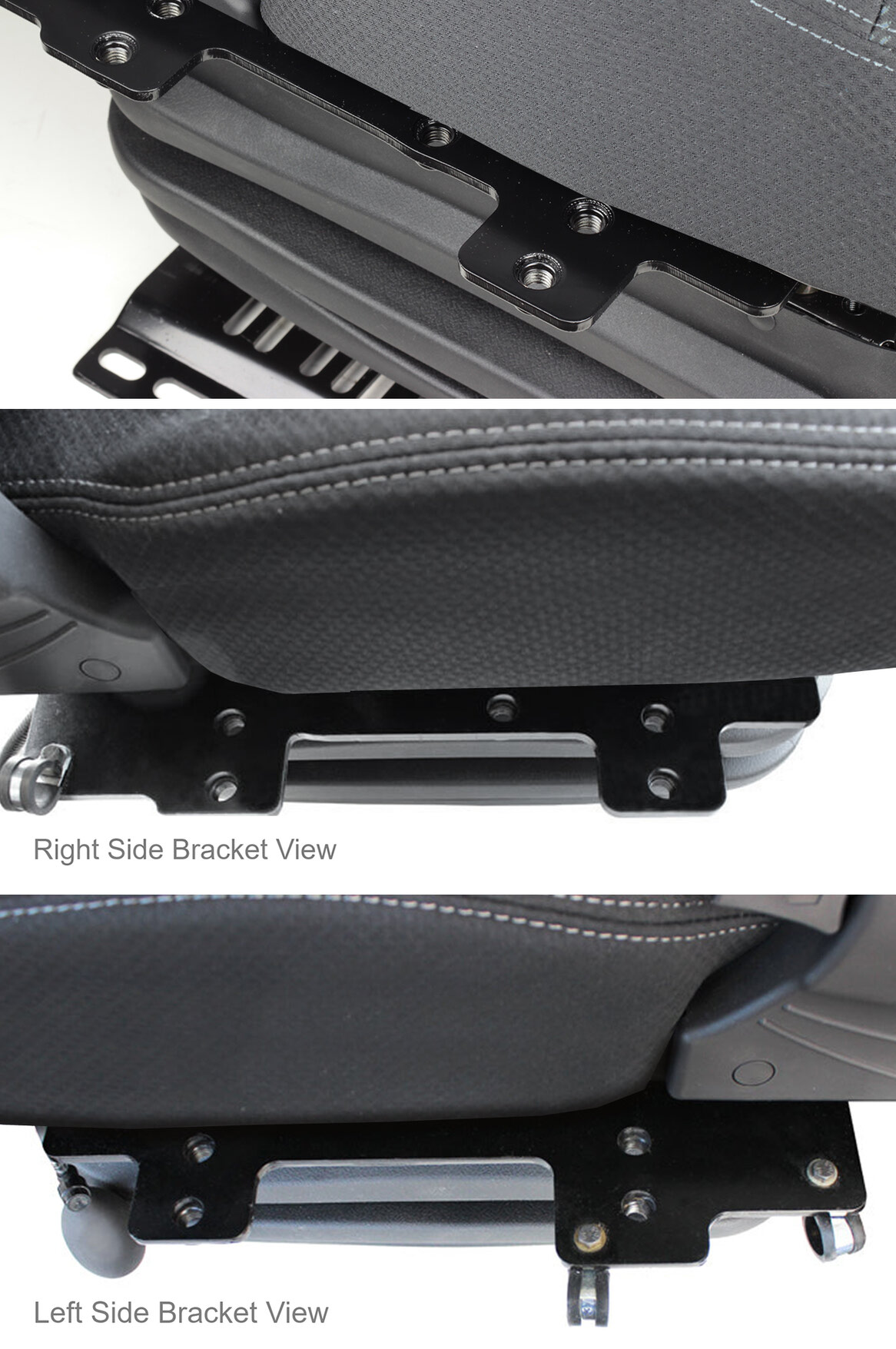

  • Includes: Joystick Console (Pod) Brackets
  • Universal Mounting Plates

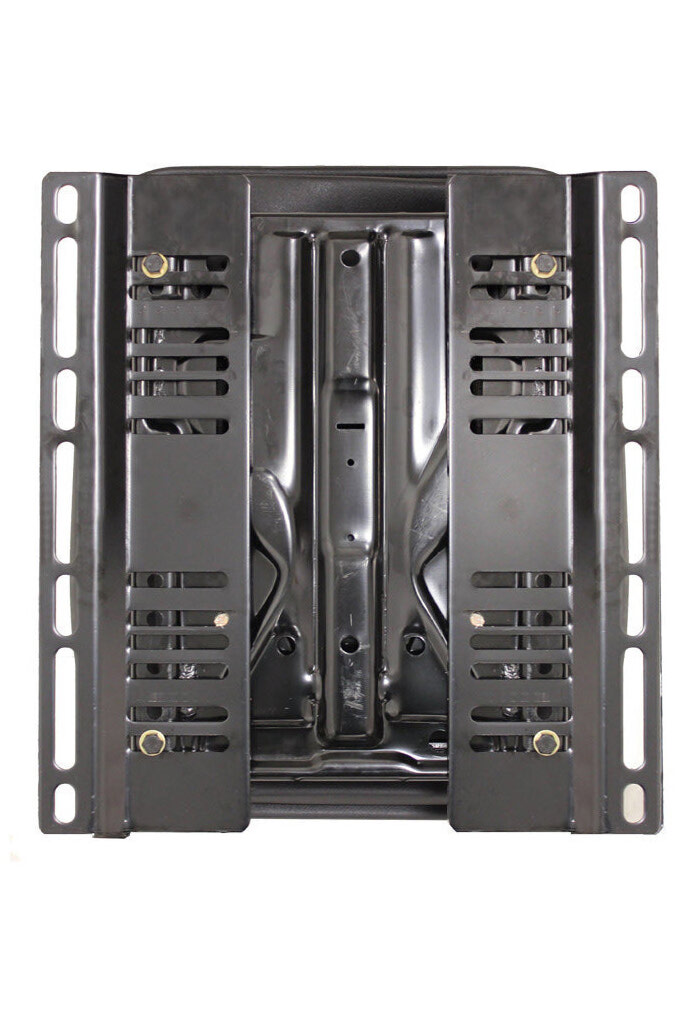

Bolt Pattern

  • Optional Mounting Plates (880-59) Shipped with Seat
  • Side to Side - Adjustable from a Minimum of 346mm (13-5/8") to a Maximum of 467mm (18-3/8")
  • Front to Back - Various up to 406mm (16")

Industry Standards

  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302
  • Seat Belt Anchor: ISO 6683

Replacement For

  • Komatsu Excavators, PC170LC-10, PC210LC-10, PC210LC-11, PC240LC-10, PC240LL-10, PC290LC-10, PC290LC-11, PC360LC-10, PC360LC-11, PC390LC-10, PC390LC-11, PC390LL-10, PC490LC-10, PC490LC-11. All Komatsu Excavators with seat assembly 2A5-57-11293
