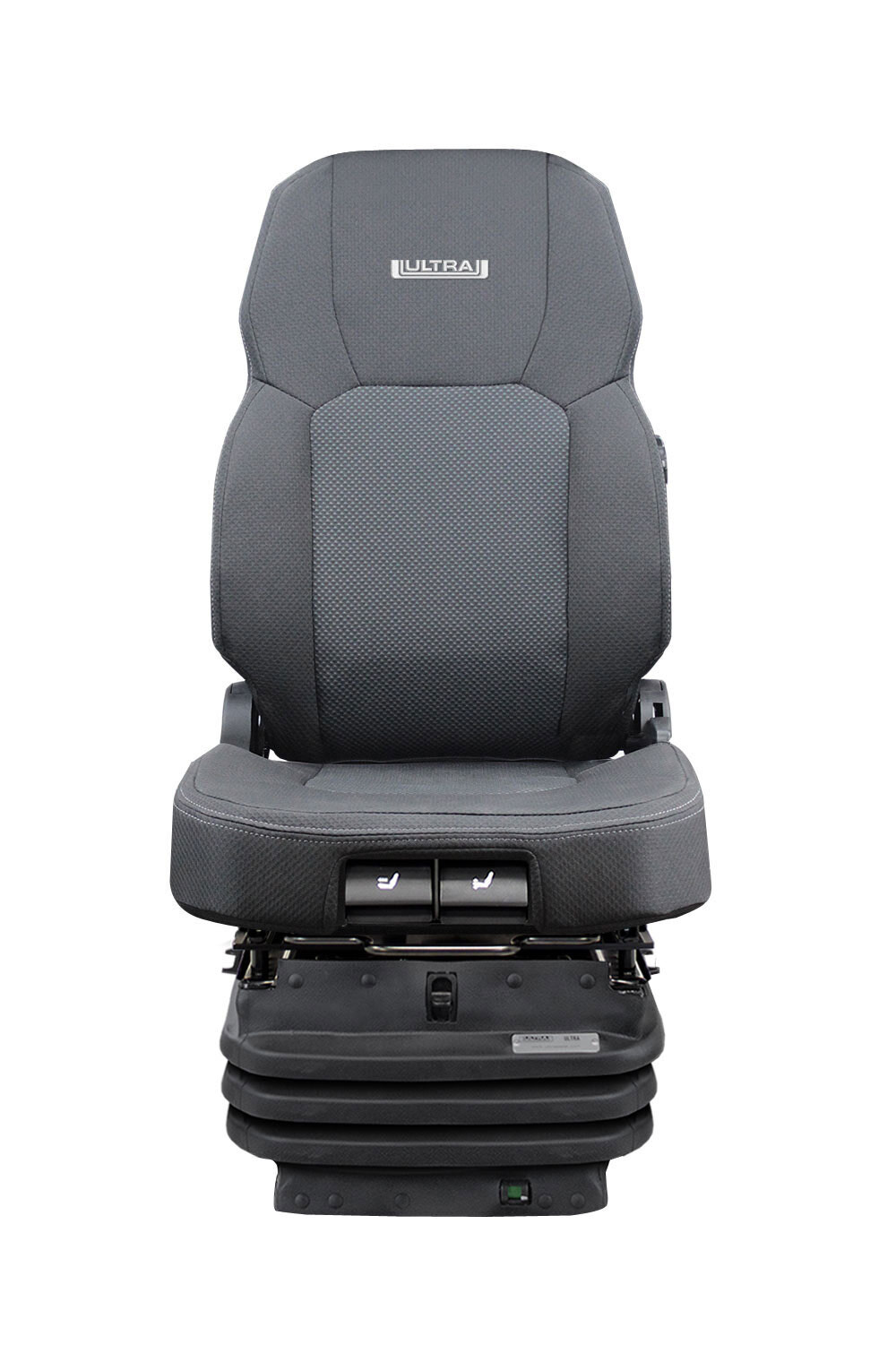

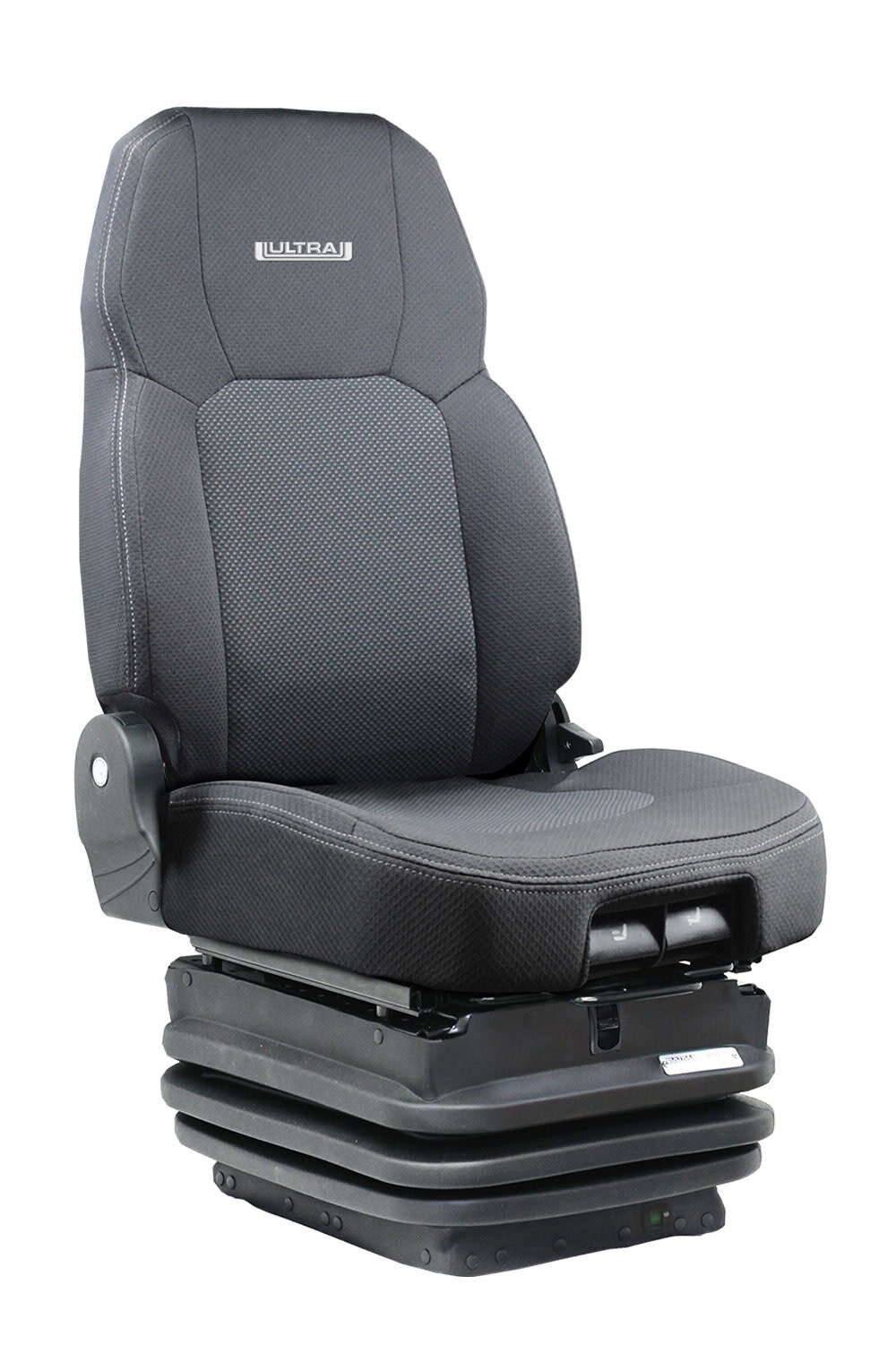

V876CHD Air Suspension Seat with Double Dampers

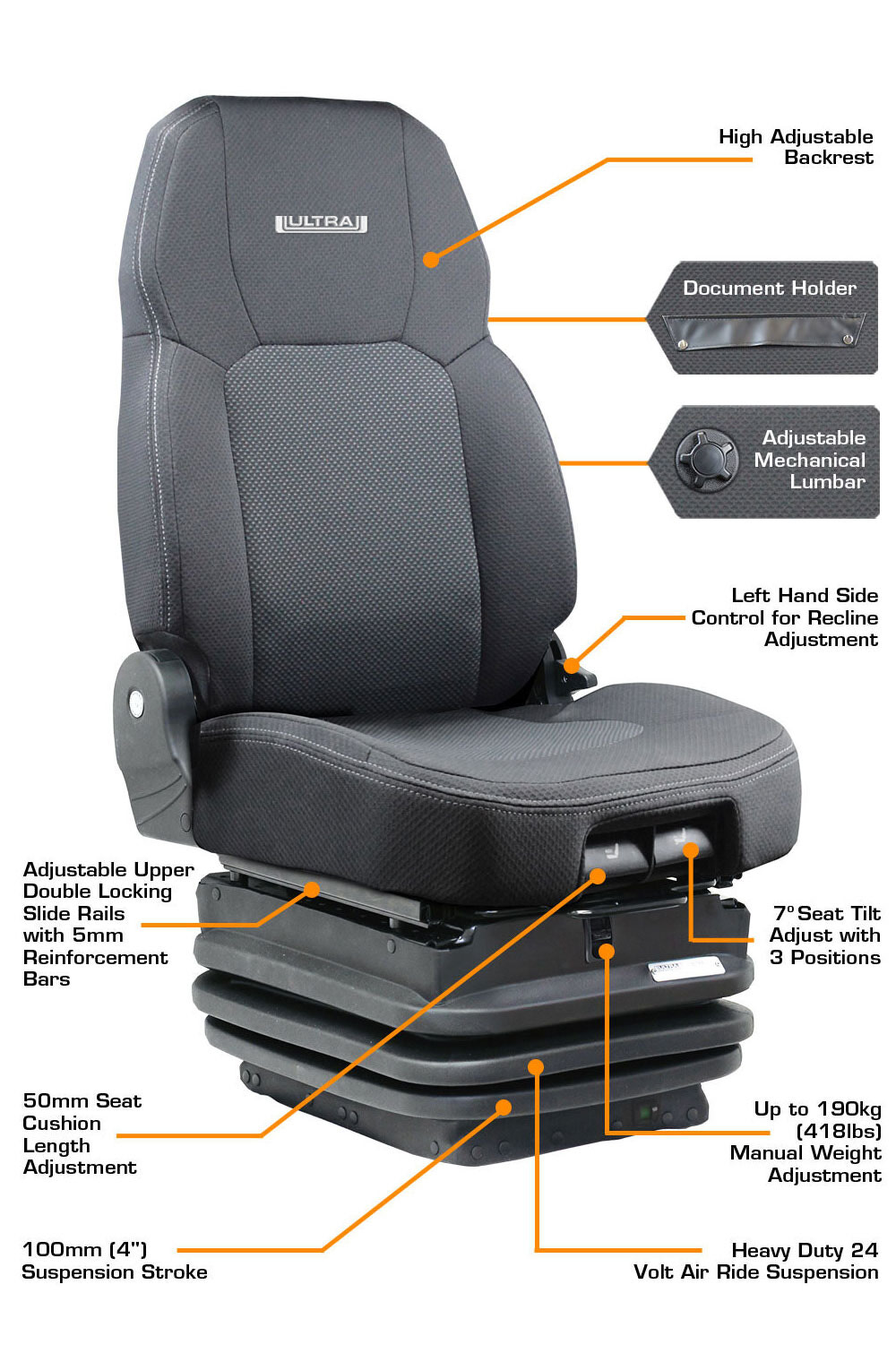

Features
- High Adjustable Backrest
- Left Hand Side Control for Recline Adjustment
- Document Holder
- Adjustable Mechanical Lumbar
- 7° Seat Tilt Adjustment in 3 Positions
- 50mm Seat Cushion Length Adjustment

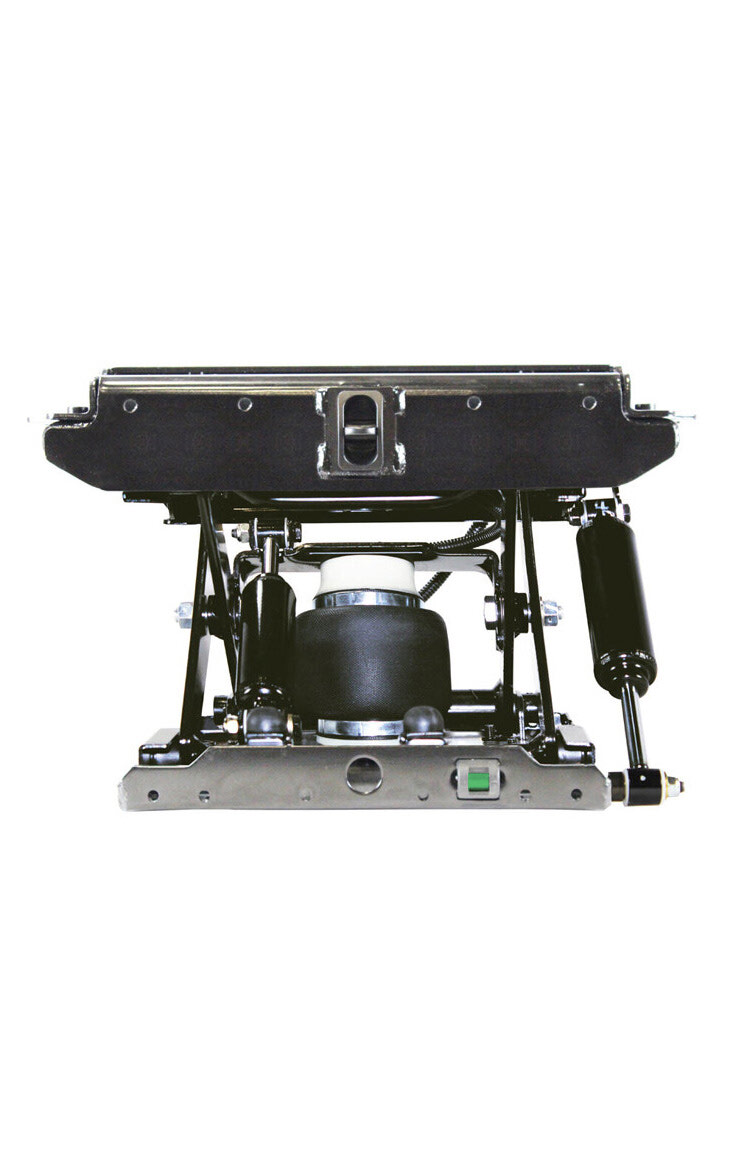

- Heavy Duty 12 or 24 Volt Air Ride Suspension

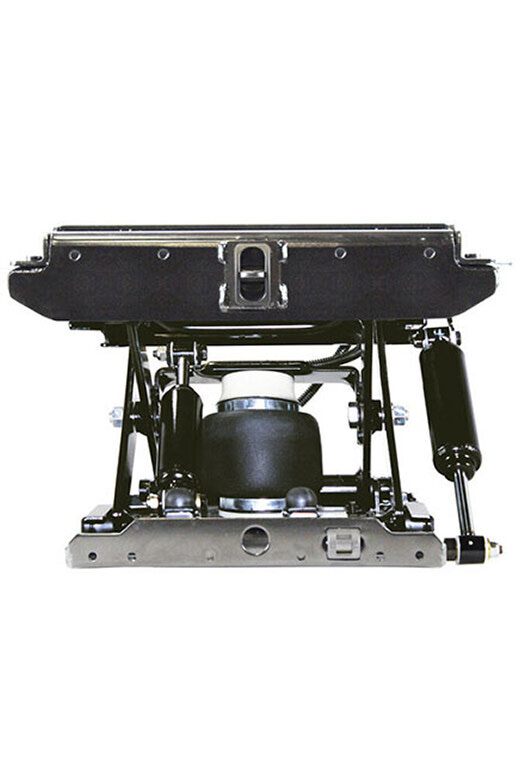

- Double Dampers
- Up to 190kg (418lbs) Manual Weight Adjustment
- 100mm (4”) Suspension Stroke
- Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars

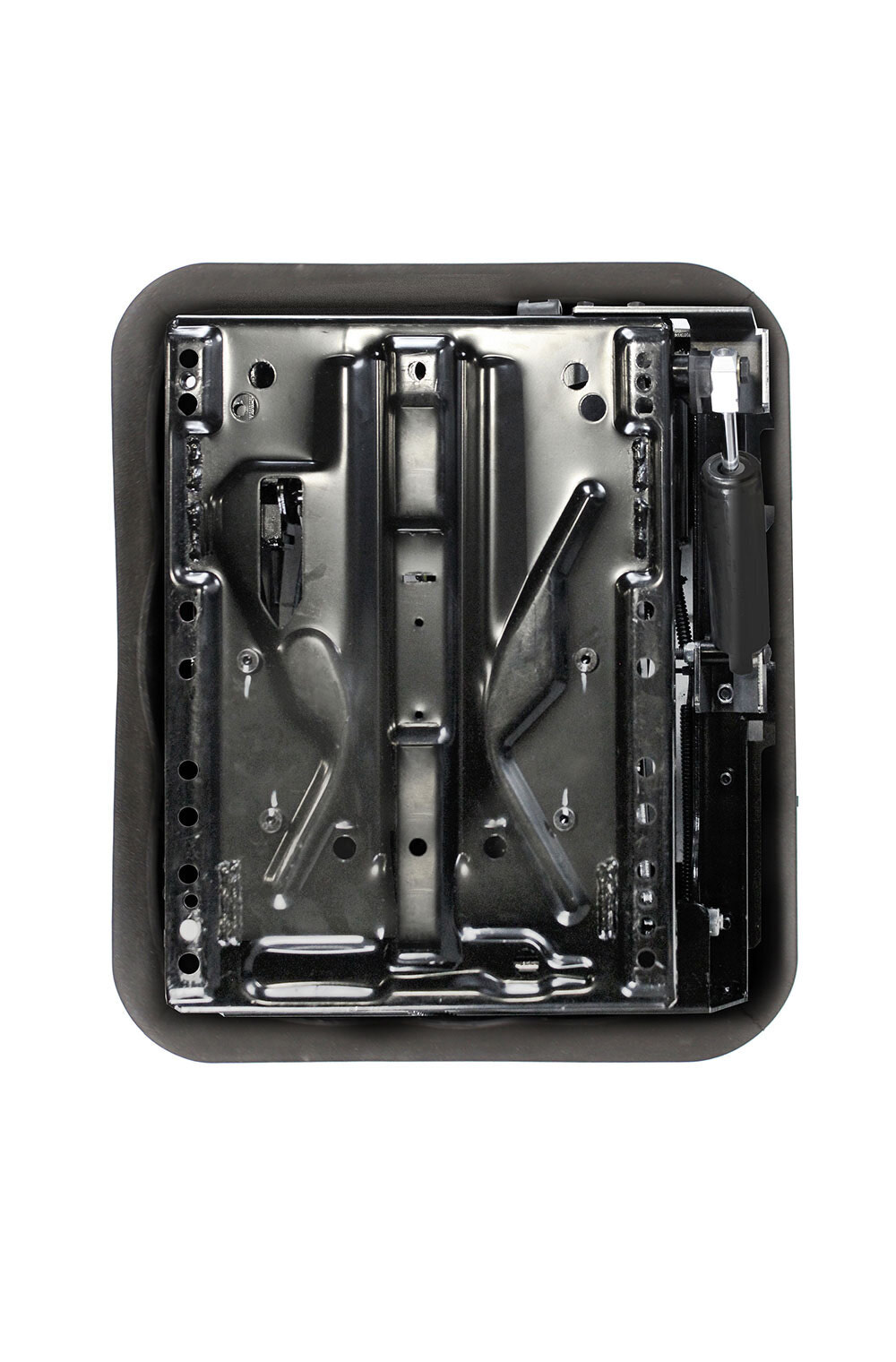

Bolt Pattern
- 260mm (10.25”) Side to Side
- Front to Back (Various, See Bolt Pattern Download)

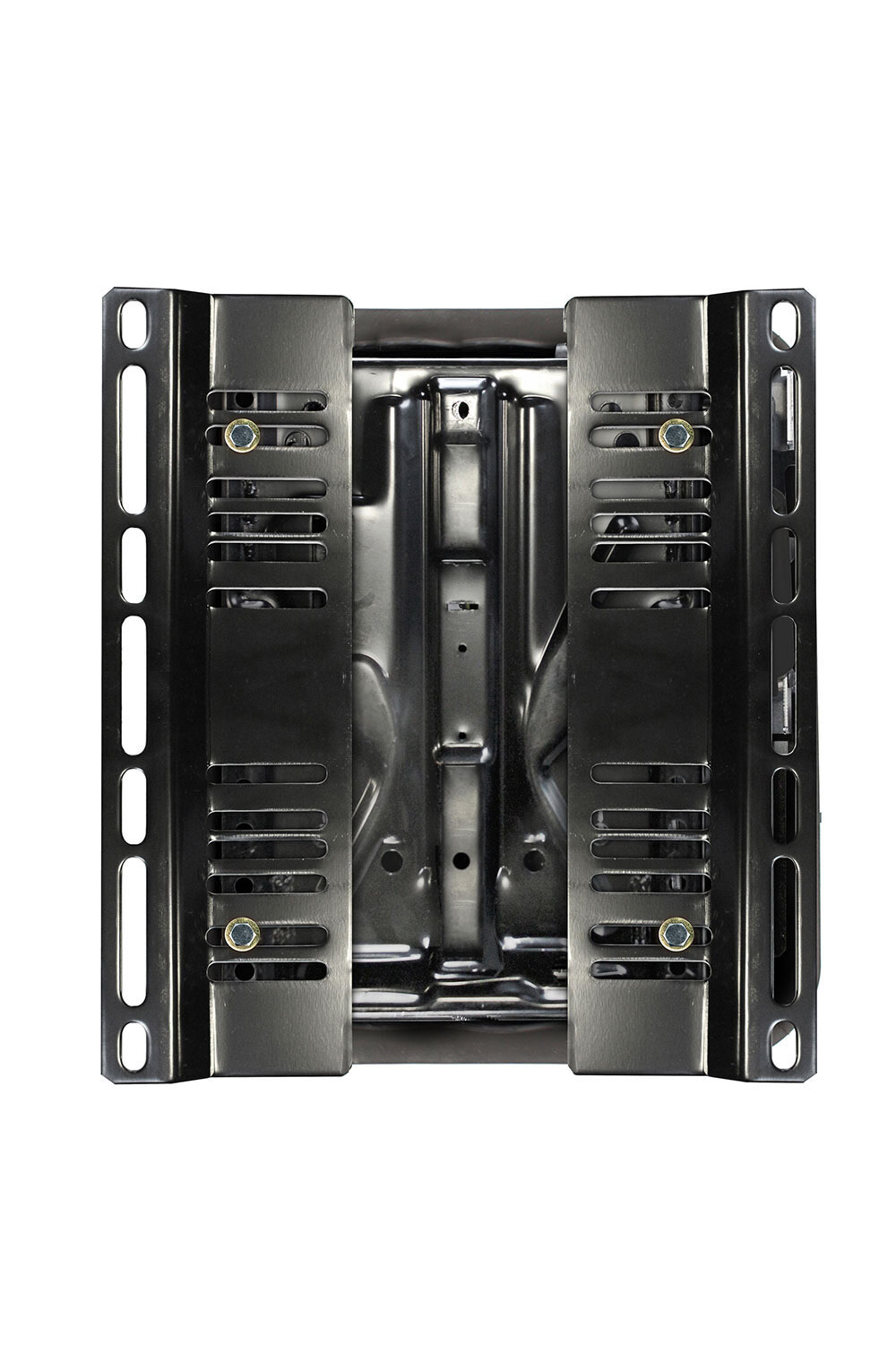

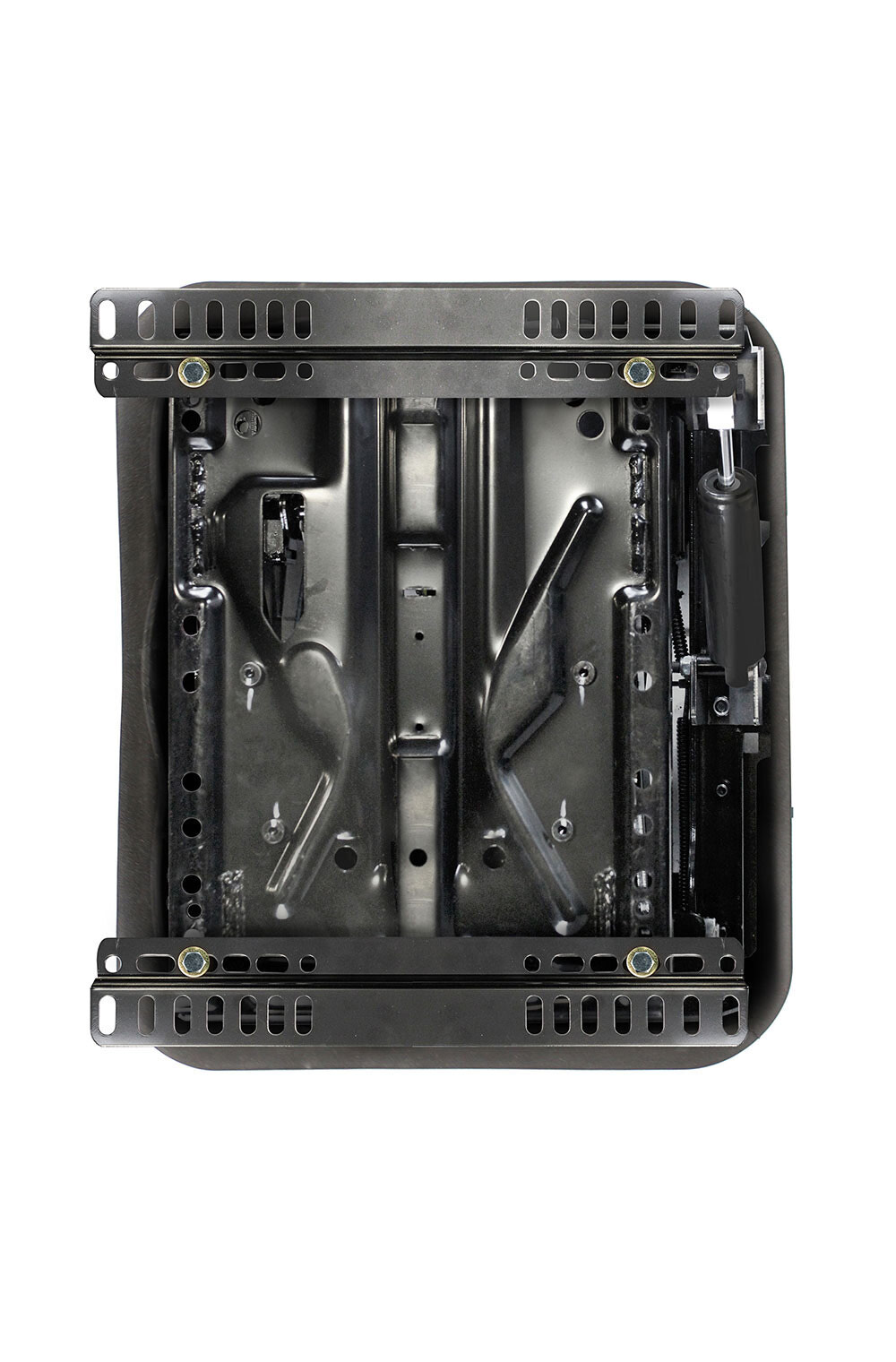

- Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)
Industry Standards
- Operator Seat Vibration: ISO 7096
- Flammability: FMVSS 302
- Seat Belt Anchor: ISO 6683
Replacement For
- Grammer MSG95 722, KAB 65/K4, KAB 85/K4, Caterpillar Excavator M Series, Caterpillar Seat Group Number 195 7700, 202 7213, Leibherr 10467512, 10331432
