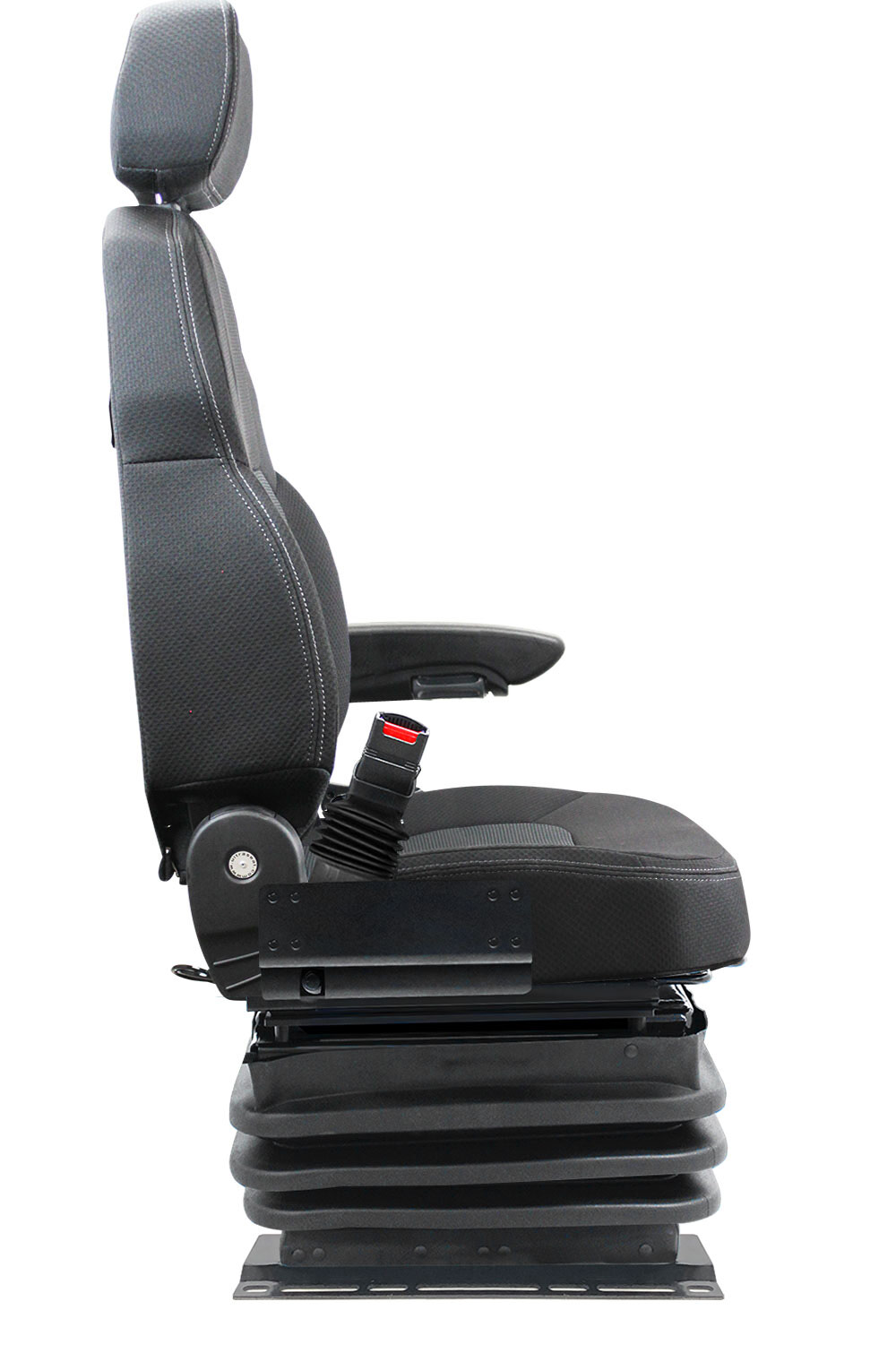

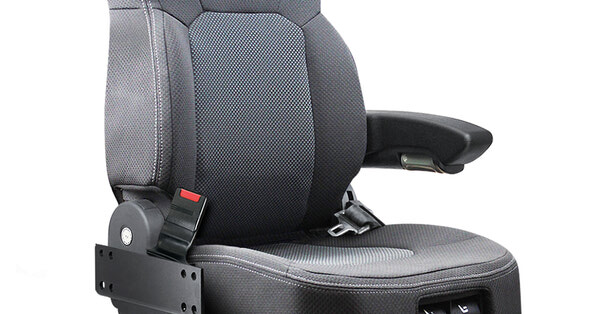

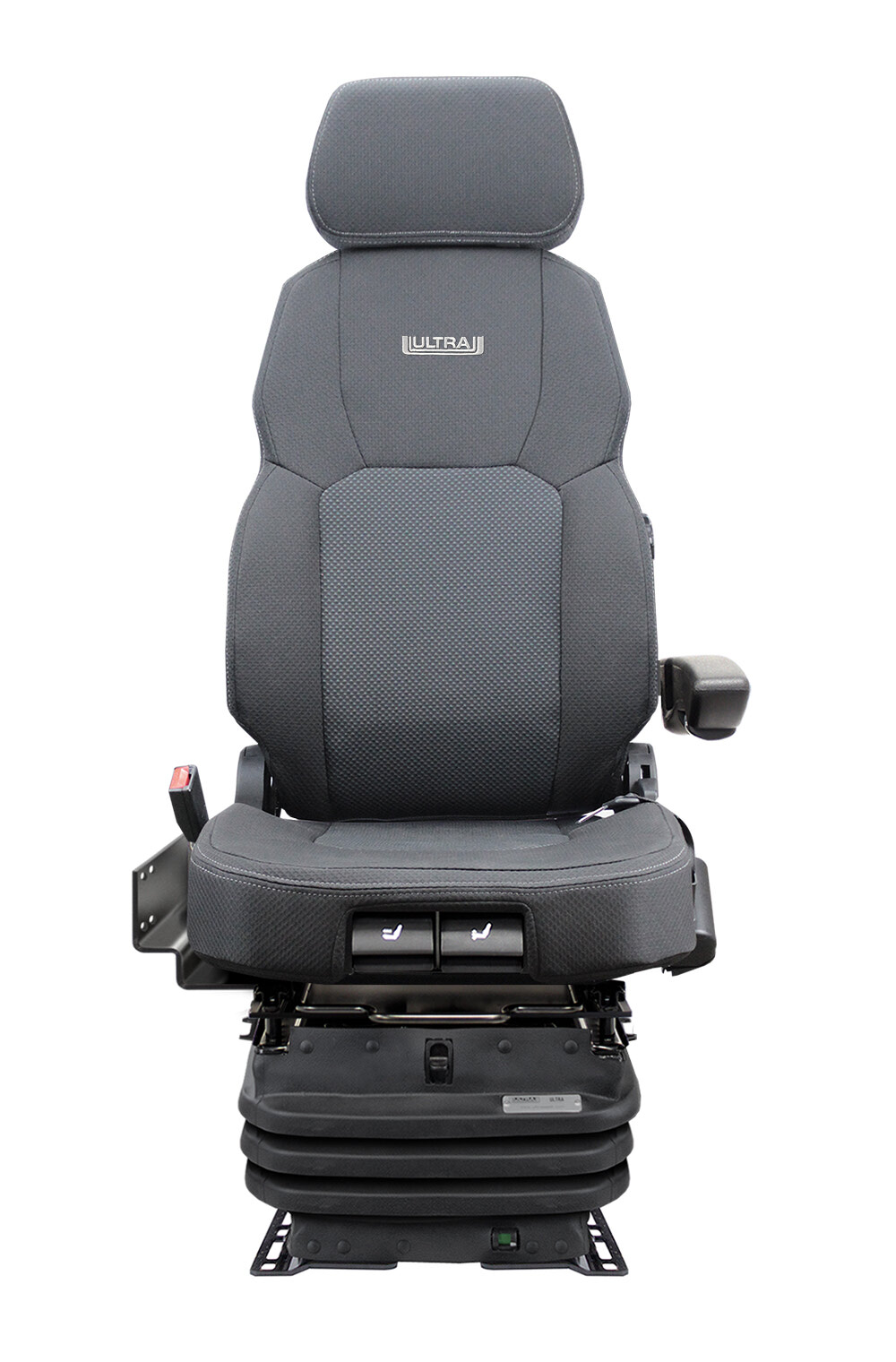

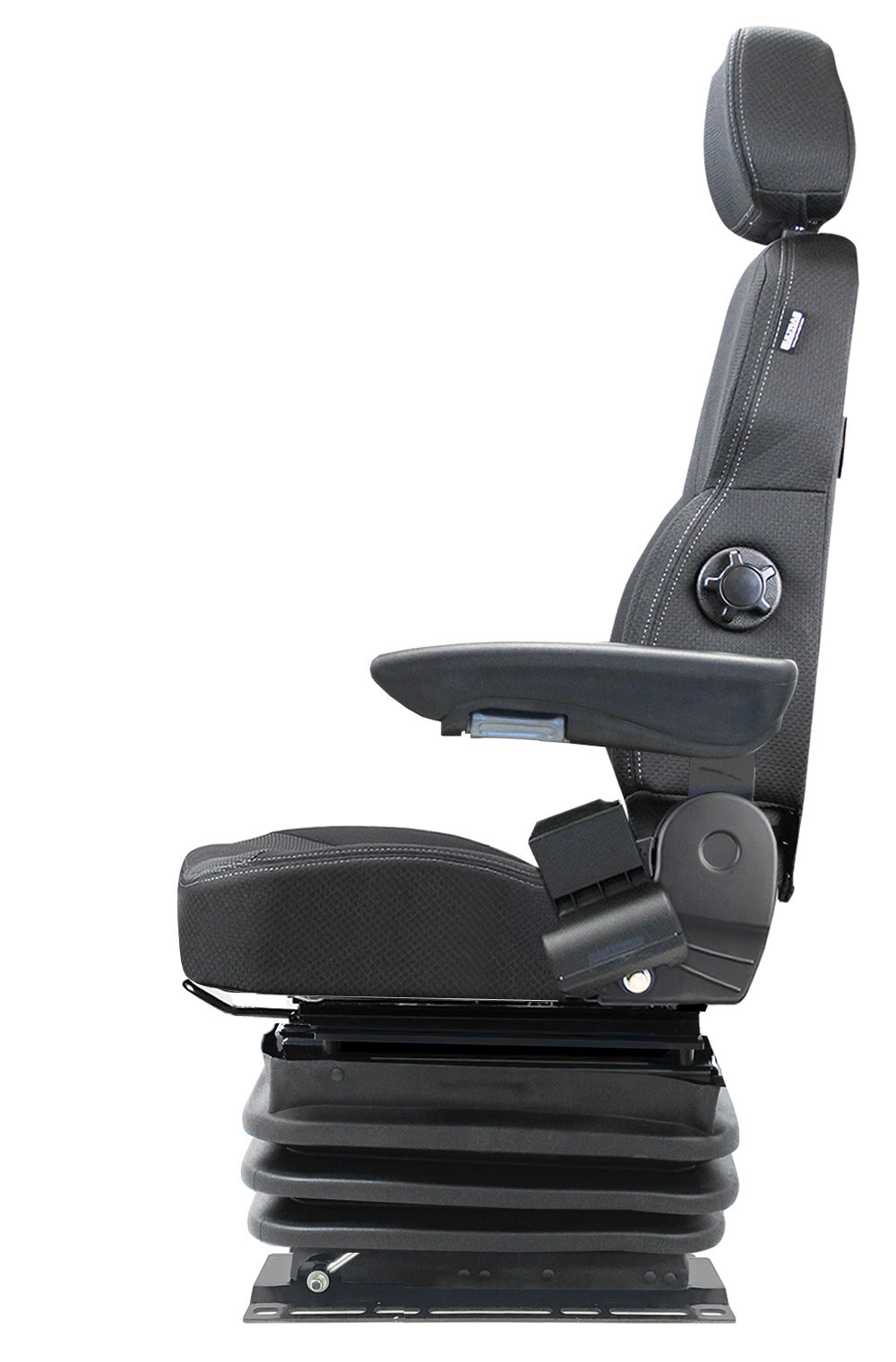

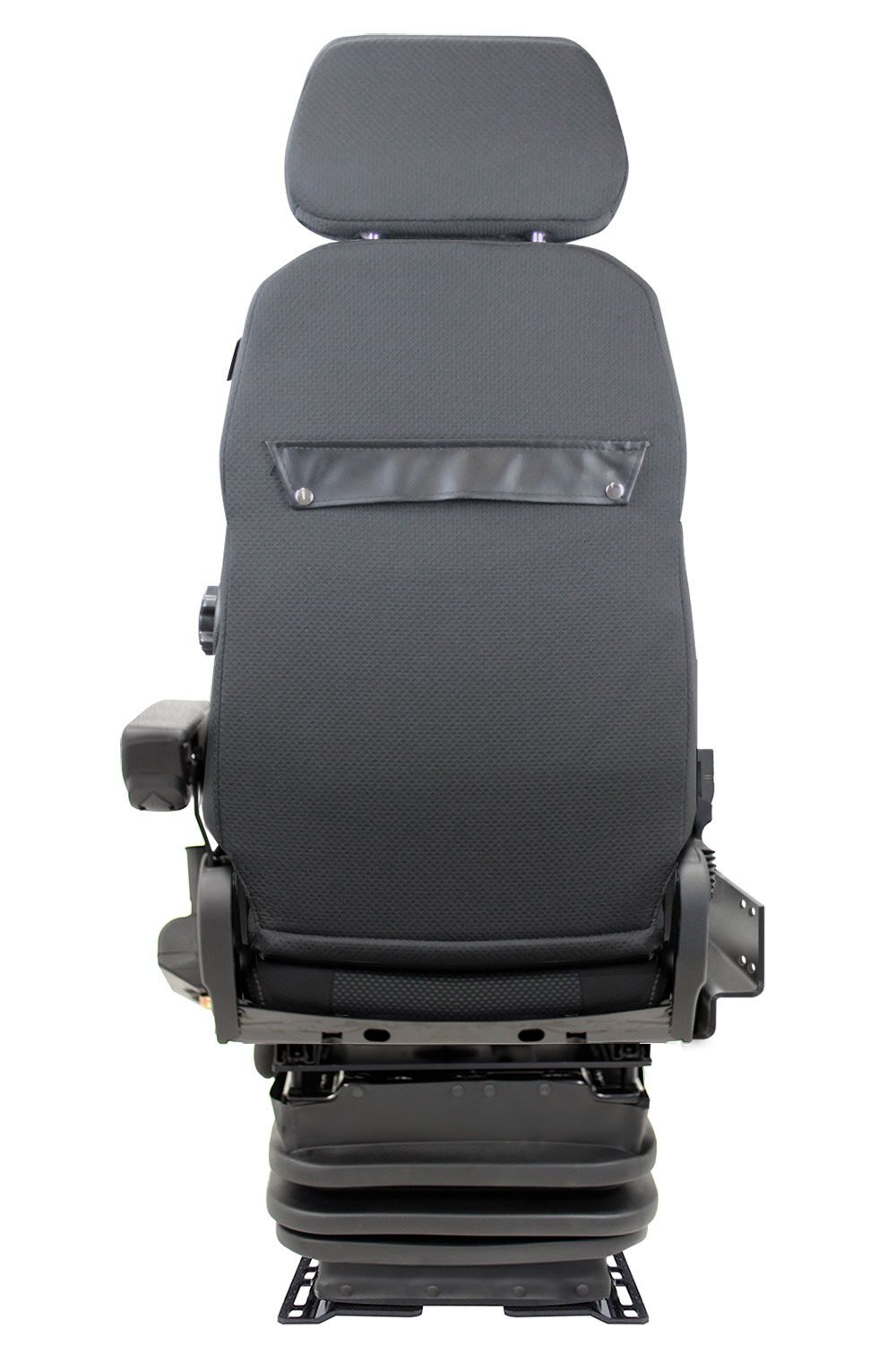

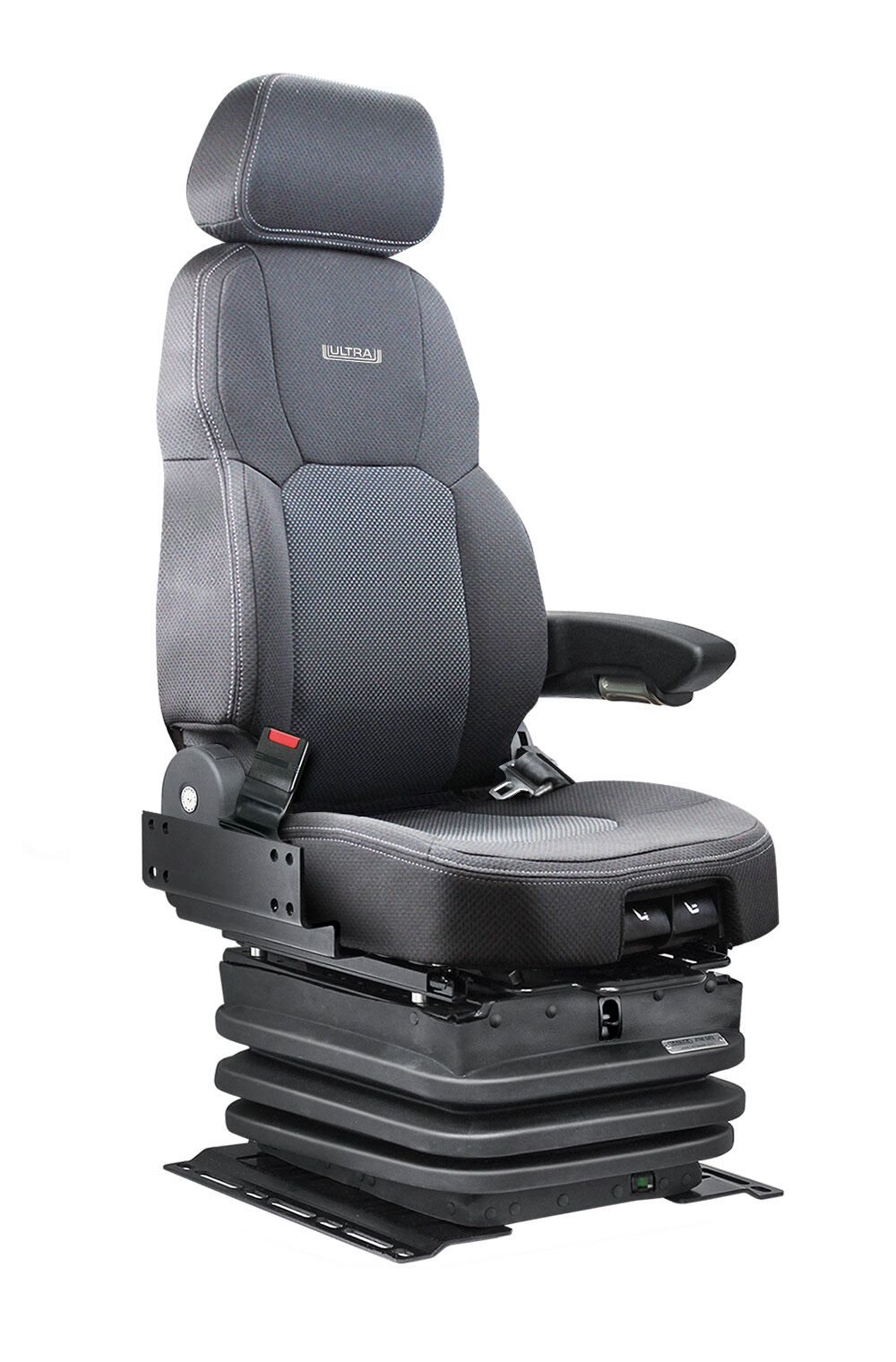

V878C CAT3 Caterpillar Wheel Loader Air Suspension Seat with Double Dampers

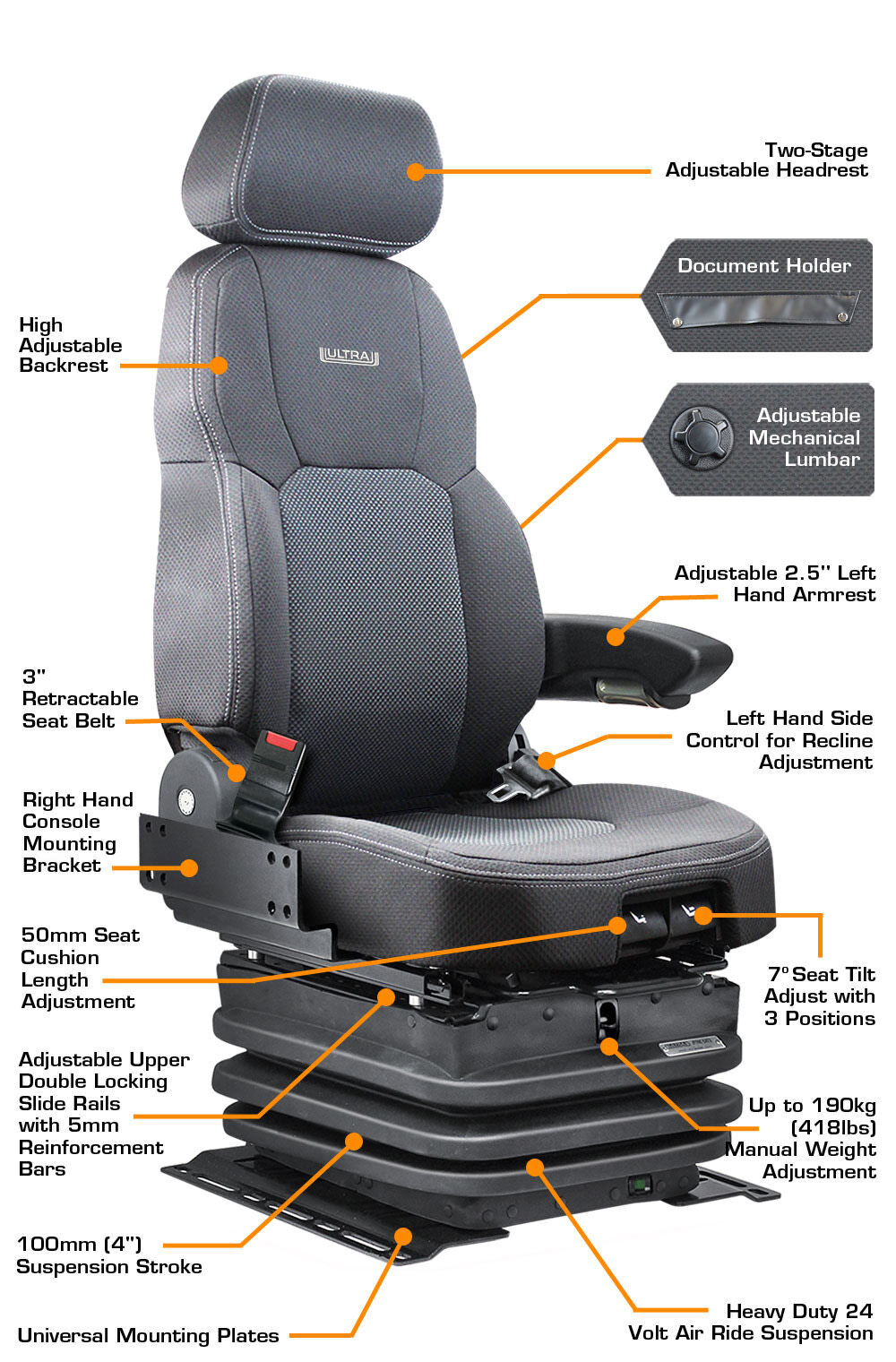

Features

• High Adjustable Backrest

• Left Hand Side Control for Recline Adjustment
• Adjustable Mechanical Lumbar
• Document Holder

• 7° Seat Tilt Adjustment in 3 Positions

• 50mm Seat Cushion Length Adjustment

• Heavy Duty 24 Volt Air Suspension

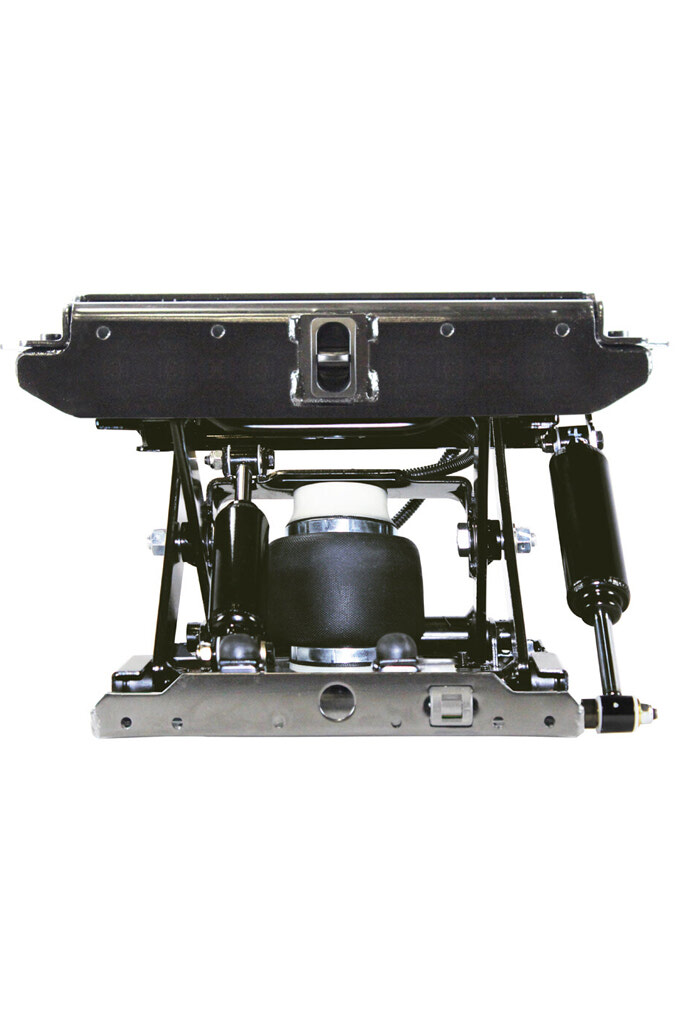

• Double Dampers
• Up to 190kg (418lbs) Manual Weight Adjustment
• 100mm (4”) Suspension Stroke

• Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars
• Adjustable Headrest

• Adjustable 2.5" Left Hand Armrest
• Right Hand Console Mounting Bracket

• 3" Retractable Seat Belt

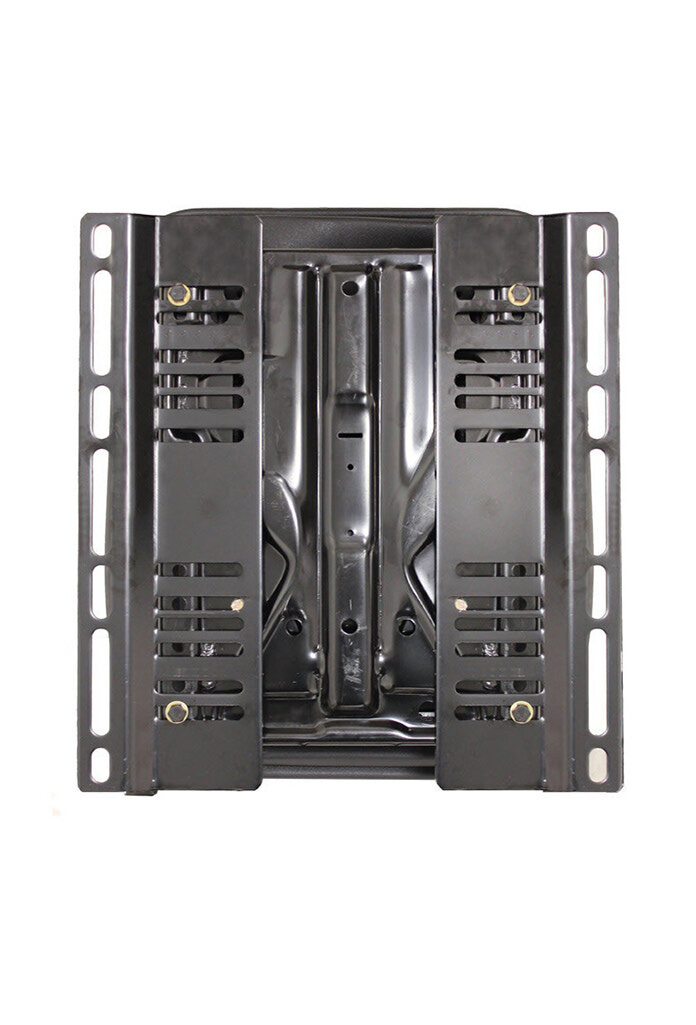

• Universal Mounting Plates


Bolt Pattern

• Optional Mounting Plates (880-59) Shipped with Seat

• Side to Side - Adjustable from a Minimum 346mm (13-5/8") to a Maximum 467mm (18-3/8")
• Front to Back - Various up to 406mm (16")

Industry Standards

• Operator Seat Vibration: ISO 7096
• Flammability: FMVSS 302

• Seat Belt Anchor: ISO 6683


Replacement For

• Caterpillar Seat Group Number 248-6193
