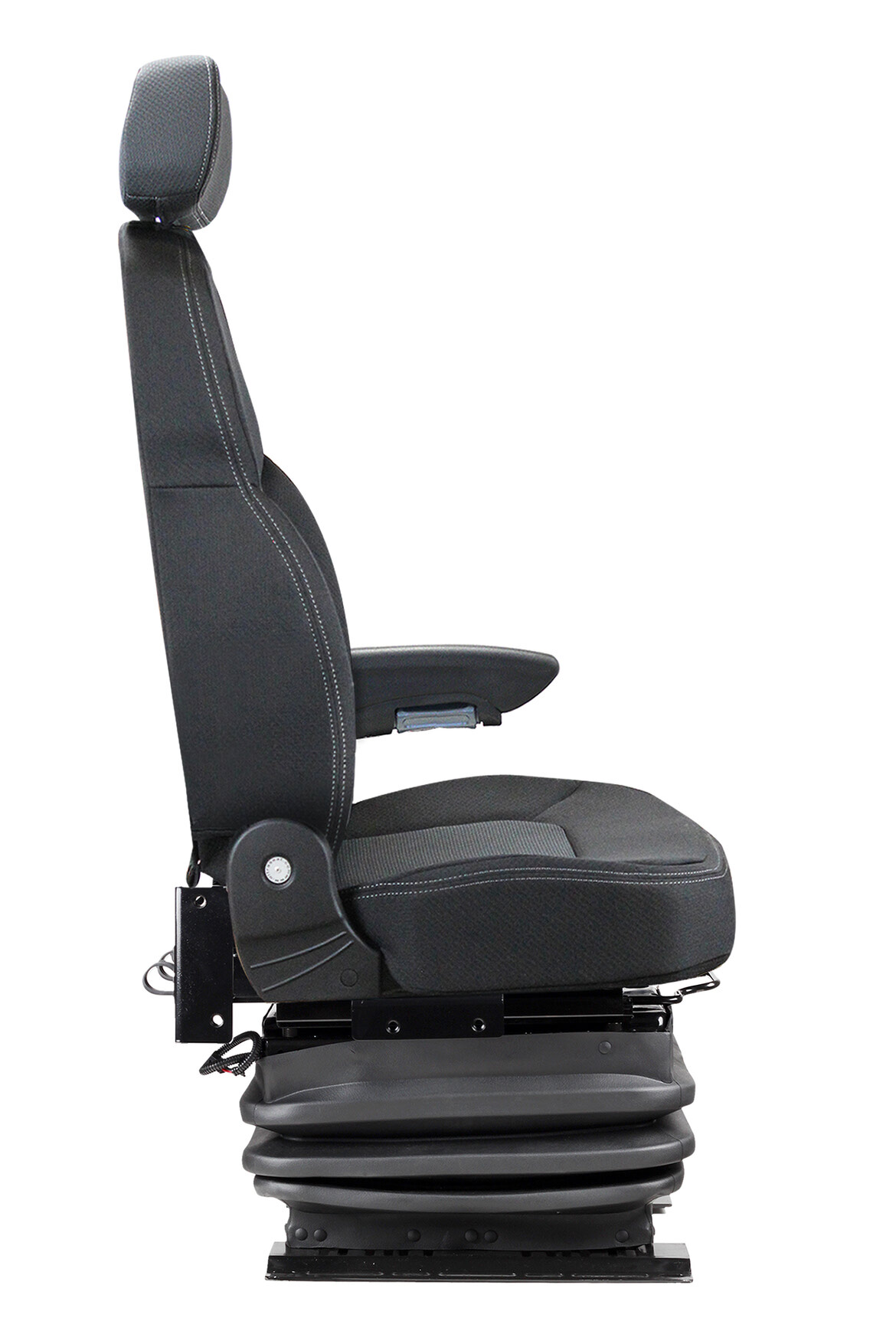

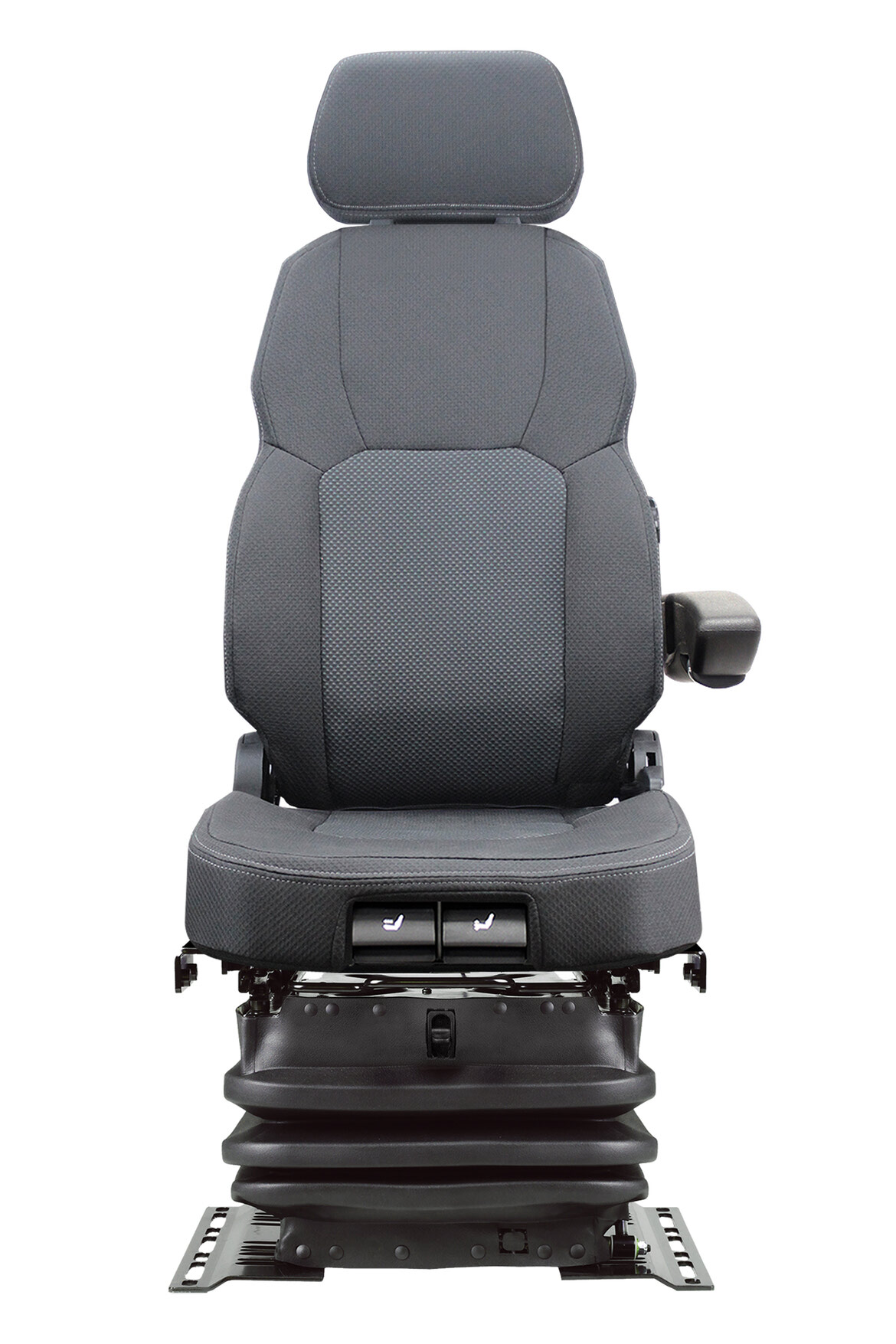

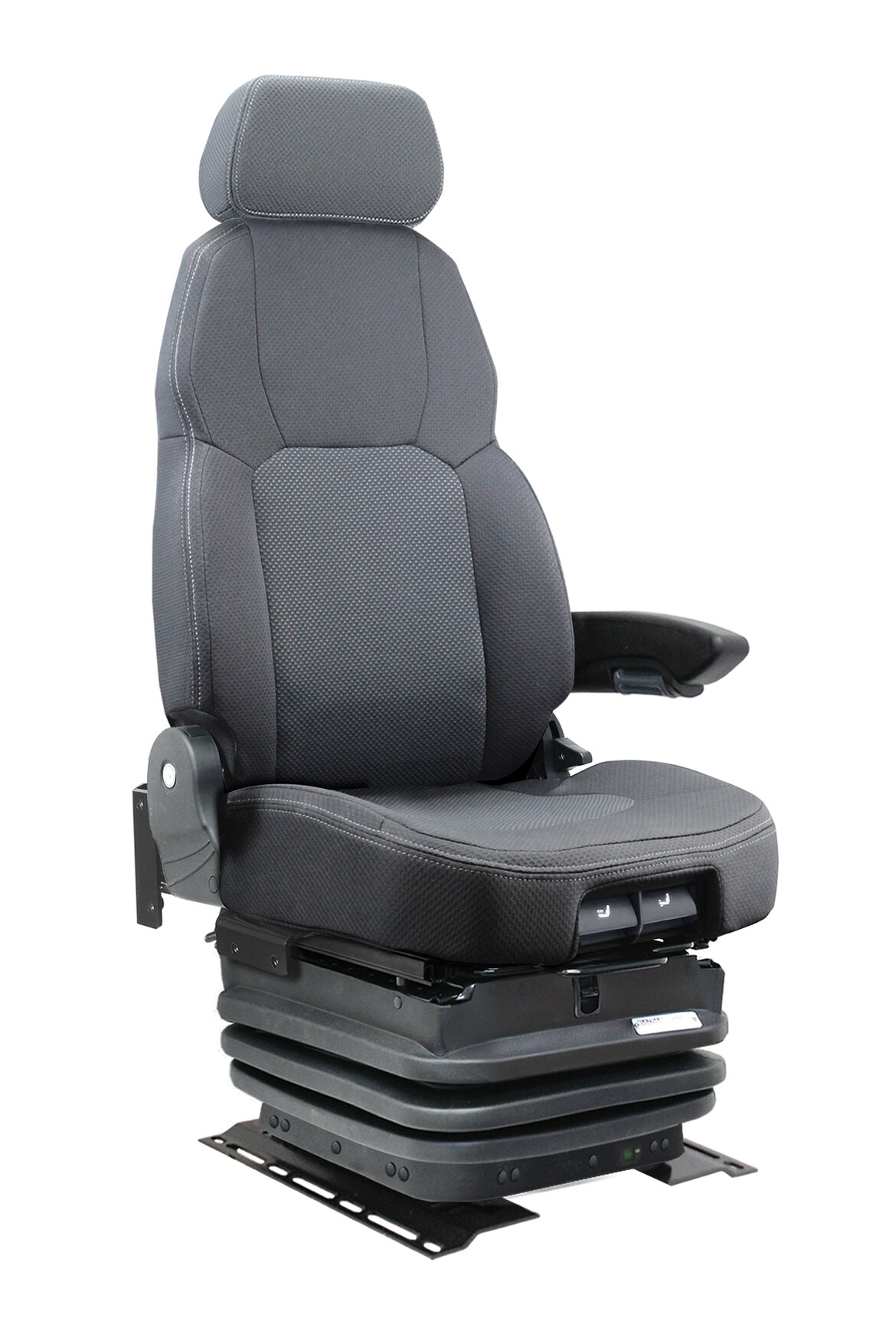

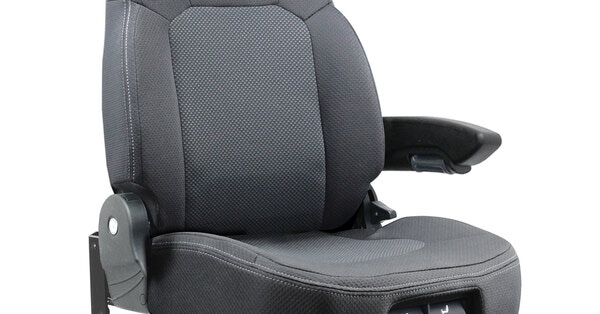

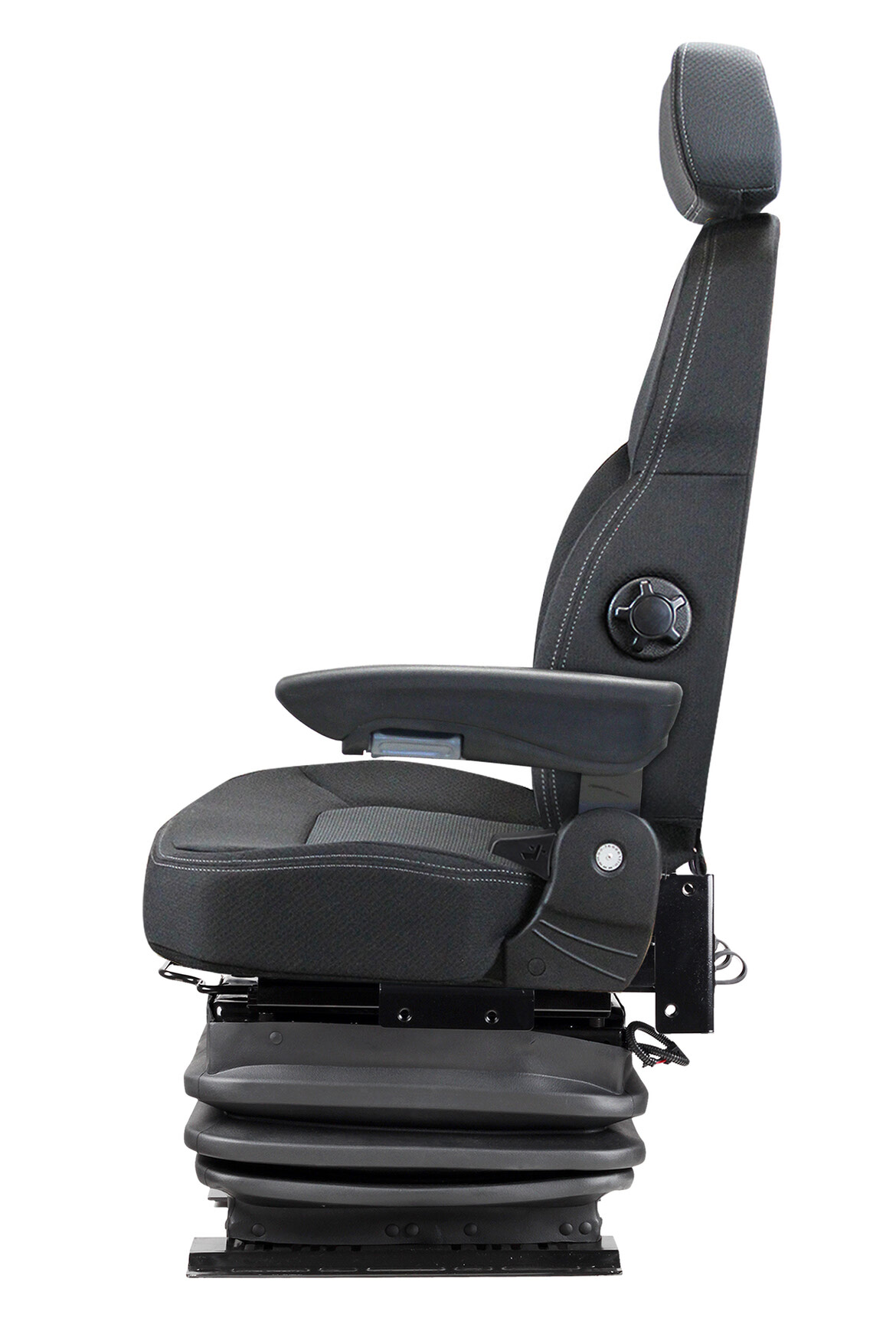

V878C CAT7 RH Caterpillar Black/Grey Cloth 24 Volt Air Suspension Seat

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN SELECT YOUR SEAT BELT
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal

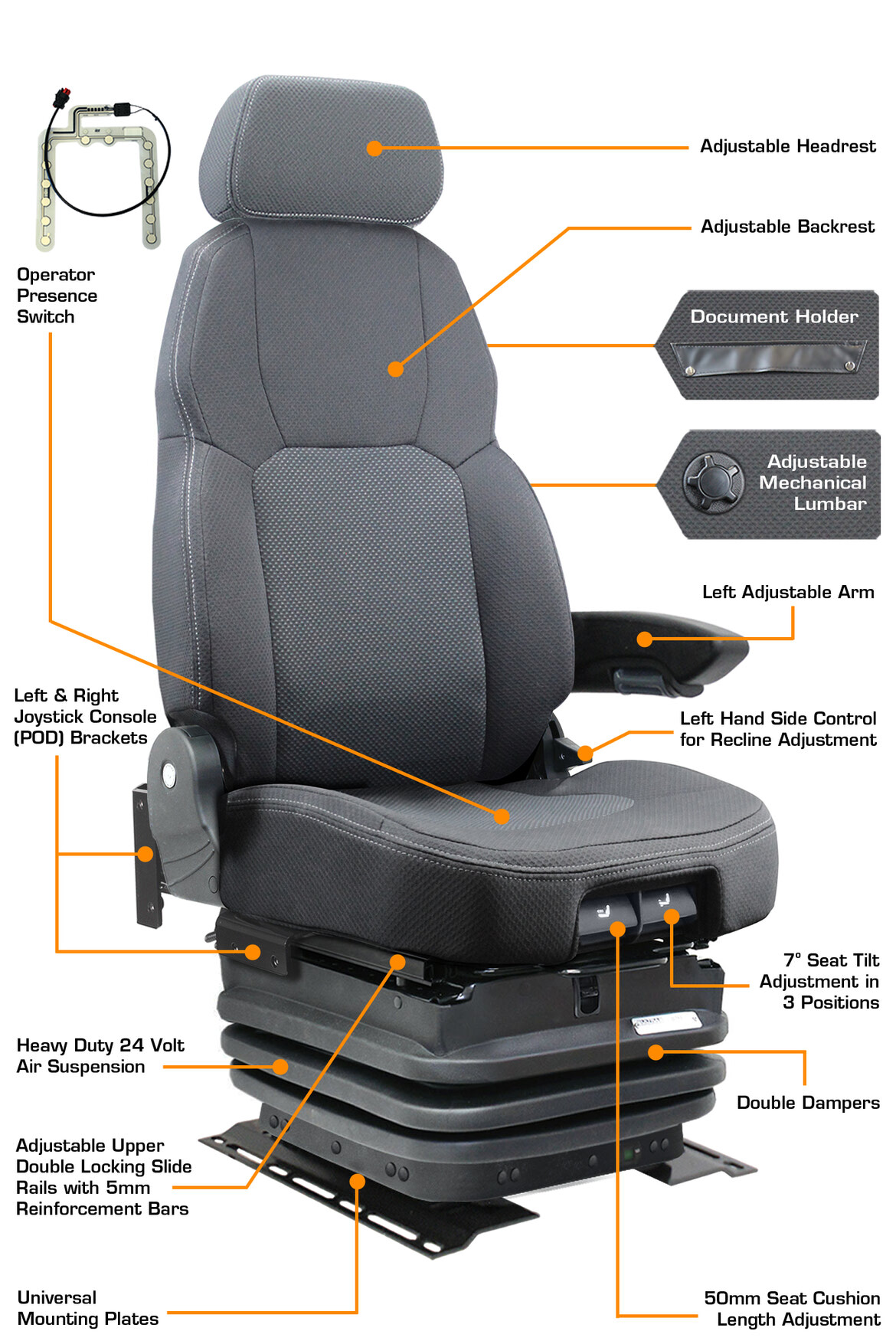

Features

  • High Adjustable Backrest
  • Left Hand Side Control for Recline Adjustment
  • Adjustable Mechanical Lumbar
  • Document Holder
  • Left Side Adjustable Armrest
  • 7° Seat Tilt Adjustment in 3 Positions
  • 50mm Seat Cushion Length Adjustment
  • Heavy Duty 24 Volt Air Suspension

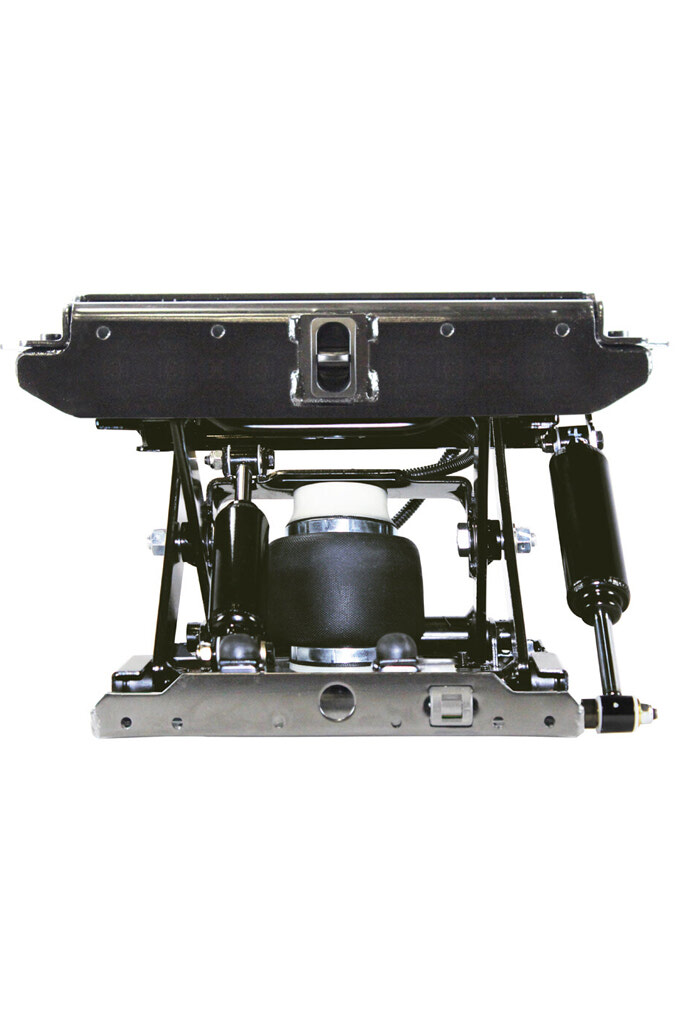

  • Double Dampers
  • Up to 190kg (418lbs) Manual Weight Adjustment
  • 100mm (4”) Suspension Stroke
  • Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars
  • Adjustable Headrest

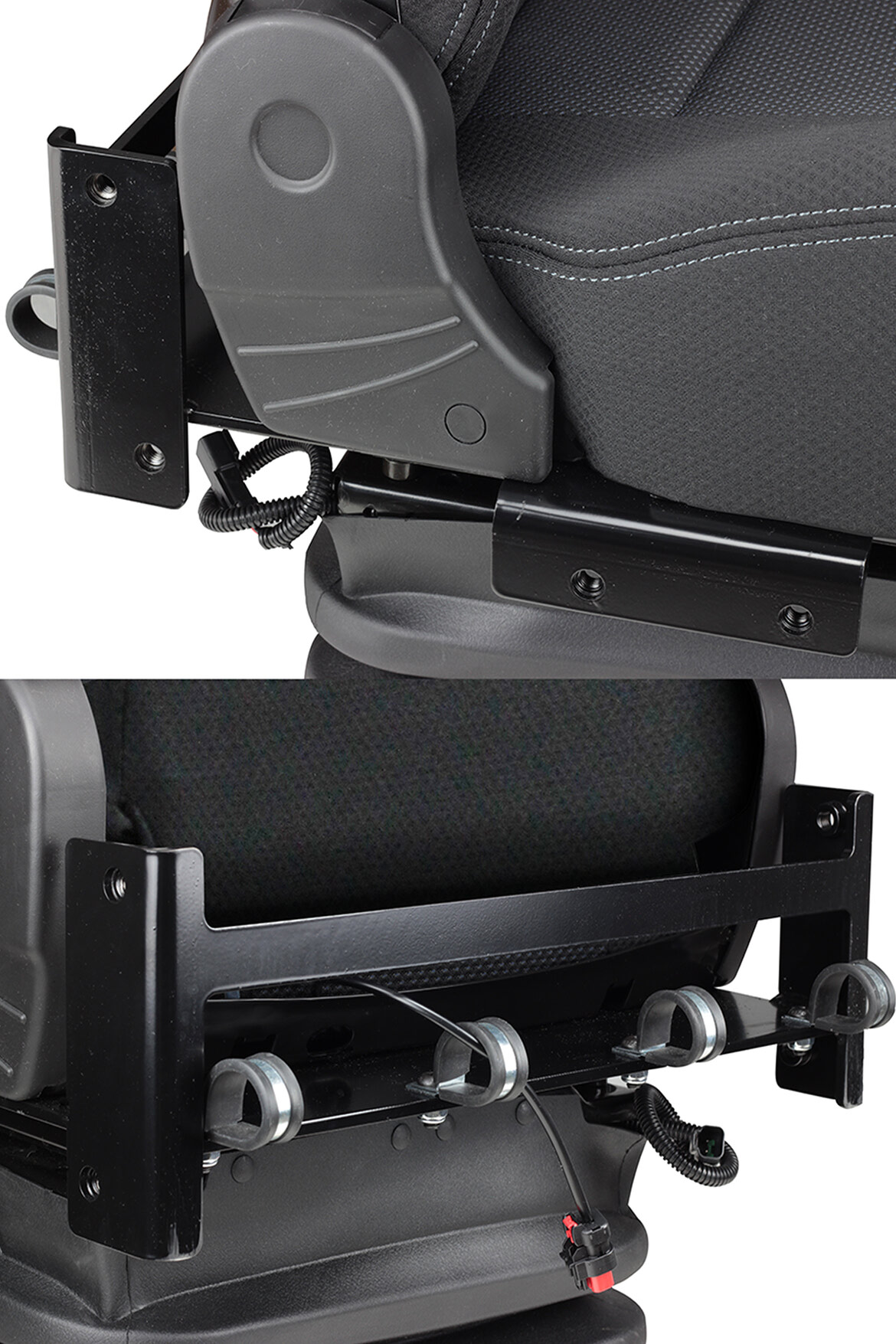

  • Left and Right Hand Joystick Console (POD) Brackets
  • Operator Presence Switch
  • Universal Mounting Plates

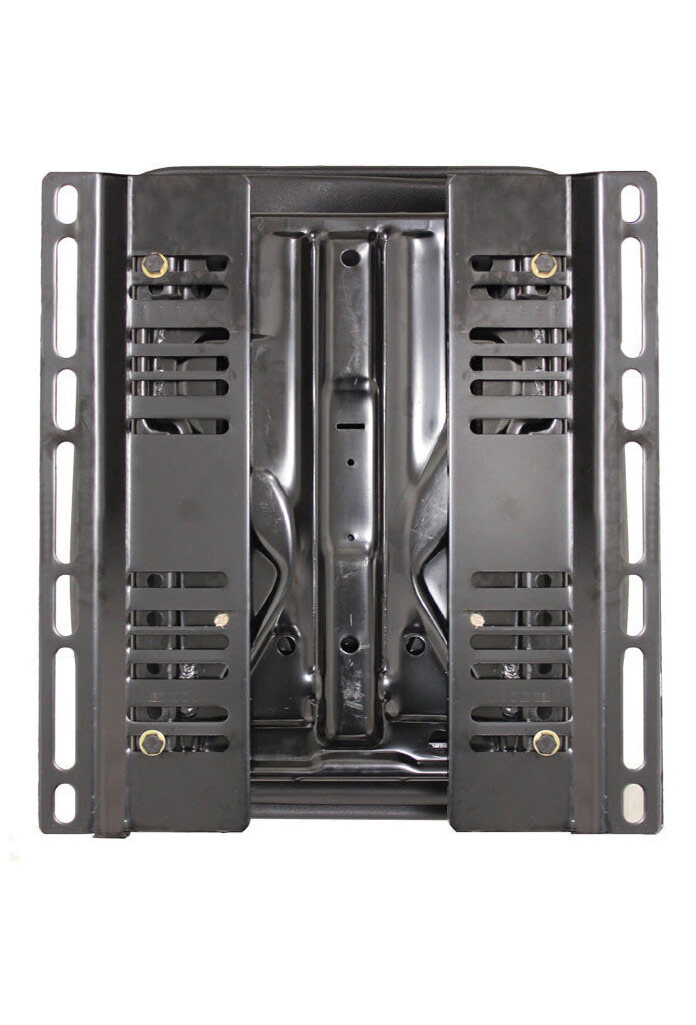

Bolt Pattern

  • Universal Mounting Plates (88059) Installed on Seat
  • Side to Side - Adjustable from a Minimum 346mm (13-5/8") to a Maximum 467mm (18-3/8")
  • Front to Back - Various up to 406mm (16")

Industry Standards

  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302
  • Seat Belt Anchor: ISO 6683

Replacement For

  • Caterpillar Seat Group Numbers: 335-1825, 351-1831, 351-1832, 443-8097, 443-8098, 489-1180
