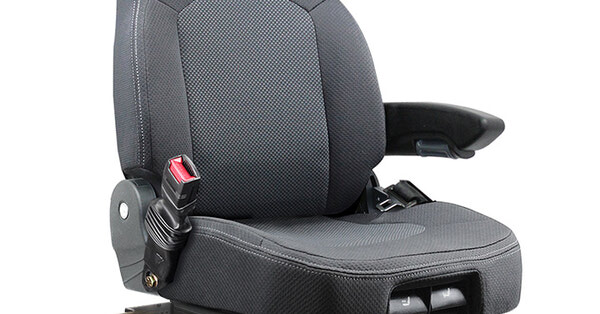

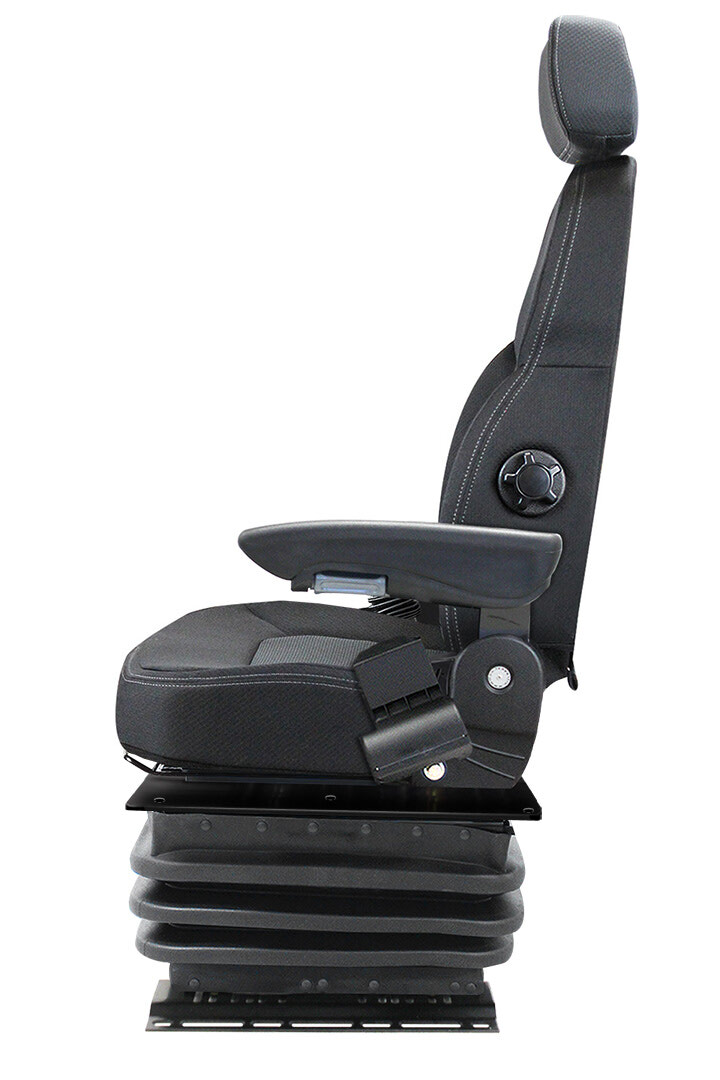

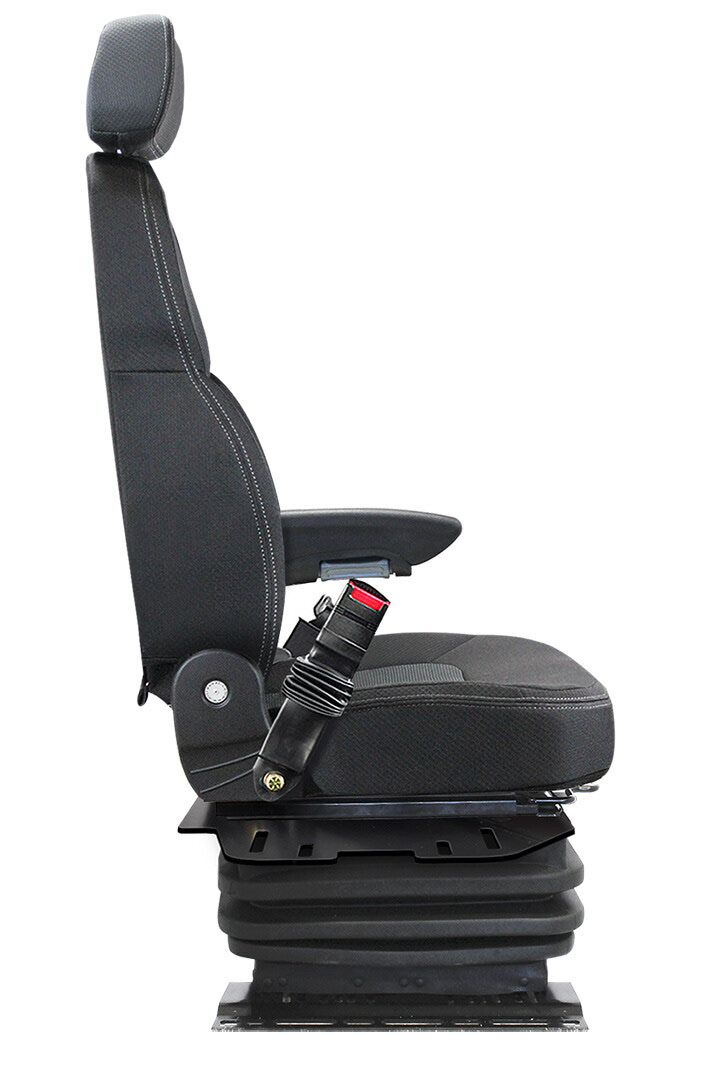

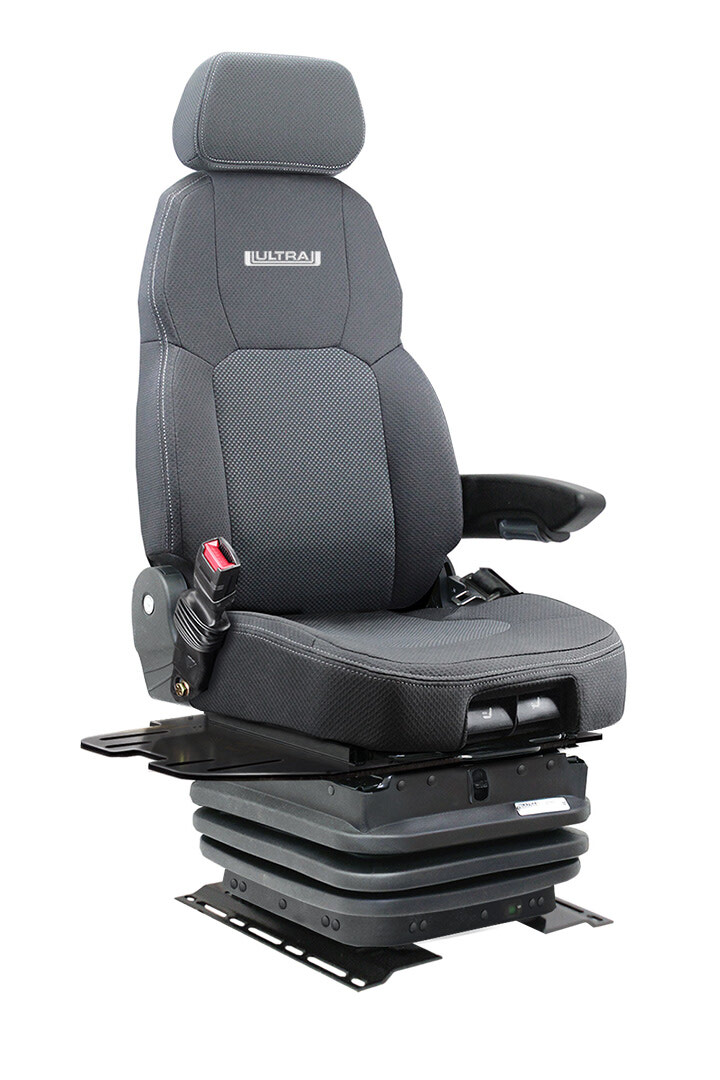

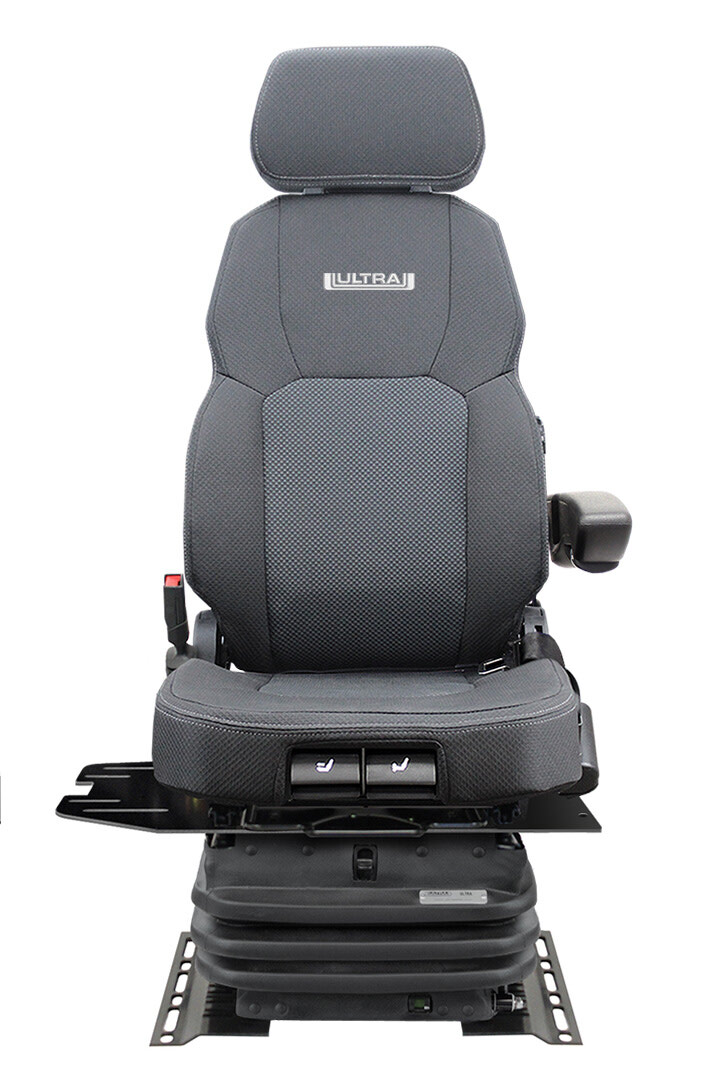

V878C JD3 II - John Deere Wheel Loader Seat With Joy Stick Controls In Right Hand Armrest

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal

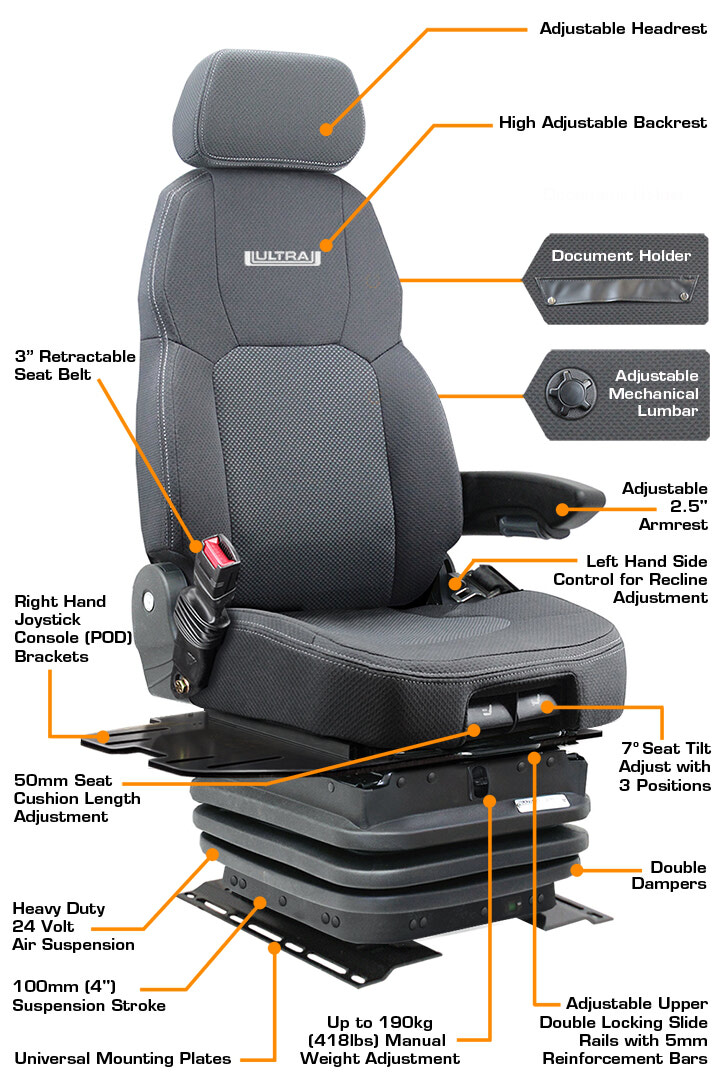

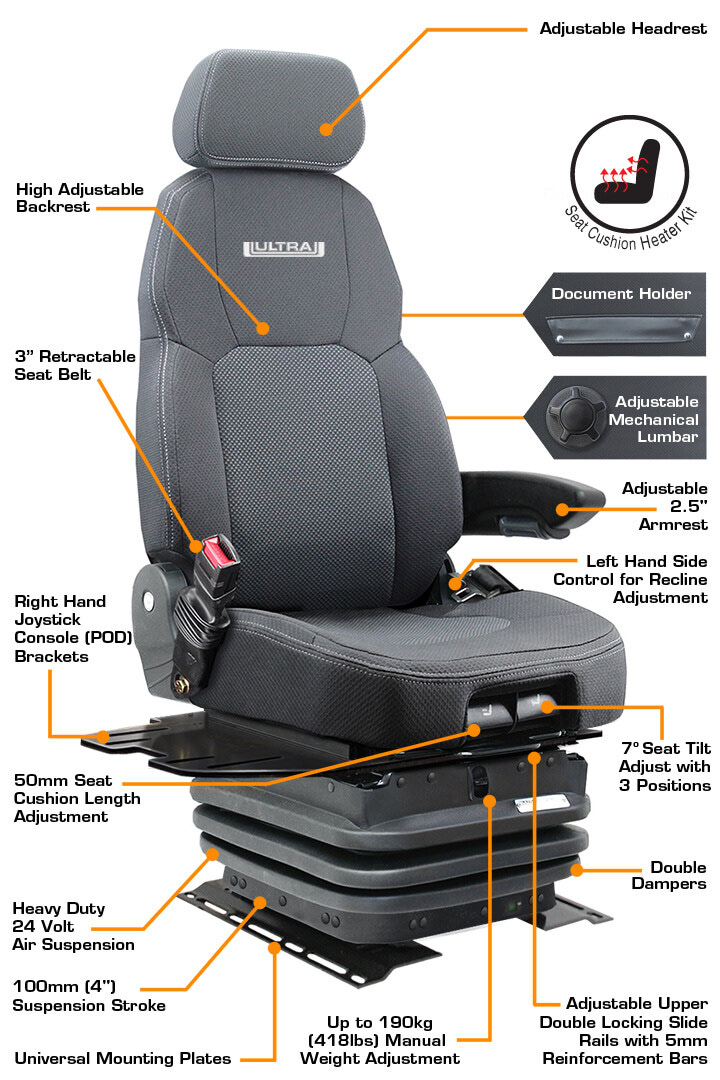

Features

  • High Adjustable Backrest
  • Adjustable Headrest
  • Left-Hand Side Control for Recline Adjustment

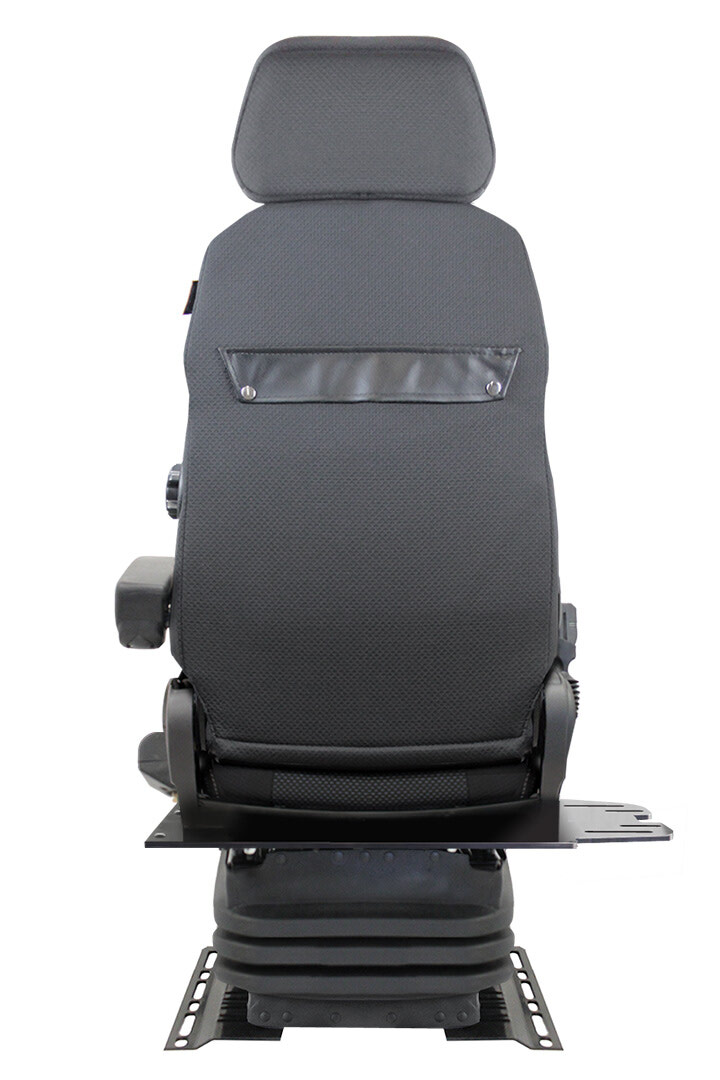

  • Document Holder
  • Adjustable Mechanical Lumbar
  • Double Dampers
  • 7° Seat Tilt Adjustment in 3 Positions
  • 50mm Seat Cushion Length Adjustment
  • Heavy Duty 24 Volt Air Suspension
  • Up to 190kg (418lbs) Manual Weight Adjustment
  • 100mm (4”) Suspension Stroke
  • Adjustable 2.5" Left Hand Armrest
  • Right Hand Console Mounting Bracket
  • Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars
  • Universal Mounting Plates
  • 24 Volt Seat and Back Cushion Heater Kit
  • 3" Retractable Seat Belt with Normally Open Safety Switch

Bolt Pattern

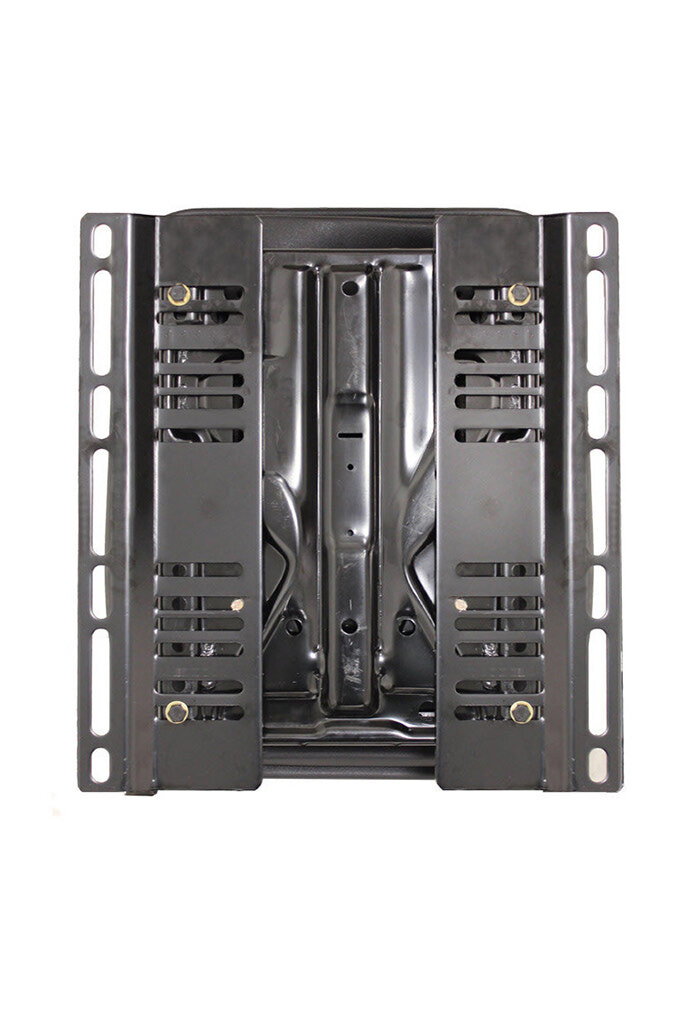

  • Mounting Plates (880-59) Shipped With Seat
  • Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")
  • Front to Back - Various up to 406mm (16")

Industry Standards

  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302
  • Seat Belt Anchor: ISO 6683

Replacement For

  • John Deere Part Numbers: AT460335, AT460336, AT471142,  AT471146, AT522514
