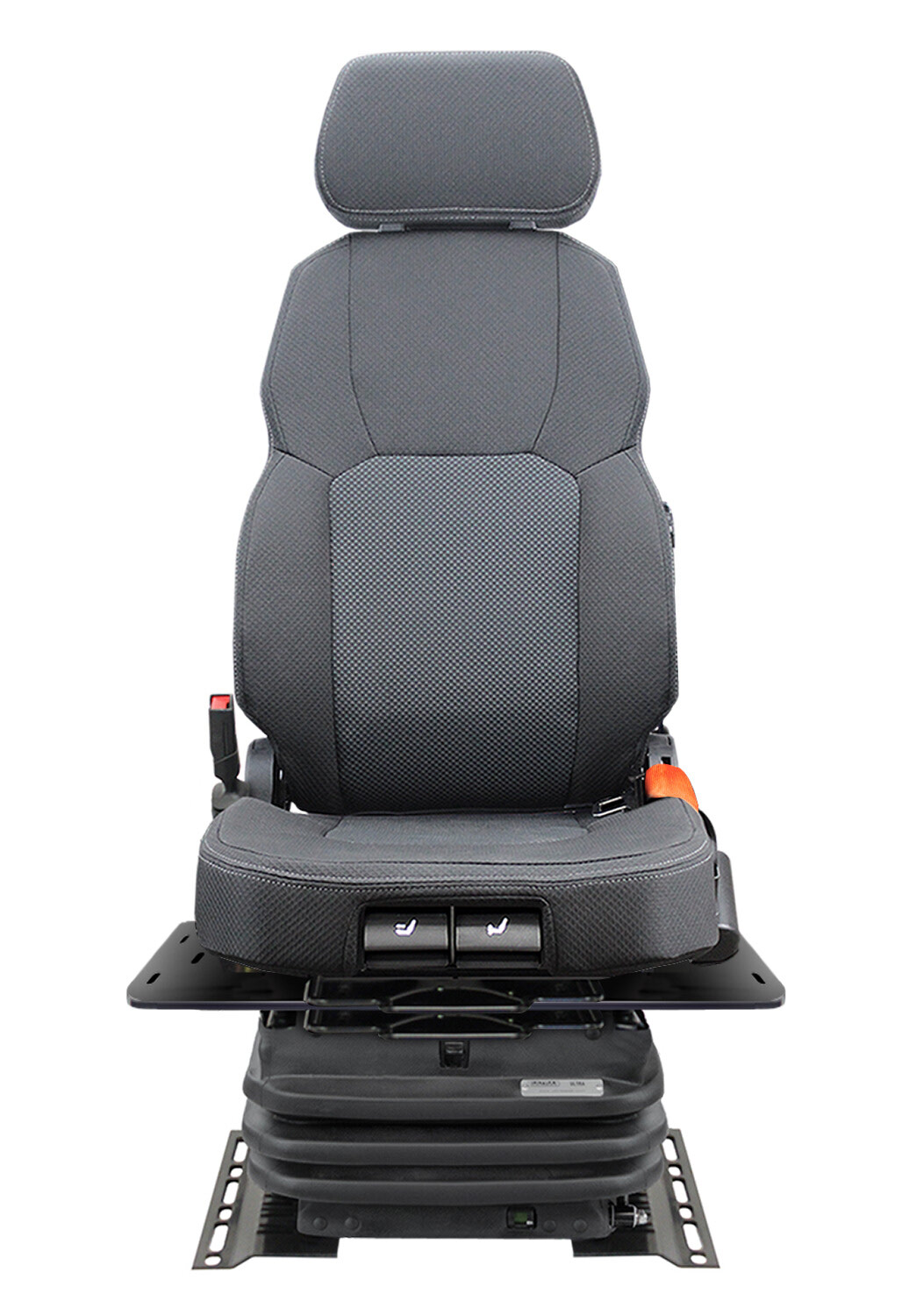

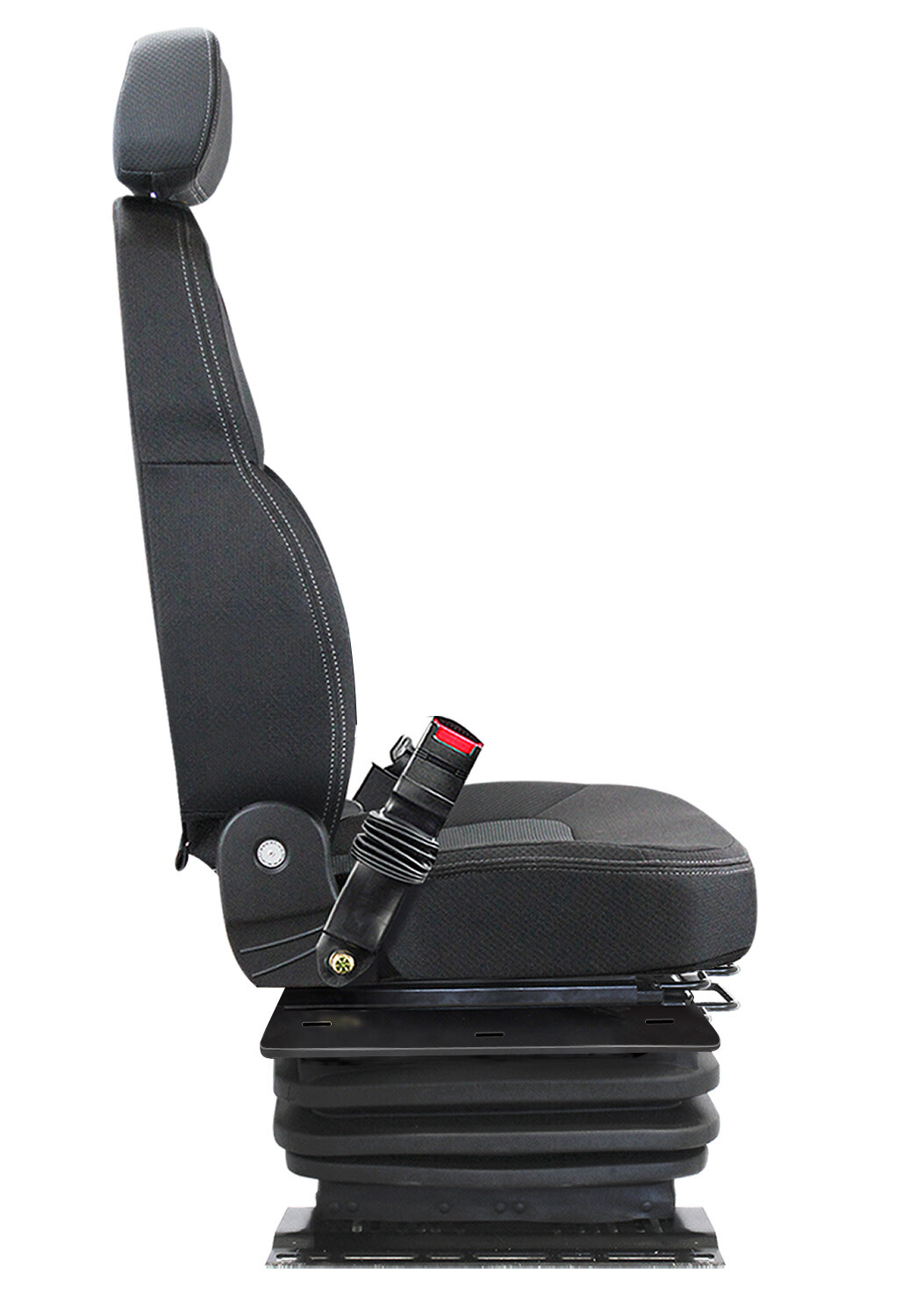

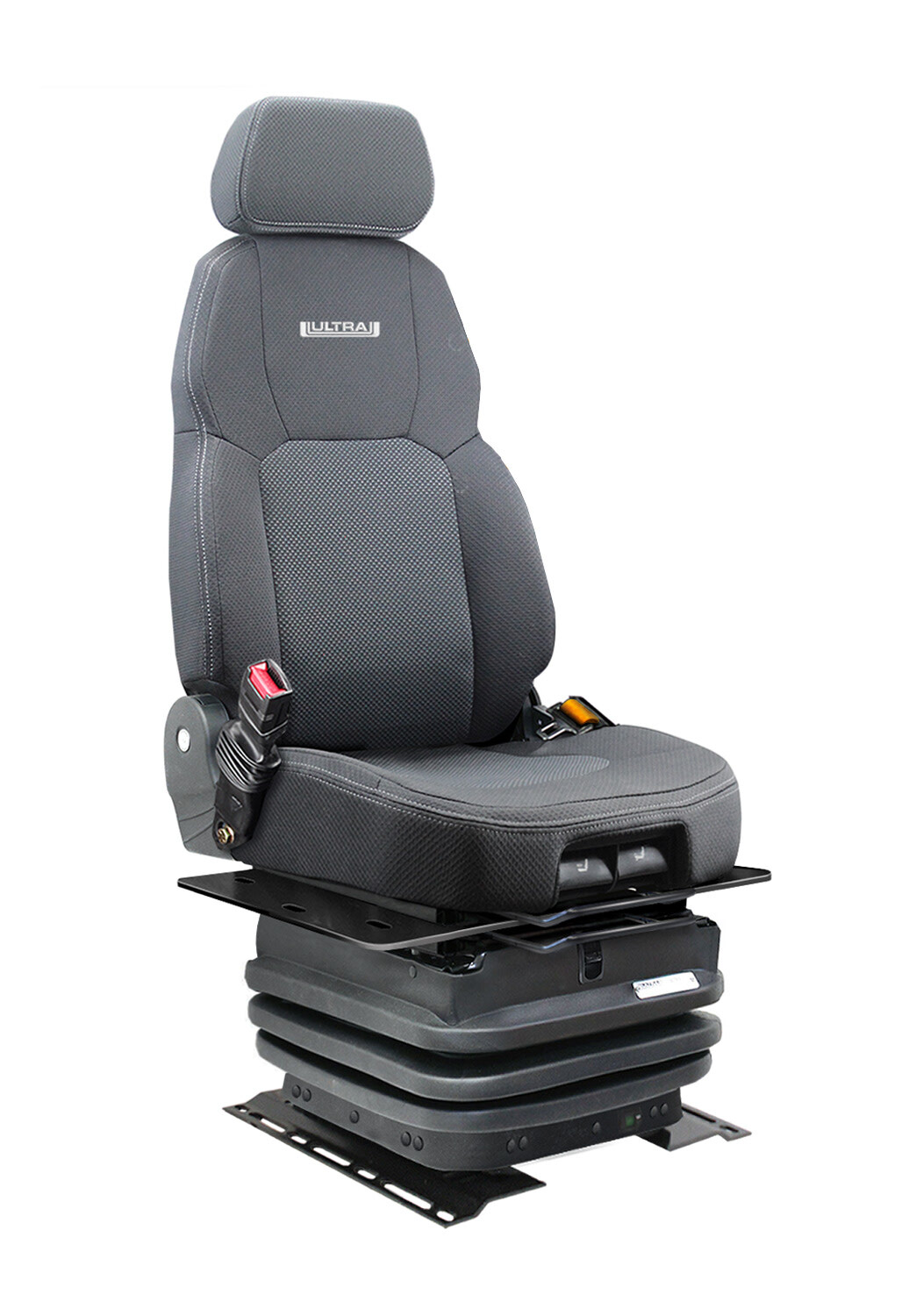

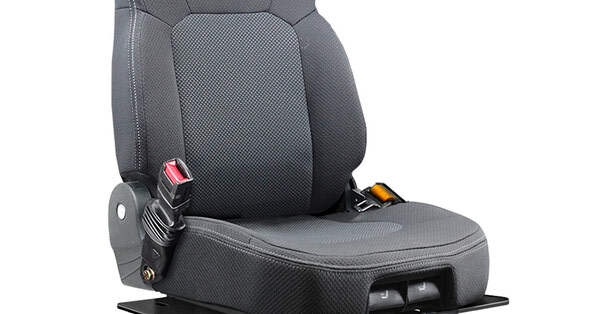

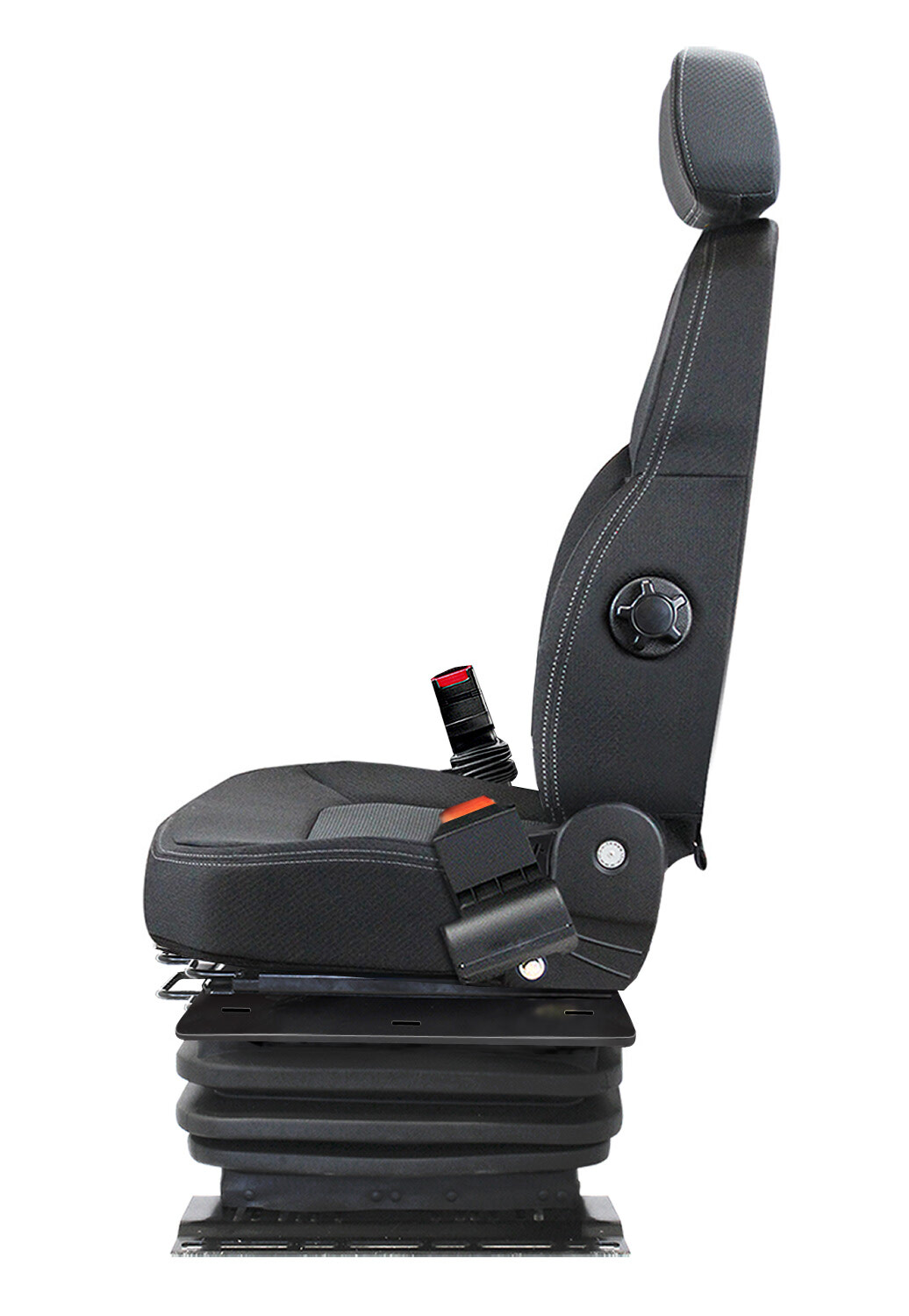

V878C JD3 IV - John Deere Wheel Loader Seat with Dual Side Plate Seat Bracket

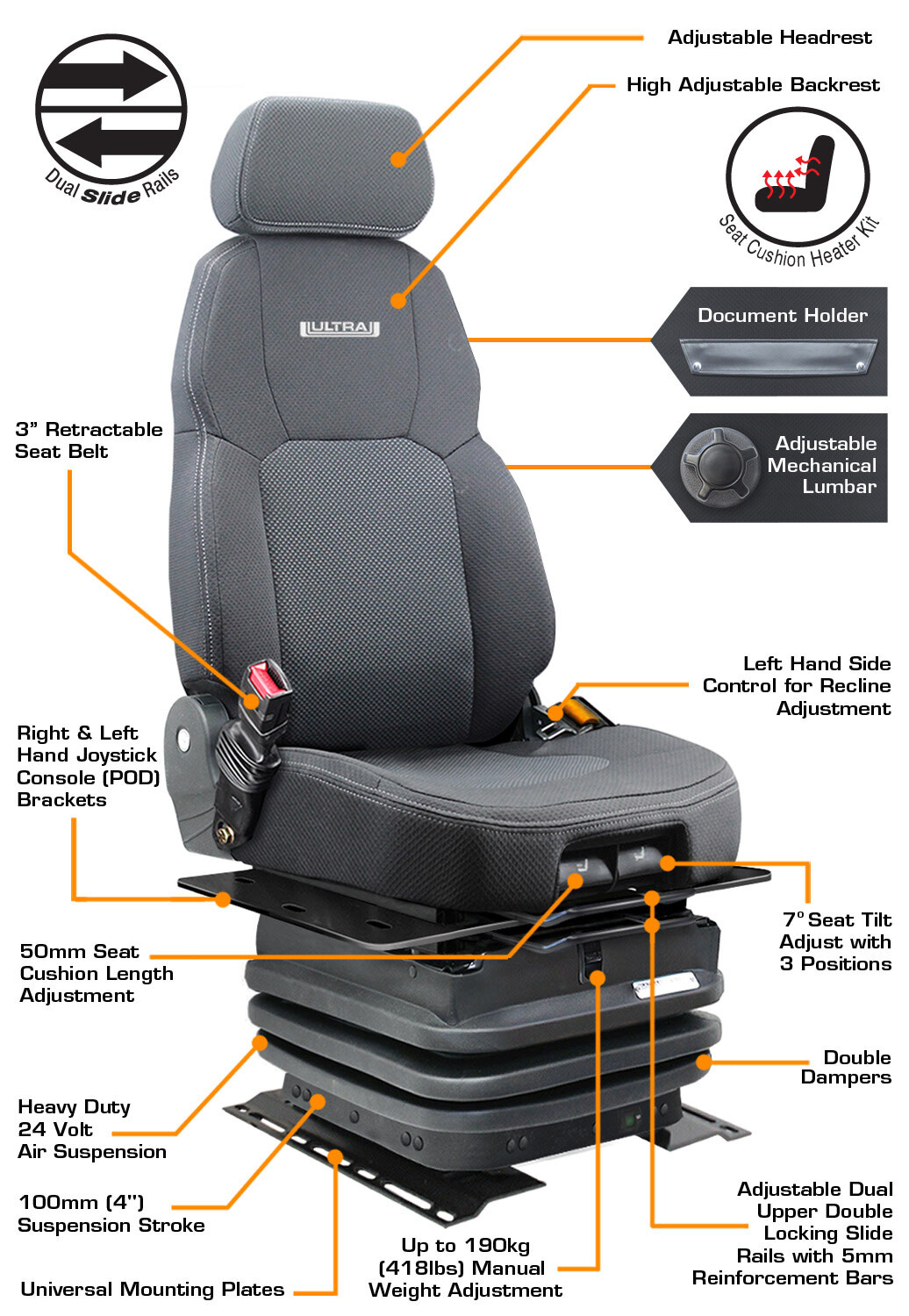

Features

• High Adjustable Backrest
• Adjustable Headrest
• Left Hand Side Control for Recline Adjustment

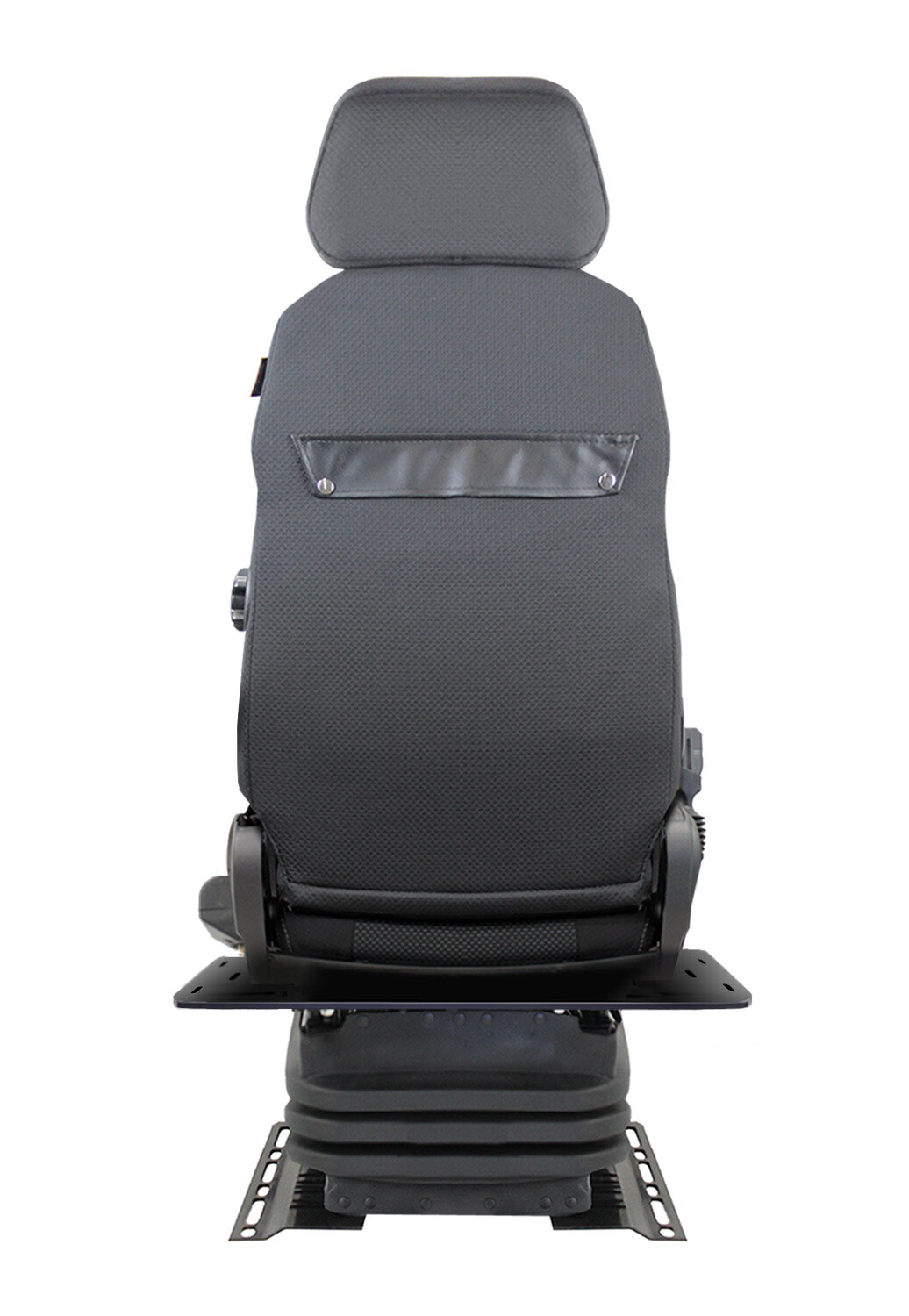

• Document Holder
• Adjustable Mechanical Lumbar
• Double Dampers
• 7° Seat Tilt Adjustment in 3 Positions
• 50mm Seat Cushion Length Adjustment

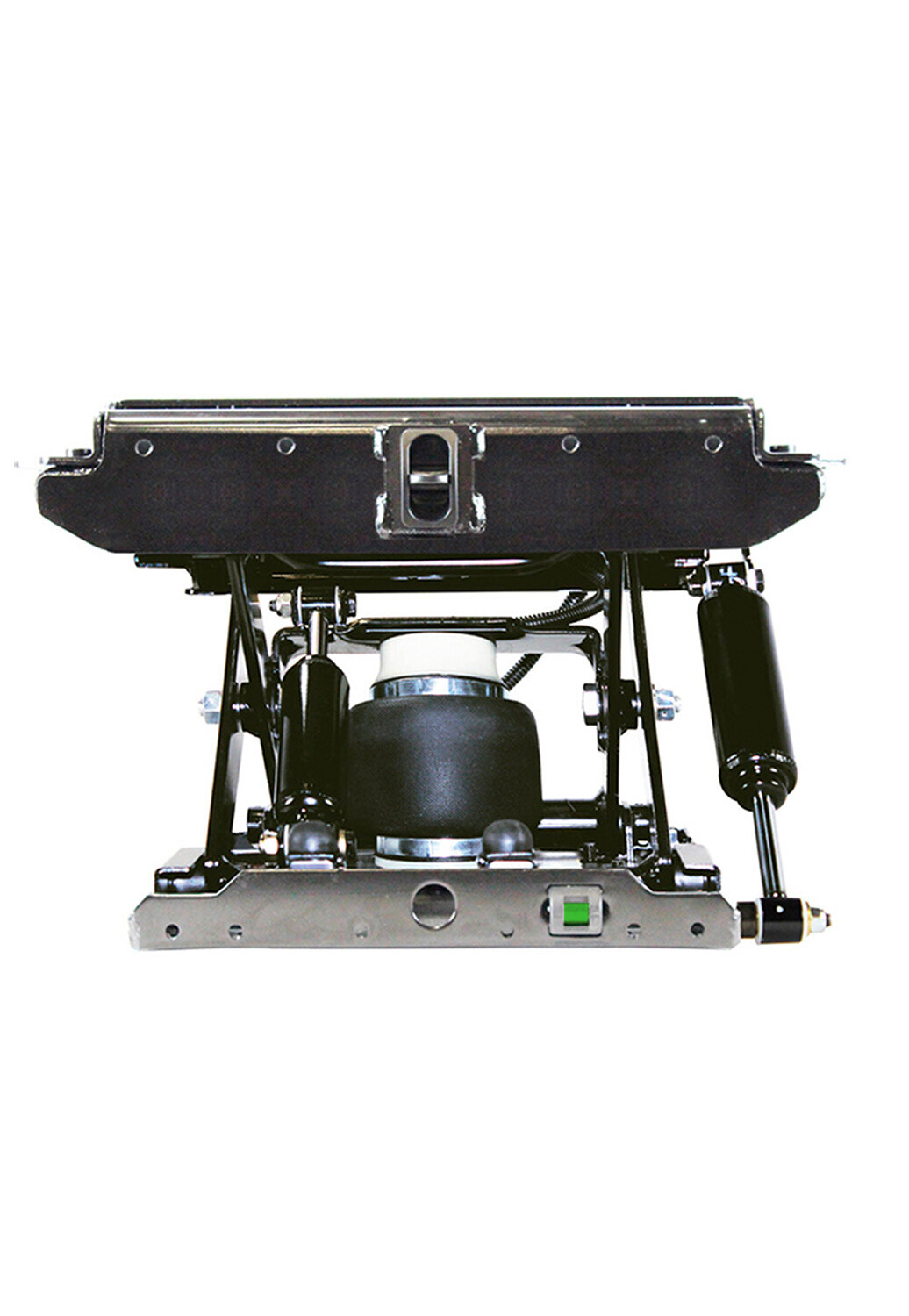

• Heavy Duty 24 Volt Air Suspension

• Up to 190kg (418lbs) Manual Weight Adjustment
• 100mm (4”) Suspension Stroke
• Adjustable Dual Upper and Lower Double Locking Slide Rails with 5mm Reinforcement Bars
• 24 Volt Seat Cushion Heater Kit
• 3" Retractable Orange Seat Belt with 2 Wire Safety Switch (Normally Open)
• Right & Left Hand Console Mounting Bracket

• Universal Mounting Plates

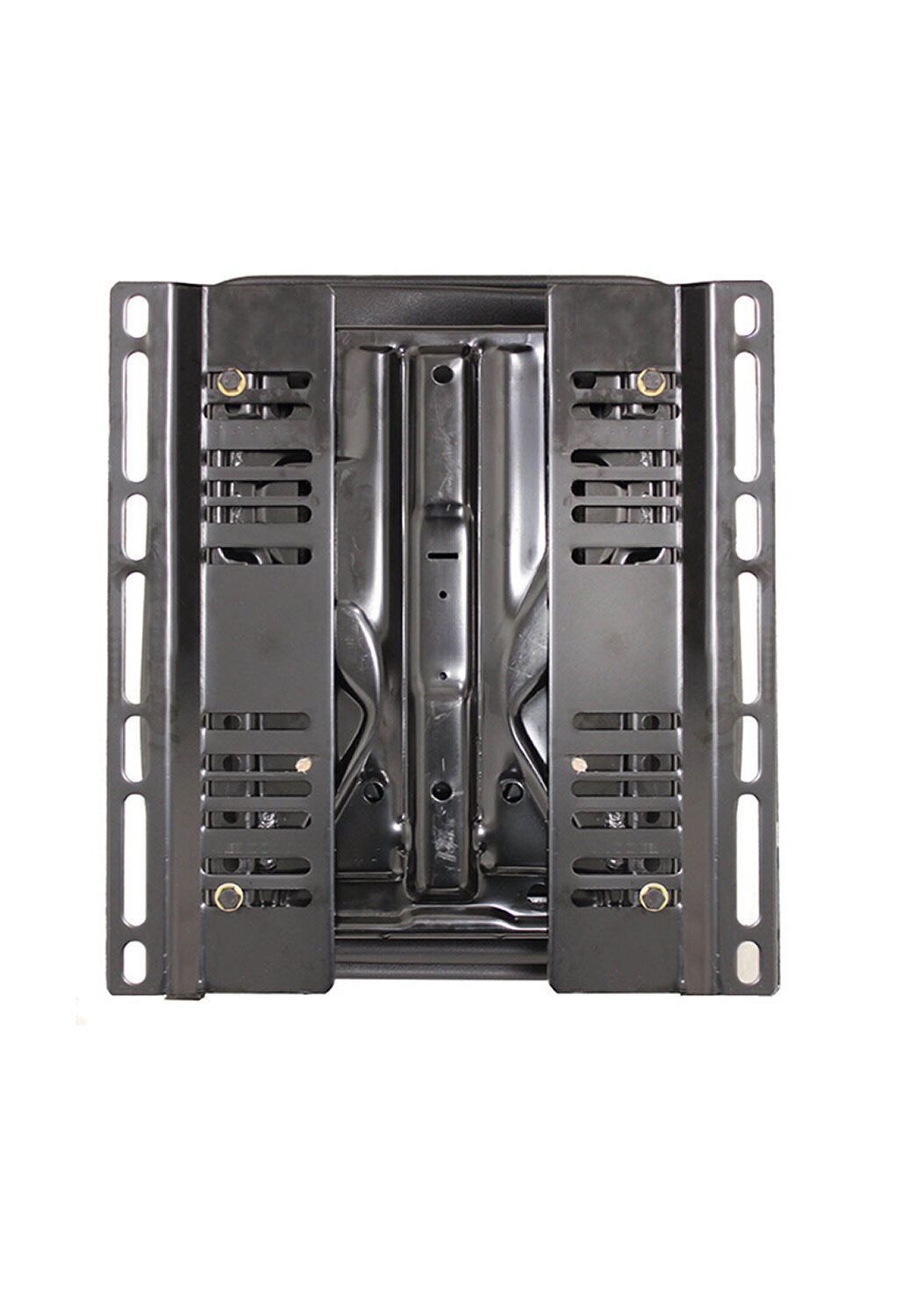

Bolt Pattern

• Side to Side - Adjustable from a Minimum 346mm (13-5/8") to a Maximum 467mm (18-3/8")
• Front to Back - Various up to 406mm (16")

Industry Standards

• Operator Seat Vibration: ISO 7096
• Flammability: FMVSS 302
• Seat Belt Anchor: ISO 6683

Replacement For

• John Deere Model Numbers: 944K
• John Deere Group Numbers: AT392681, AT522502
